Home › Infiniti › 2005 › FX45 › Repair and Diagnosis › Engine Performance › Engine Control System - VK45DE › DTC P0011, P0021: IVT Control › On Board Diagnosis Logic › Notes

On Board Diagnosis Logic: Notes

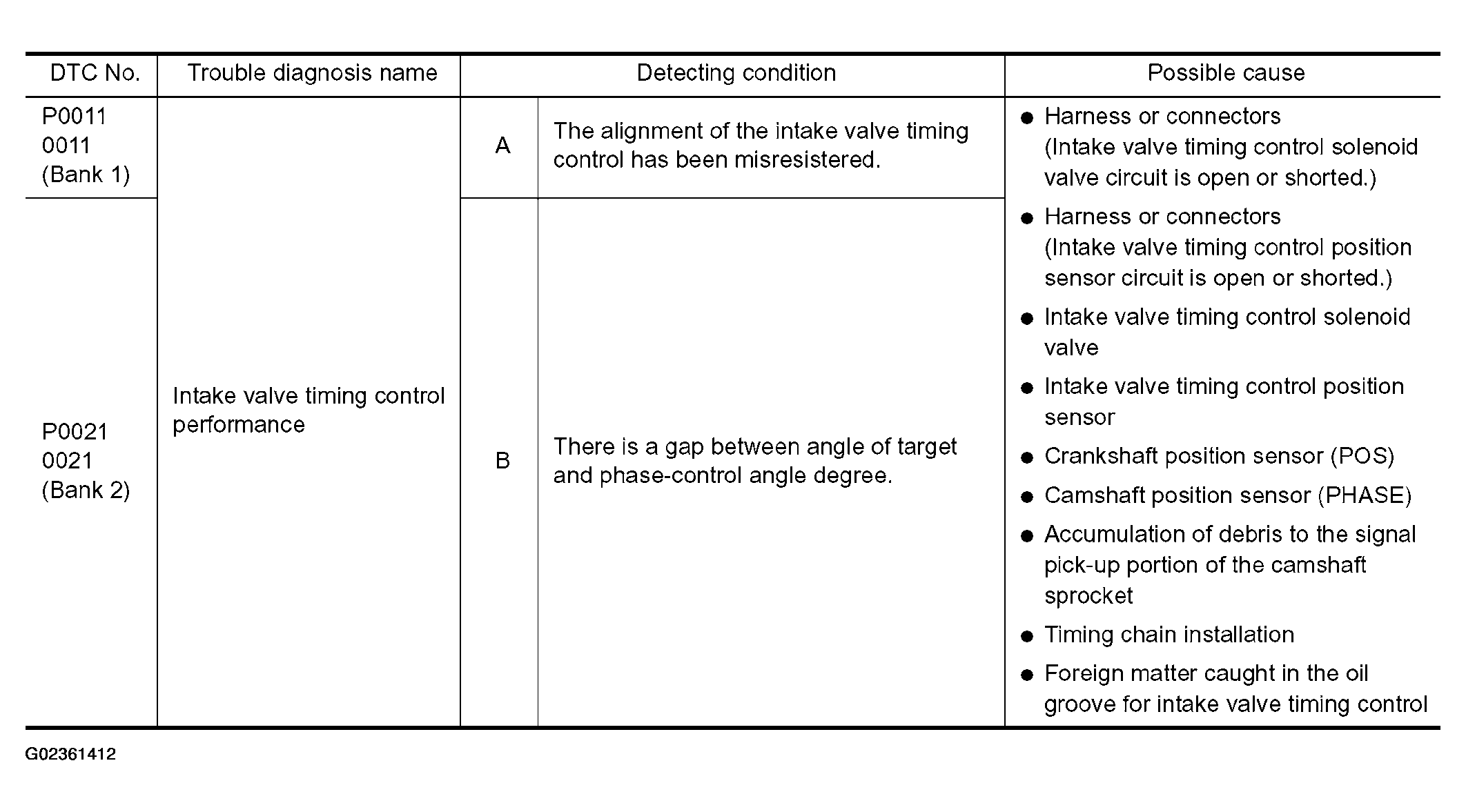

Fig 1: Diagnostic Chart
G02361412Courtesy of NISSAN MOTOR CO., U.S.A.
