Repair and Diagnosis
›
Engine Performance
›
Engine Control System - VK45DE
›
DTC P0171, P0174: Fuel Injection System Function
›
Wiring Diagram
›
Bank 2
Bank 2

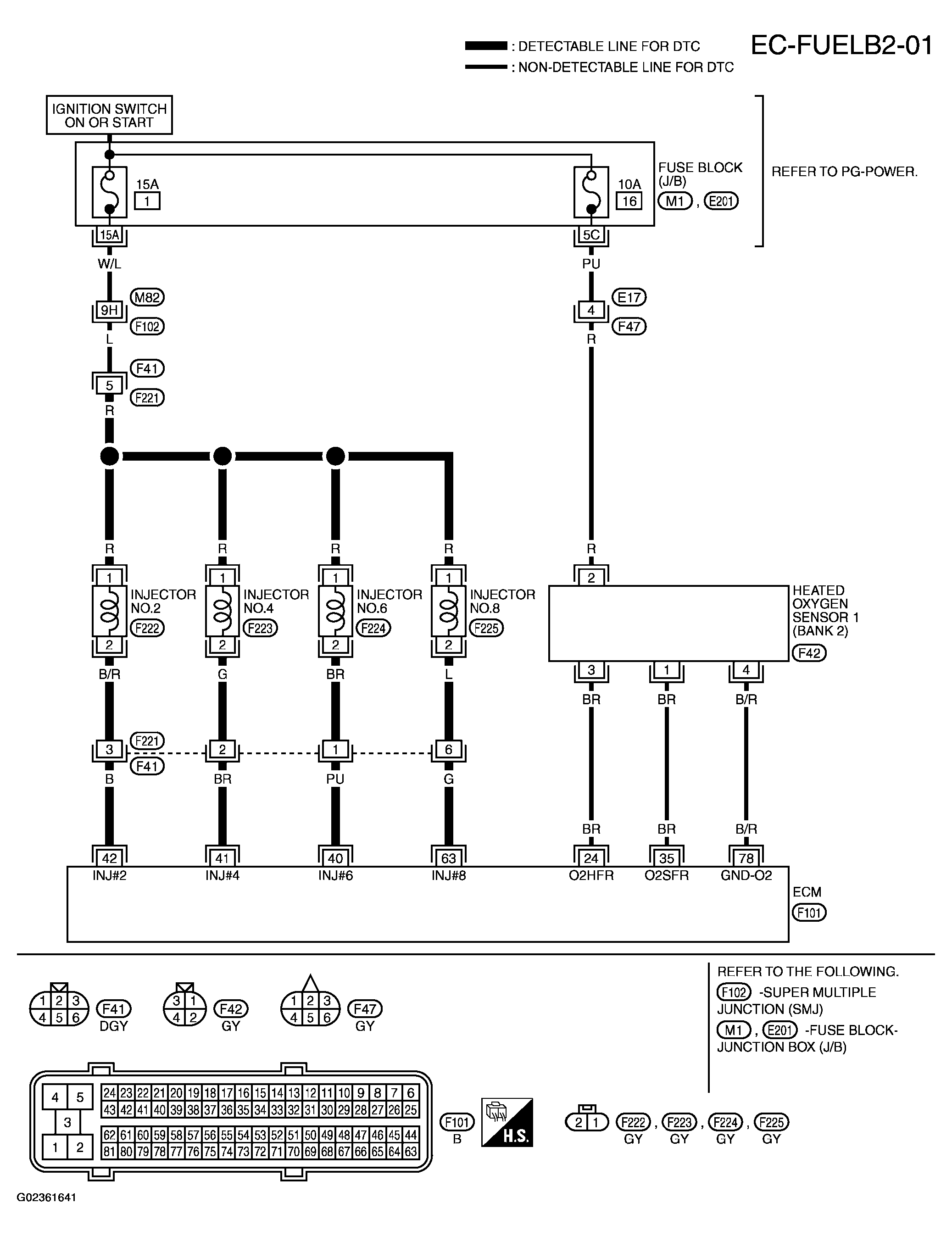

Fig 1: Wiring Diagram EC-FUELB2-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
