ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

Fig 1: ECM Data And Reference Value Chart (1 Of 9)

G02361342

Courtesy of NISSAN MOTOR CO., U.S.A.

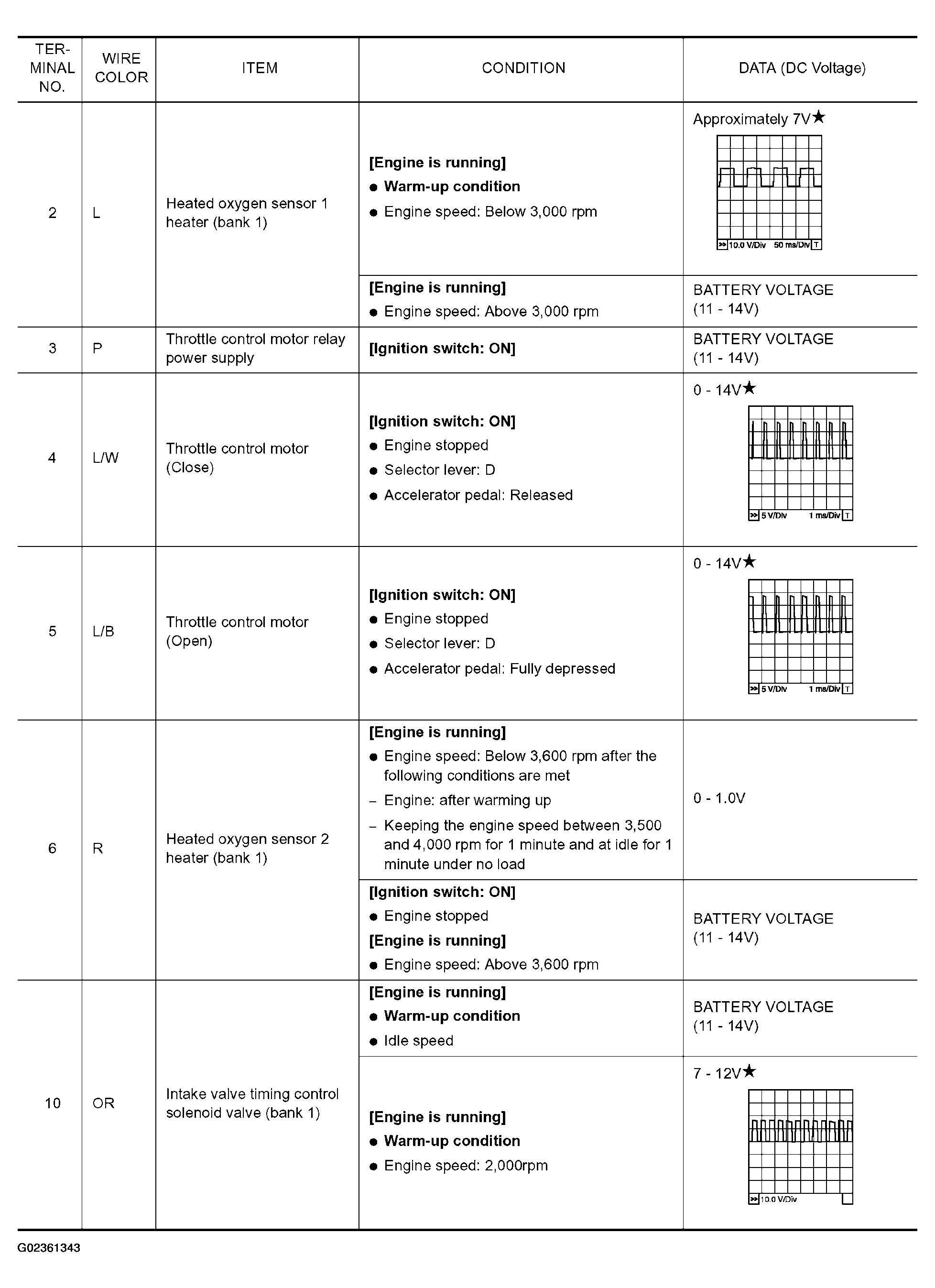

Fig 2: ECM Data And Reference Value Chart (2 Of 9)

G02361343

Courtesy of NISSAN MOTOR CO., U.S.A.

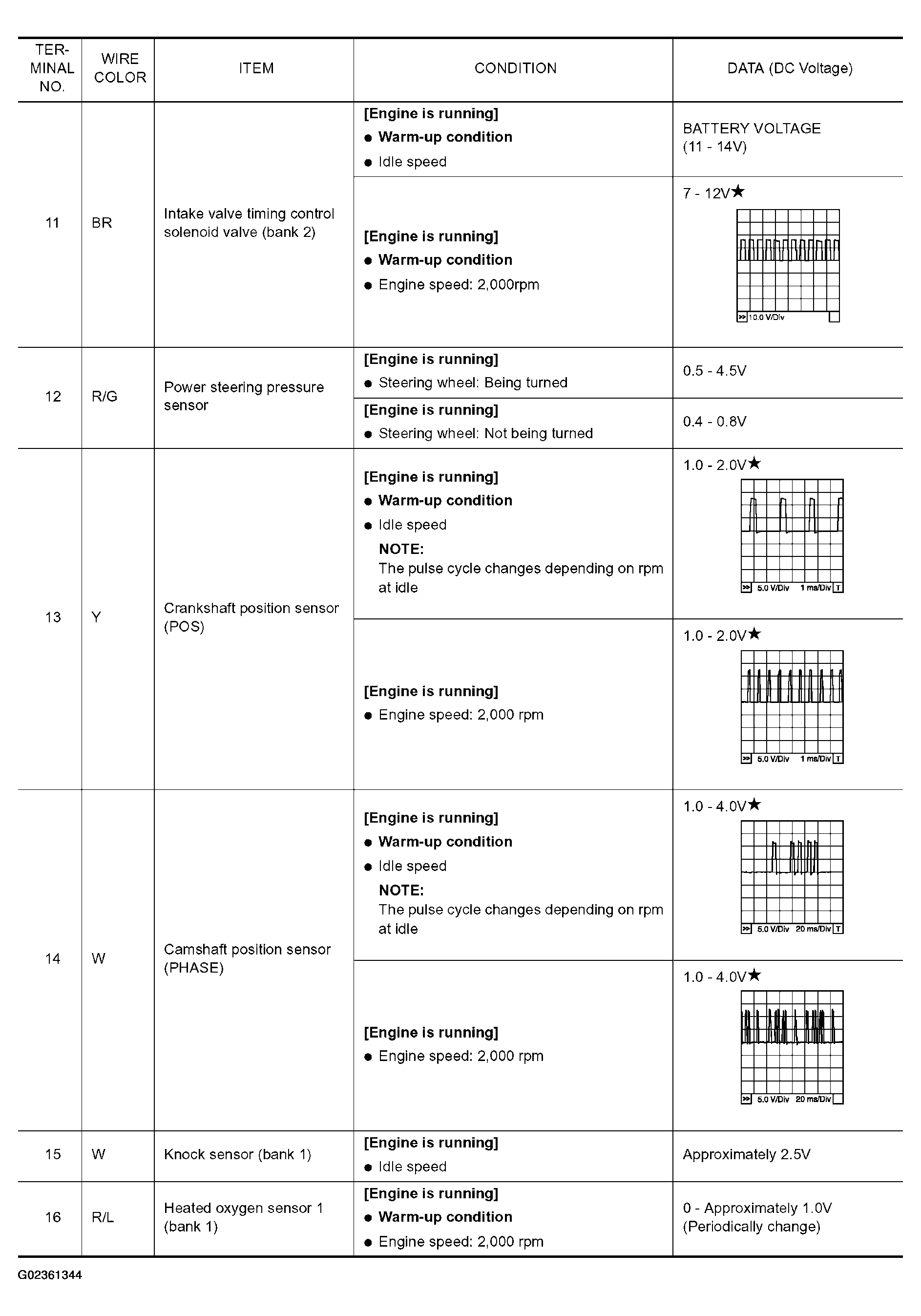

Fig 3: ECM Data And Reference Value Chart (3 Of 9)

G02361344

Courtesy of NISSAN MOTOR CO., U.S.A.

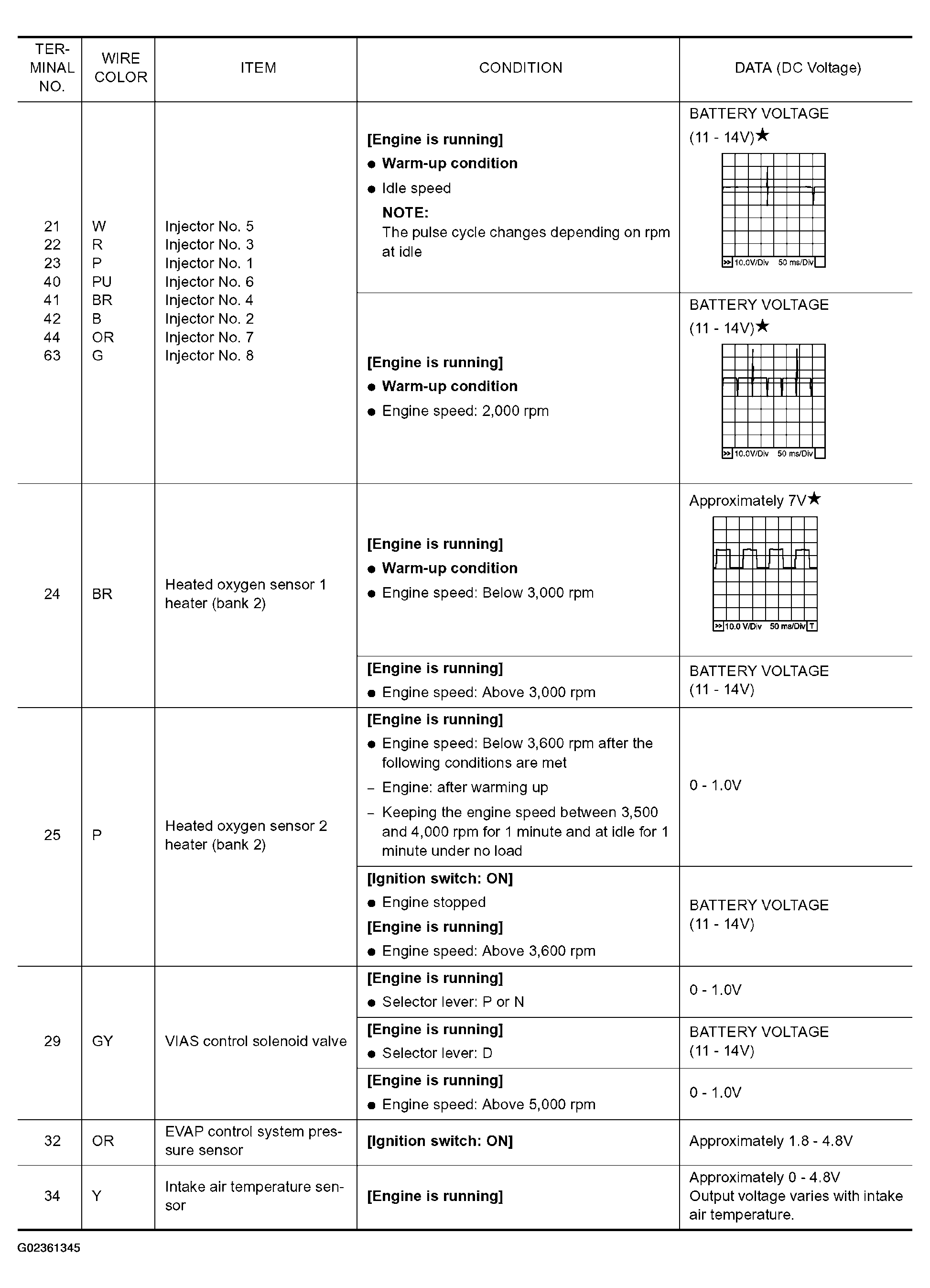

Fig 4: ECM Data And Reference Value Chart (4 Of 9)

G02361345

Courtesy of NISSAN MOTOR CO., U.S.A.

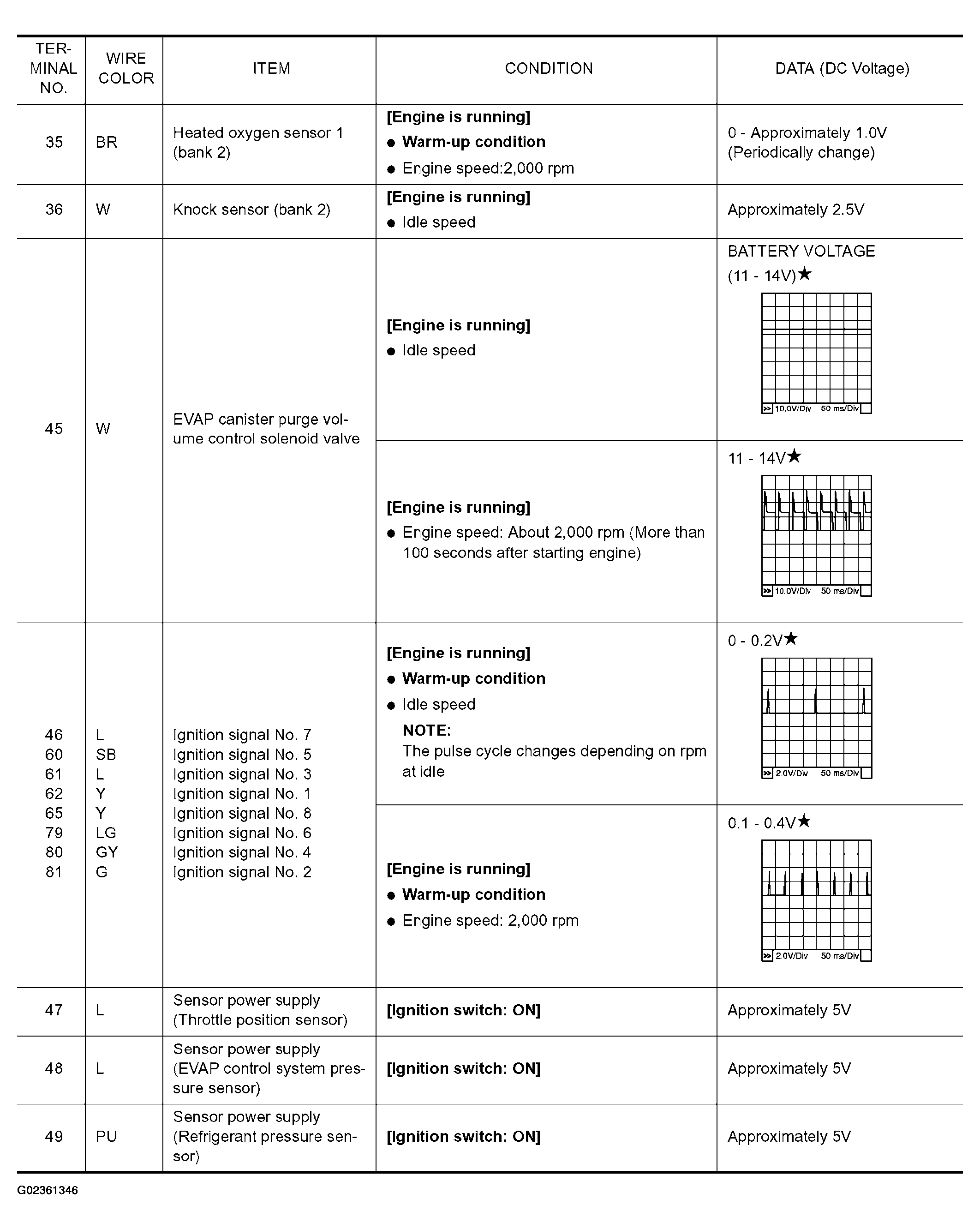

Fig 5: ECM Data And Reference Value Chart (5 Of 9)

G02361346

Courtesy of NISSAN MOTOR CO., U.S.A.

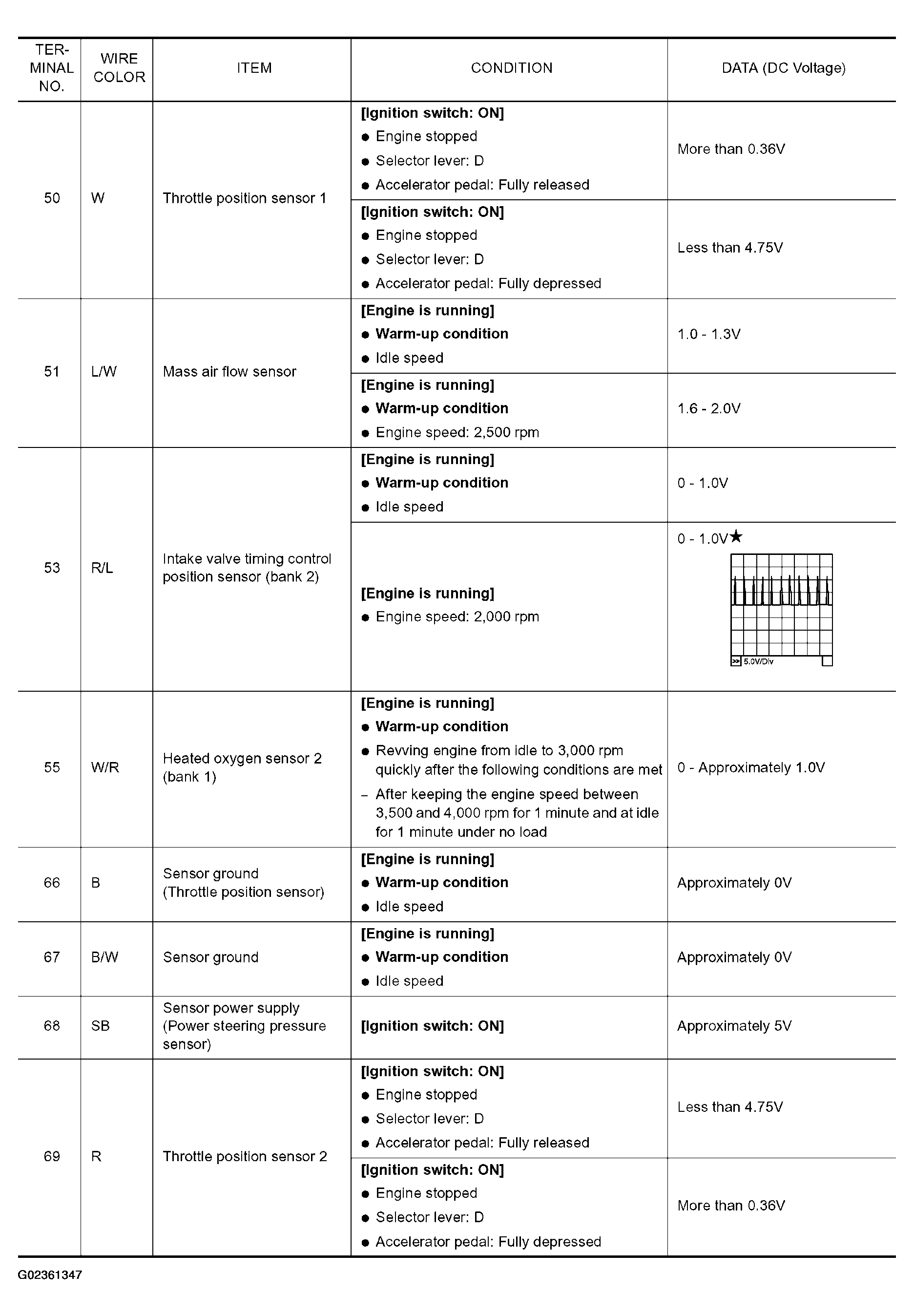

Fig 6: ECM Data And Reference Value Chart (6 Of 9)

G02361347

Courtesy of NISSAN MOTOR CO., U.S.A.

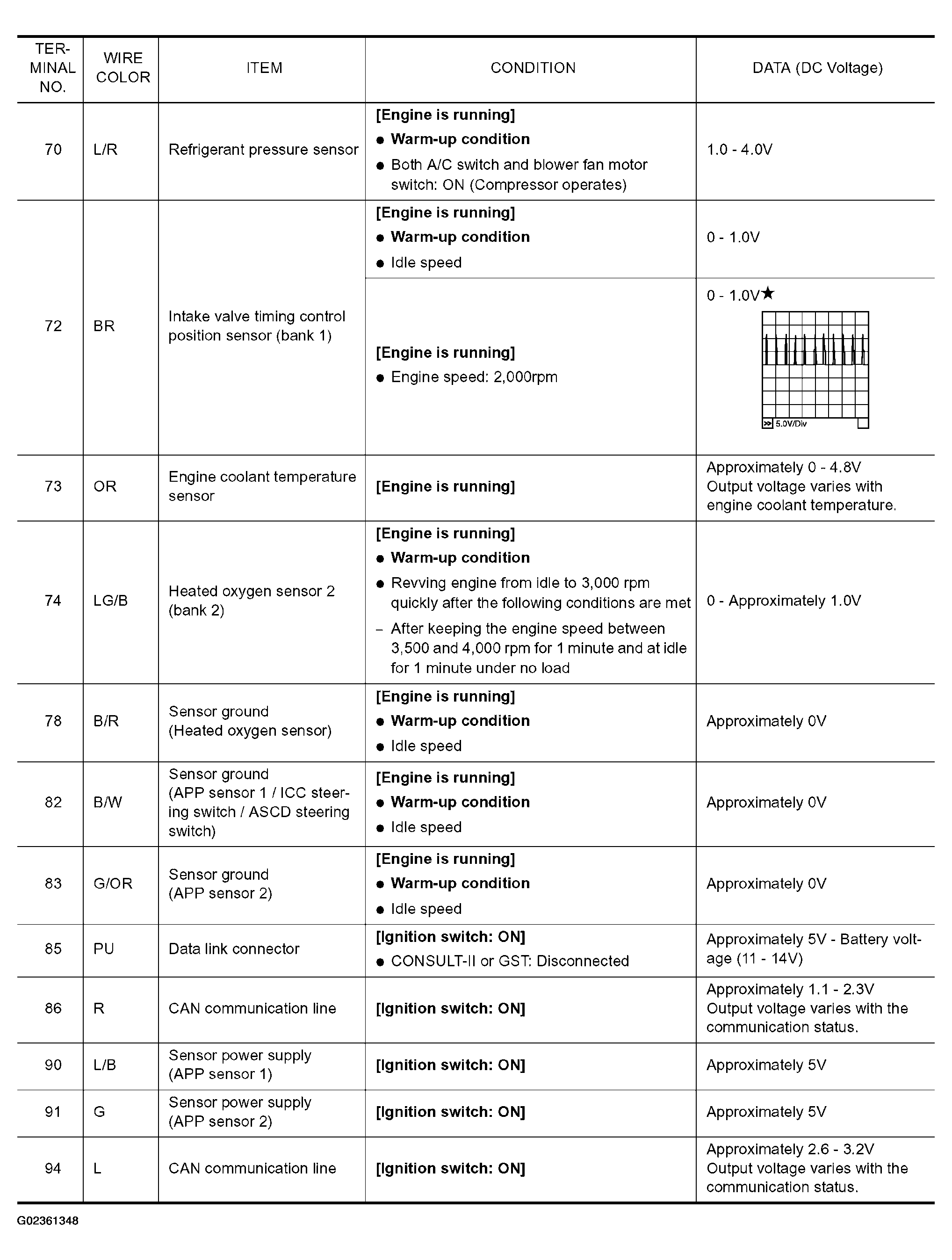

Fig 7: ECM Data And Reference Value Chart (7 Of 9)

G02361348

Courtesy of NISSAN MOTOR CO., U.S.A.

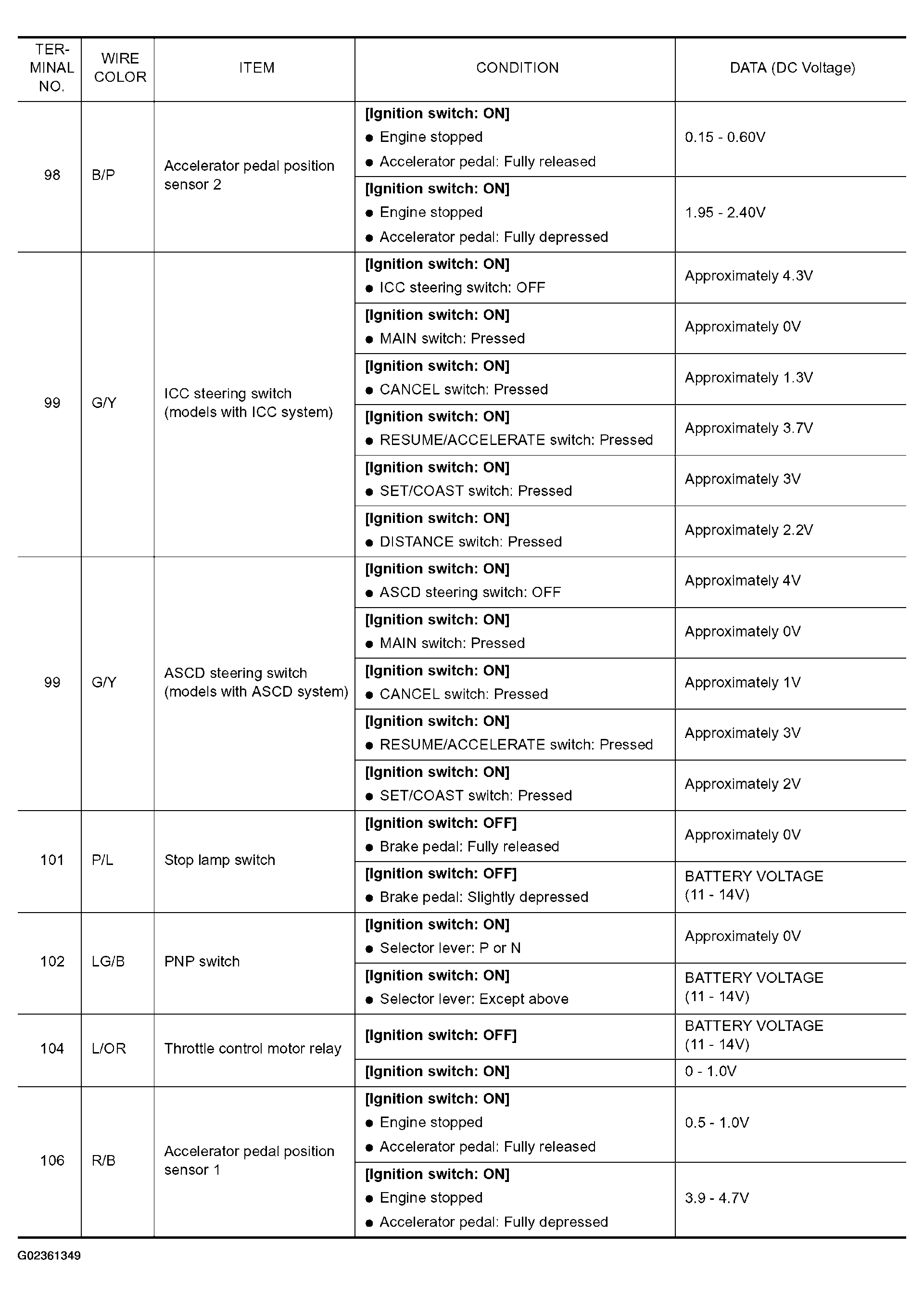

Fig 8: ECM Data And Reference Value Chart (8 Of 9)

G02361349

Courtesy of NISSAN MOTOR CO., U.S.A.

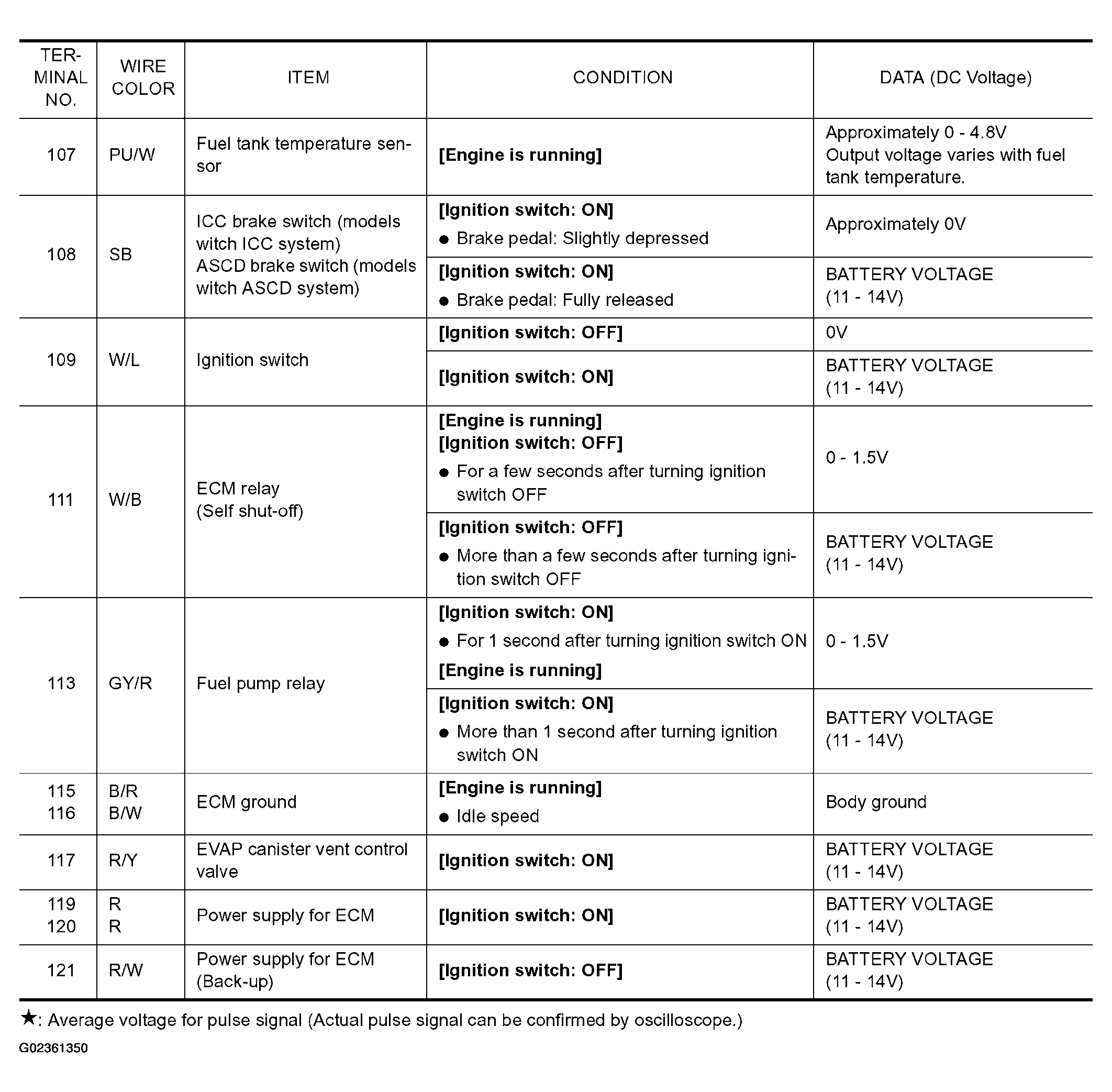

Fig 9: ECM Data And Reference Value Chart (9 Of 9)

G02361350

Courtesy of NISSAN MOTOR CO., U.S.A.
