Engine Control Component Parts Location

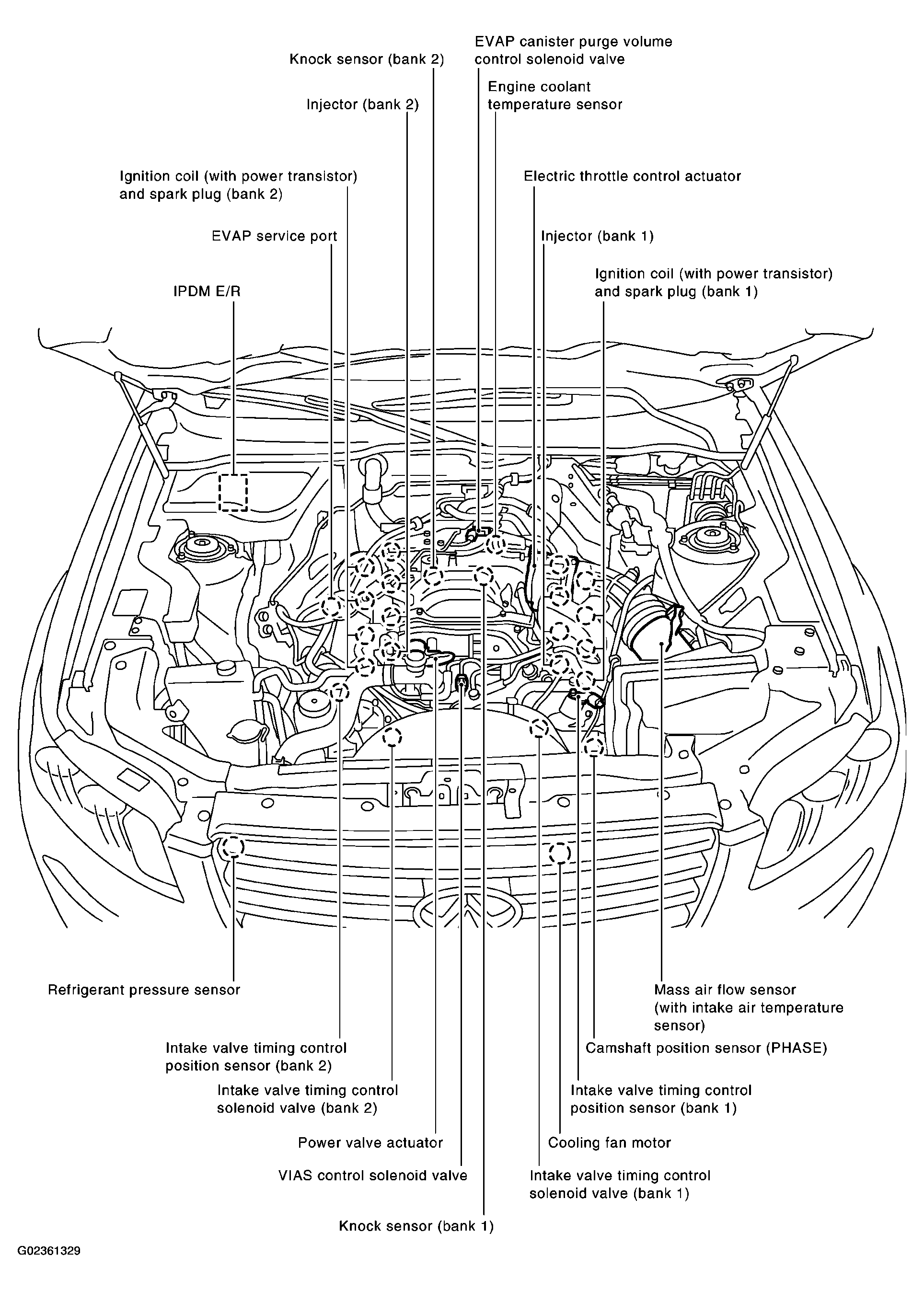

Fig 1: Identifying Location Engine Control Component Parts (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

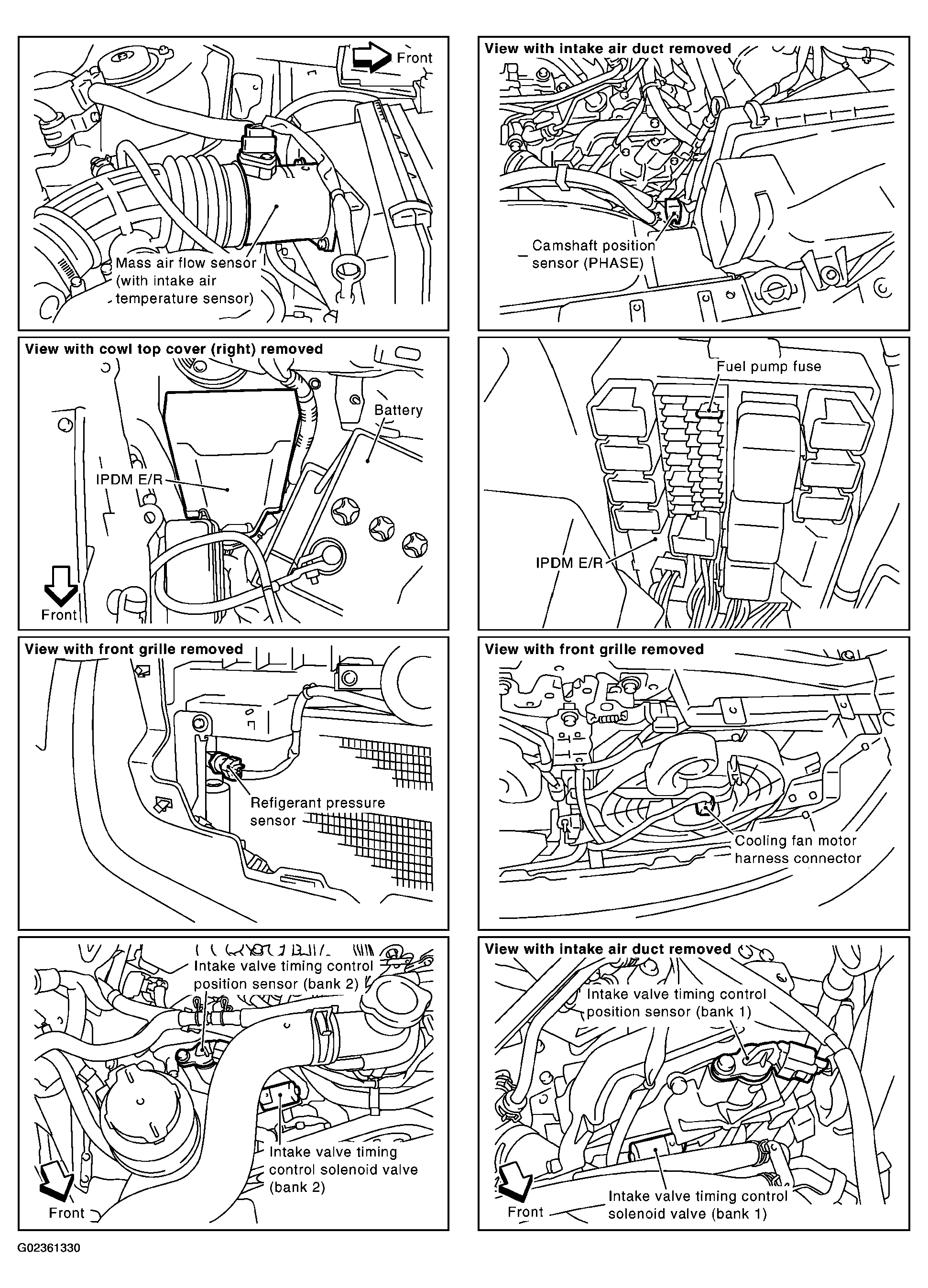

Fig 2: Identifying Location Engine Control Component Parts (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

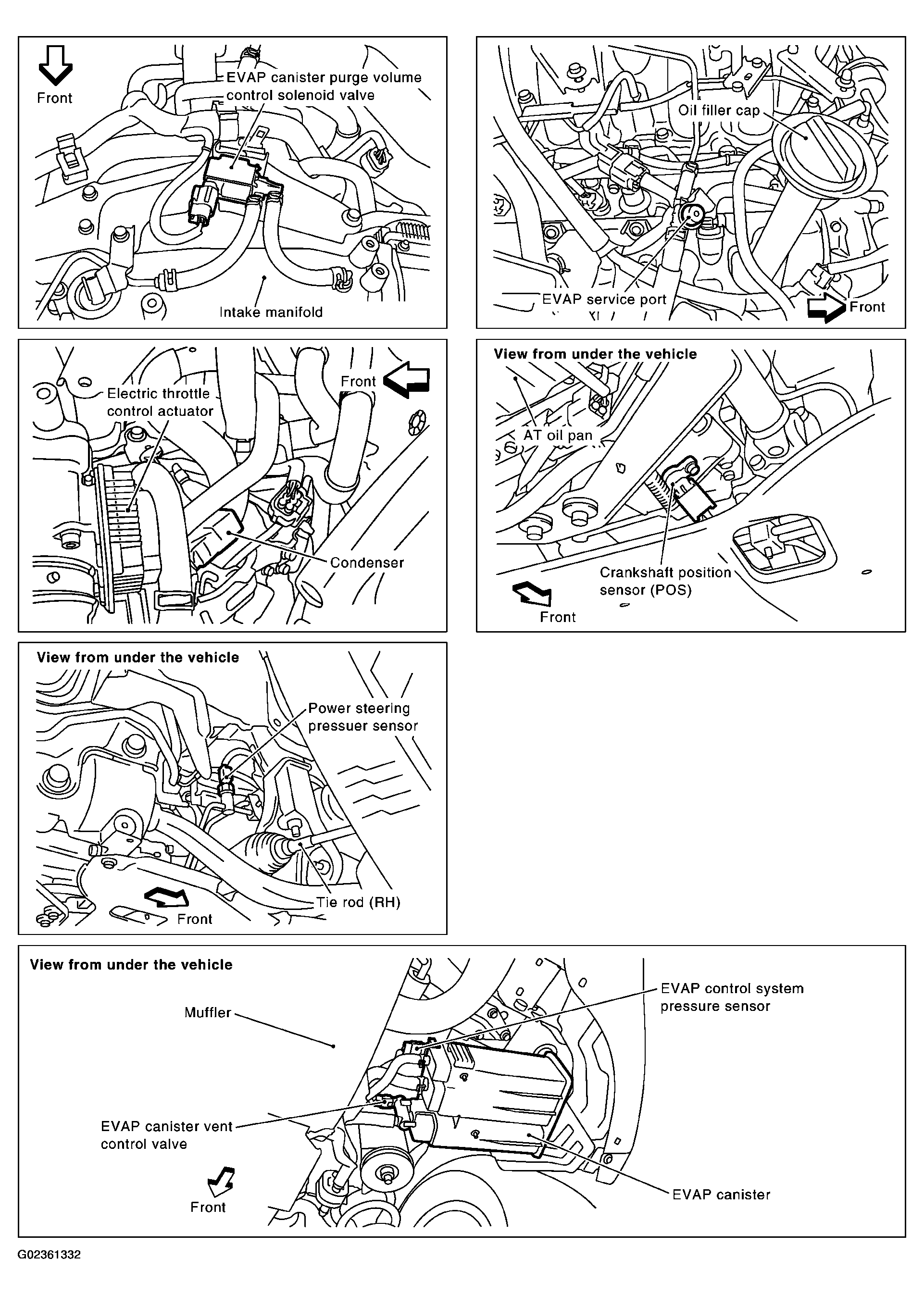

Fig 3: Identifying Location Engine Control Component Parts (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

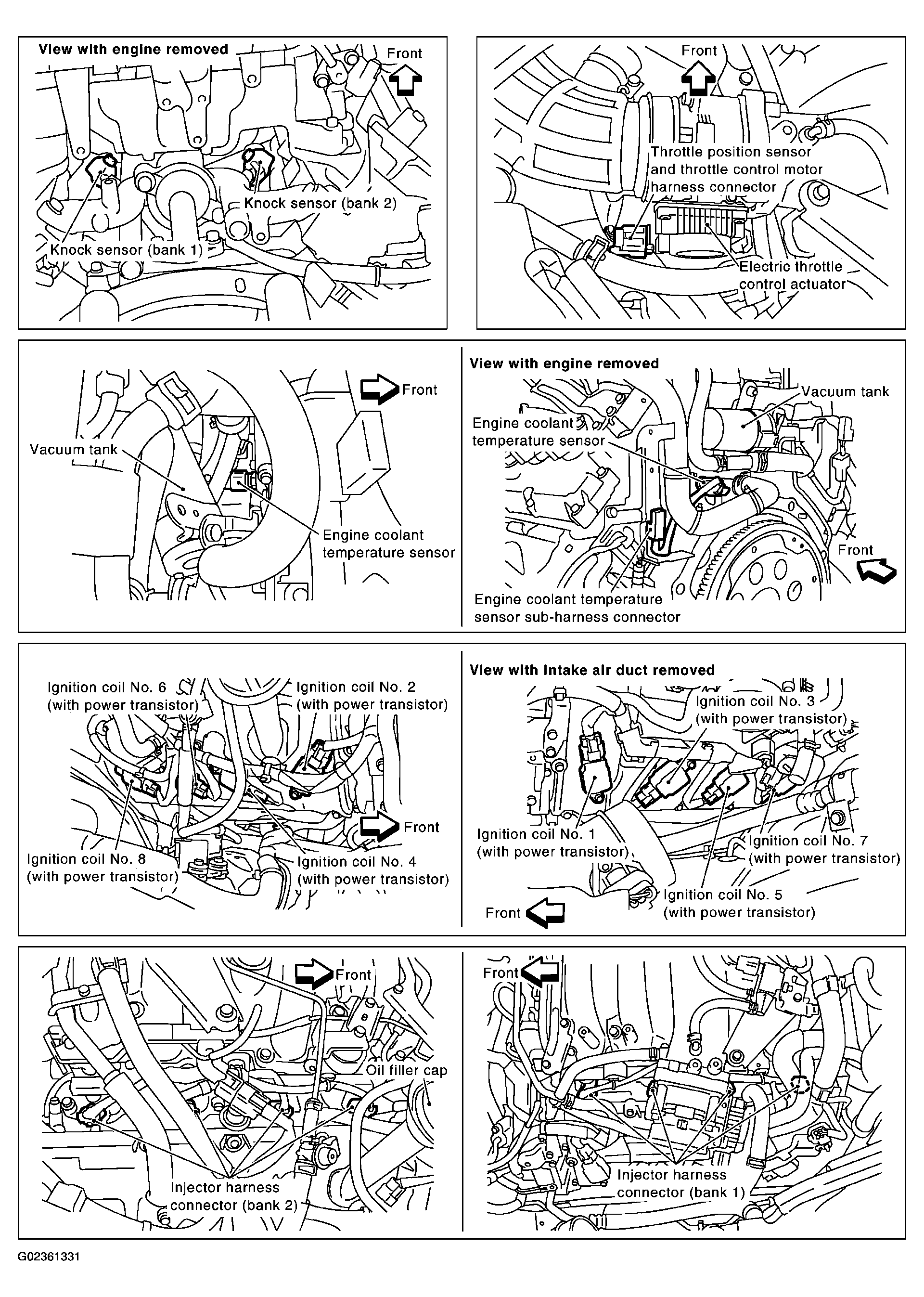

Fig 4: Identifying Location Engine Control Component Parts (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

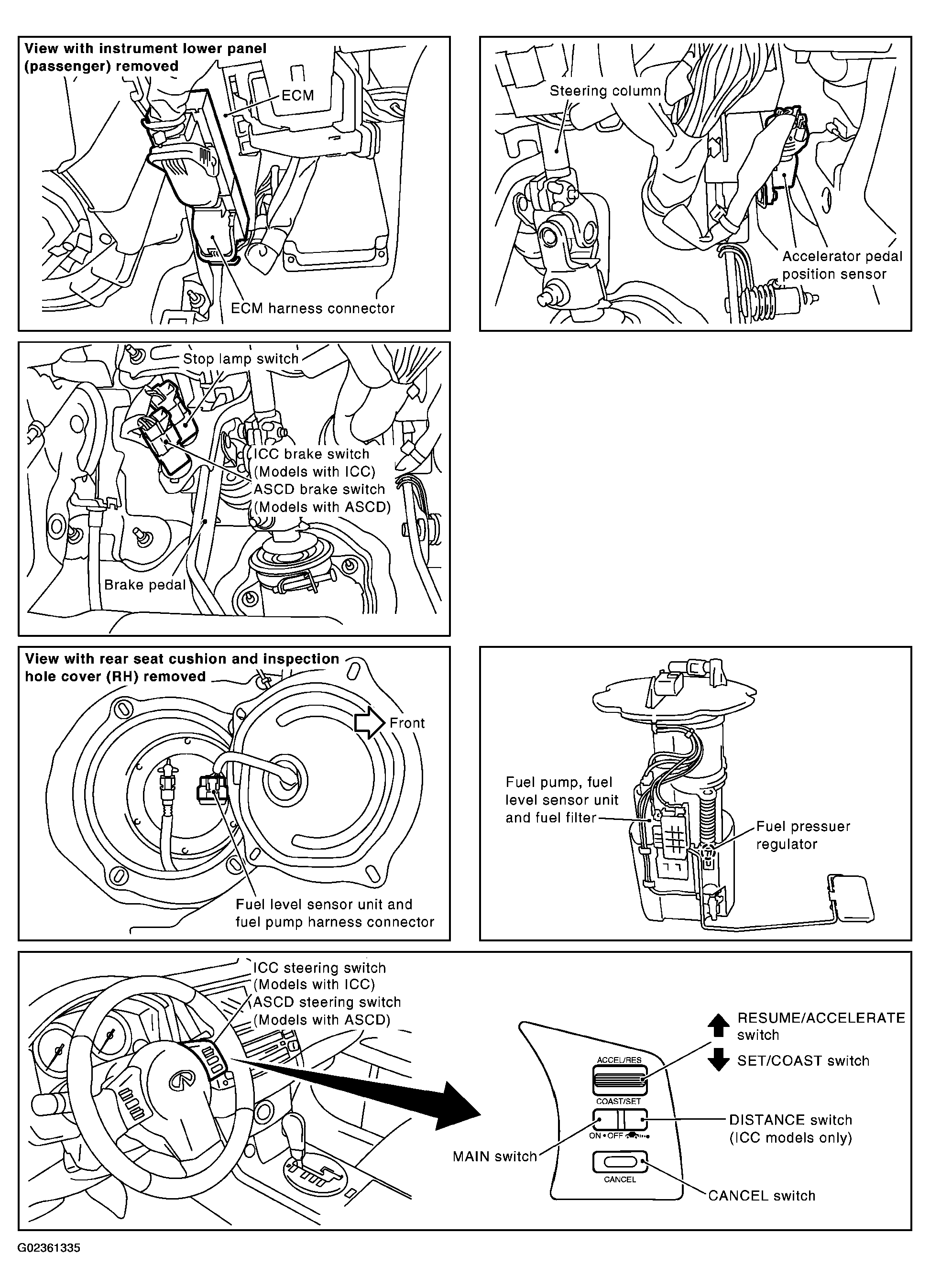

Fig 5: Identifying Location Engine Control Component Parts (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

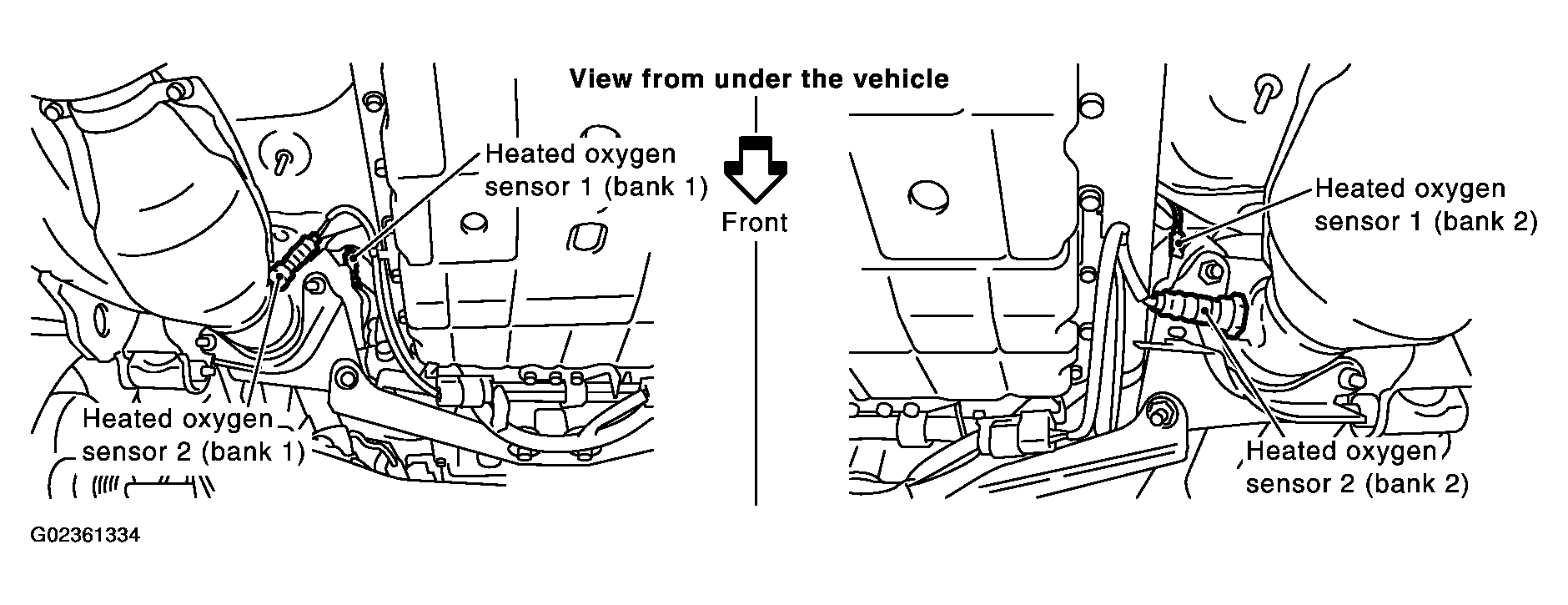

Fig 6: Identifying Location Engine Control Component Parts (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

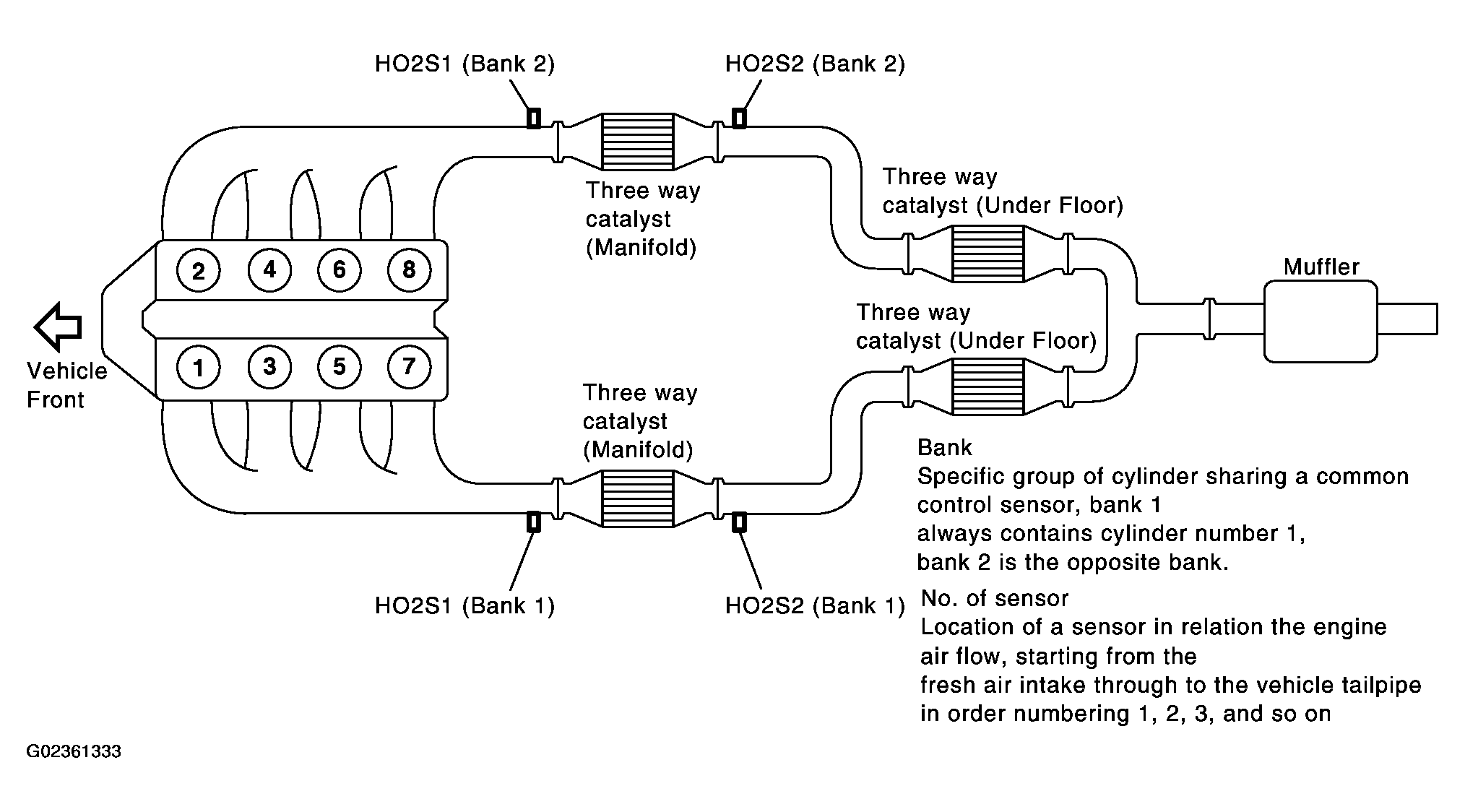

Fig 7: Identifying Location Engine Control Component Parts (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
