Disassembly and Assembly: Disassembly

Remove all parts from jacket tube assembly.

• When remove tilt lever, perform as shown in the figure.

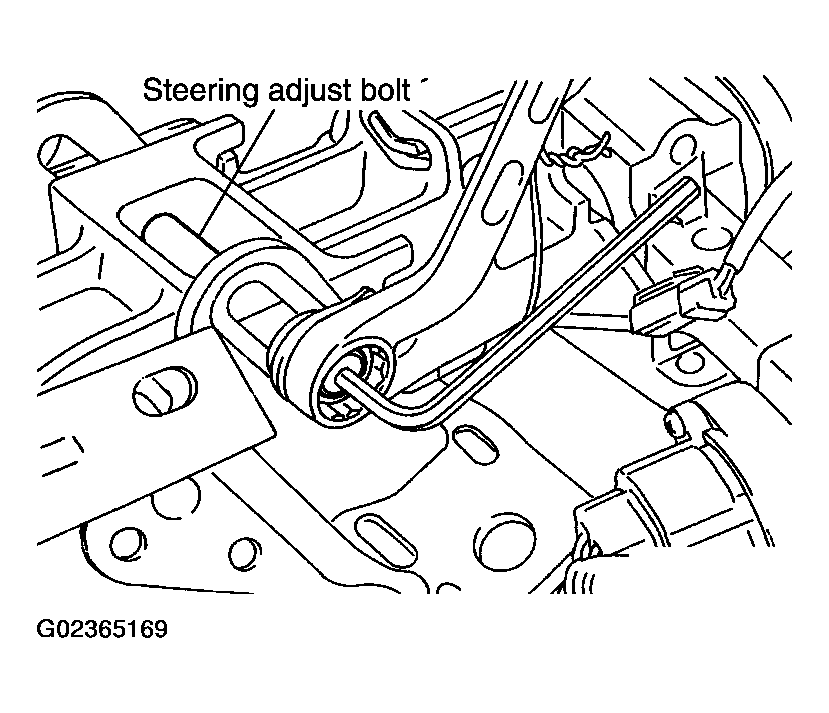

  Fig 1: Removing Tilt Lever And All Parts From Jacket Tube Assembly

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When remove telescopic lever, perform as shown in the figure.

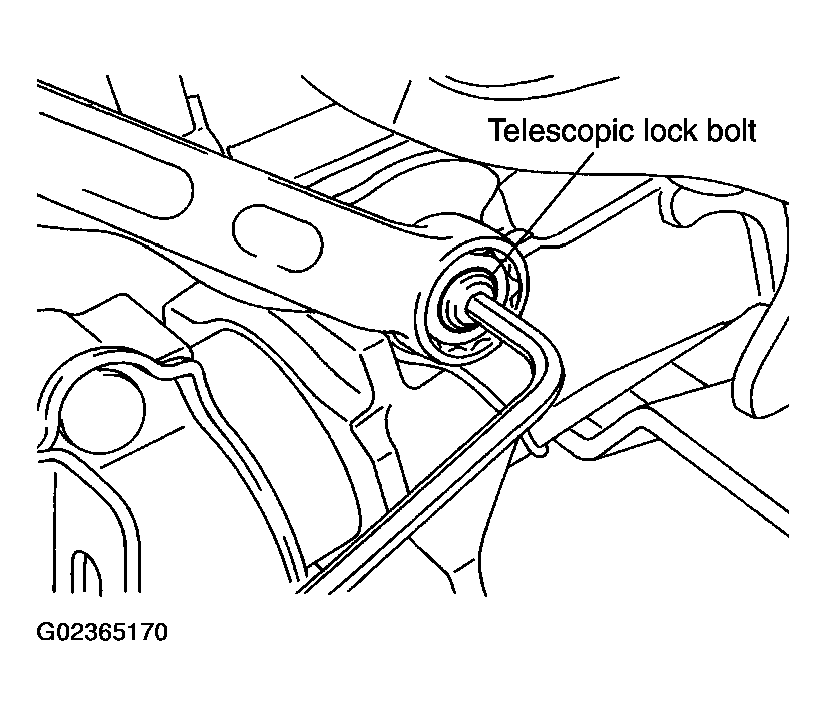

  Fig 2: Removing Telescopic Lock Bolt And Lever

  Courtesy of NISSAN MOTOR CO., U.S.A.

Disassemble the parts from jacket tube. The parts to be disassembled are shown in the figure.
