Control System Diagram
Control System Diagram

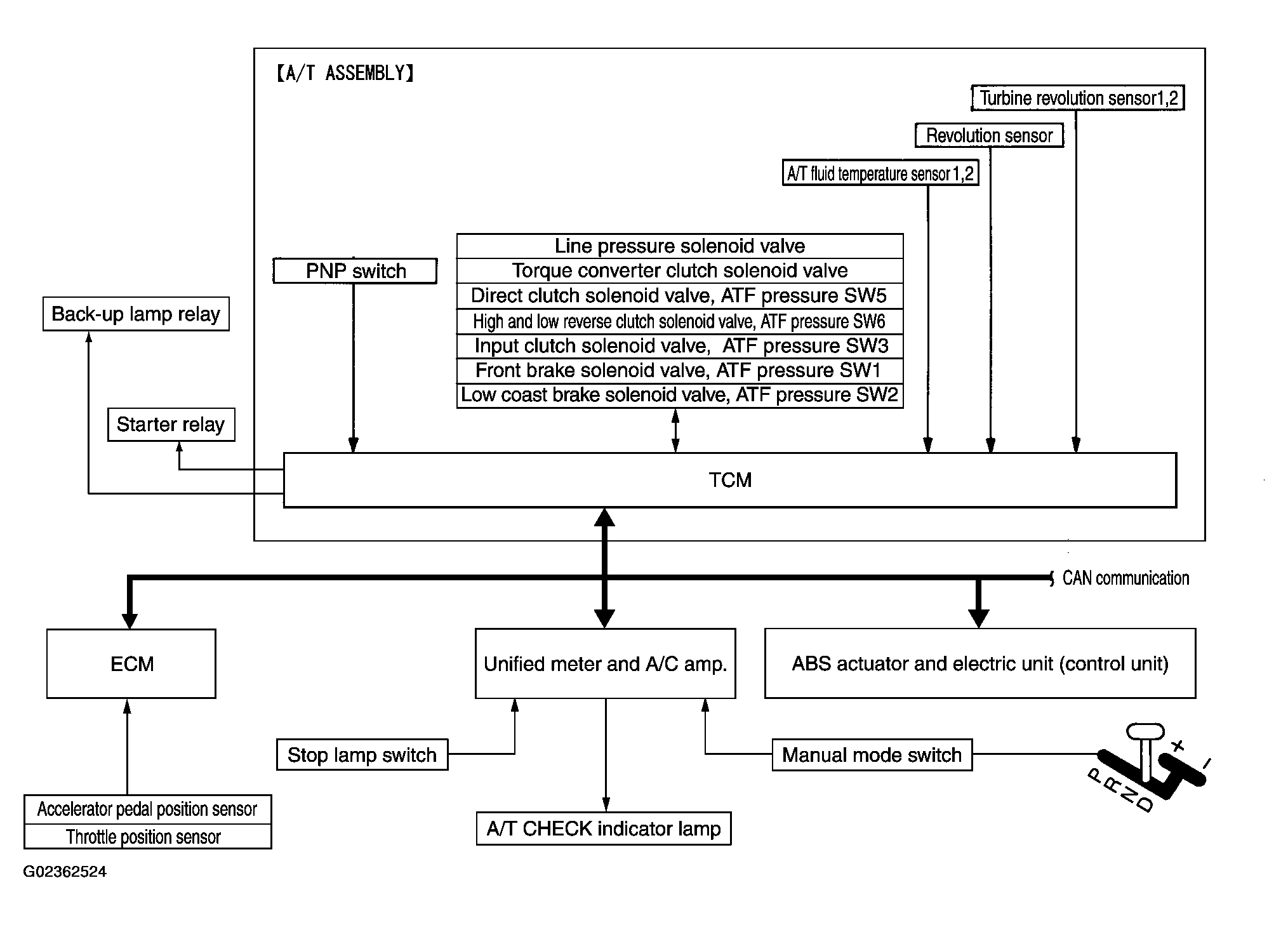

Fig 1: TCM Function - Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
