Direct Clutch: Disassembly

  1. Using a flat-bladed screwdriver, remove snap ring from direct clutch drum.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.

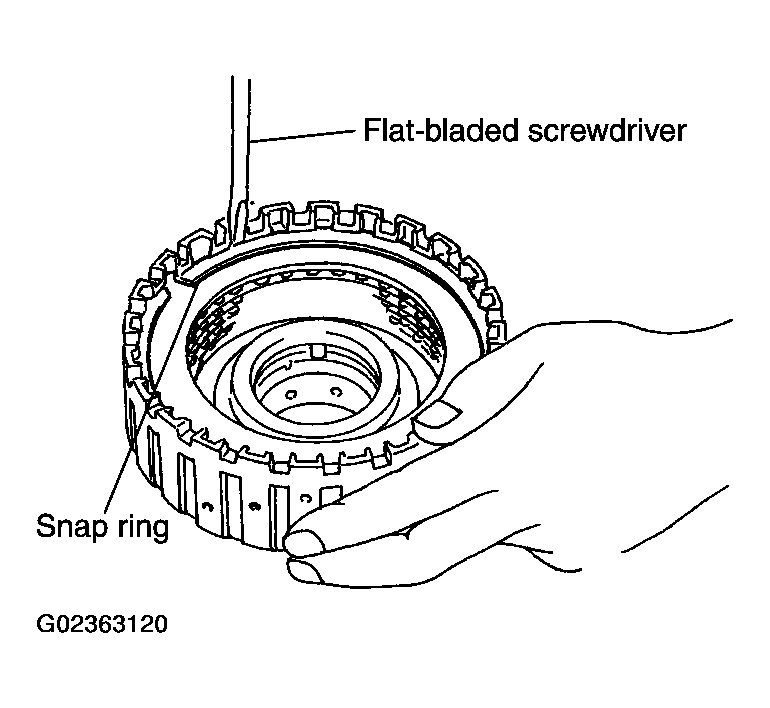

    Fig 1: Removing Snap Ring From Direct Clutch Drum
    G02363120Courtesy of NISSAN MOTOR CO., U.S.A.
