Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

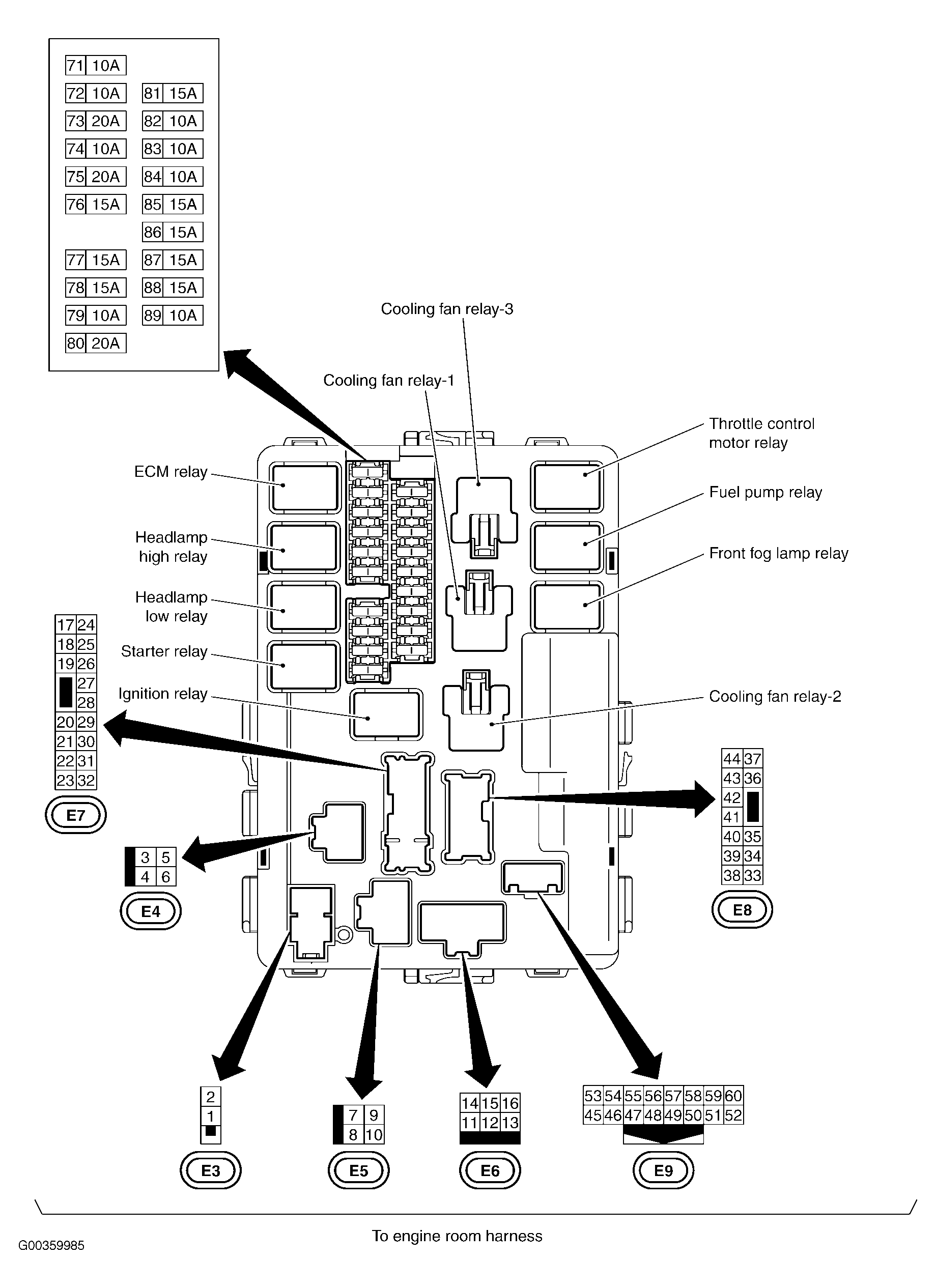

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00359985

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

G00359986

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Compartment

G00359987

Courtesy of NISSAN MOTOR CO., U.S.A.

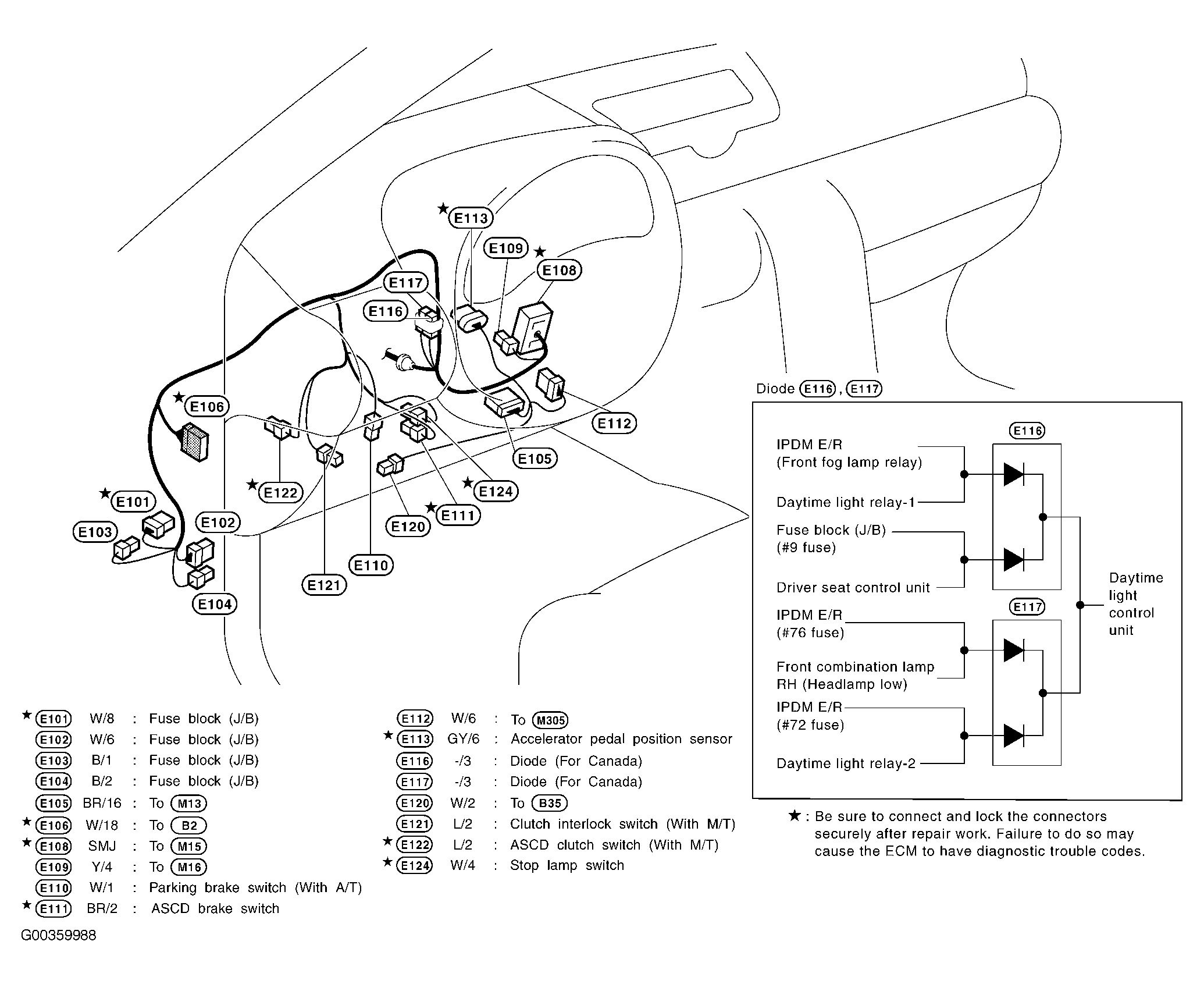

Fig 4: Left Side Of Dash

G00359988

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Side Of Engine Compartment (2WD)

G00263018

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Vehicle Overview

G00359992

Courtesy of NISSAN MOTOR CO., U.S.A.

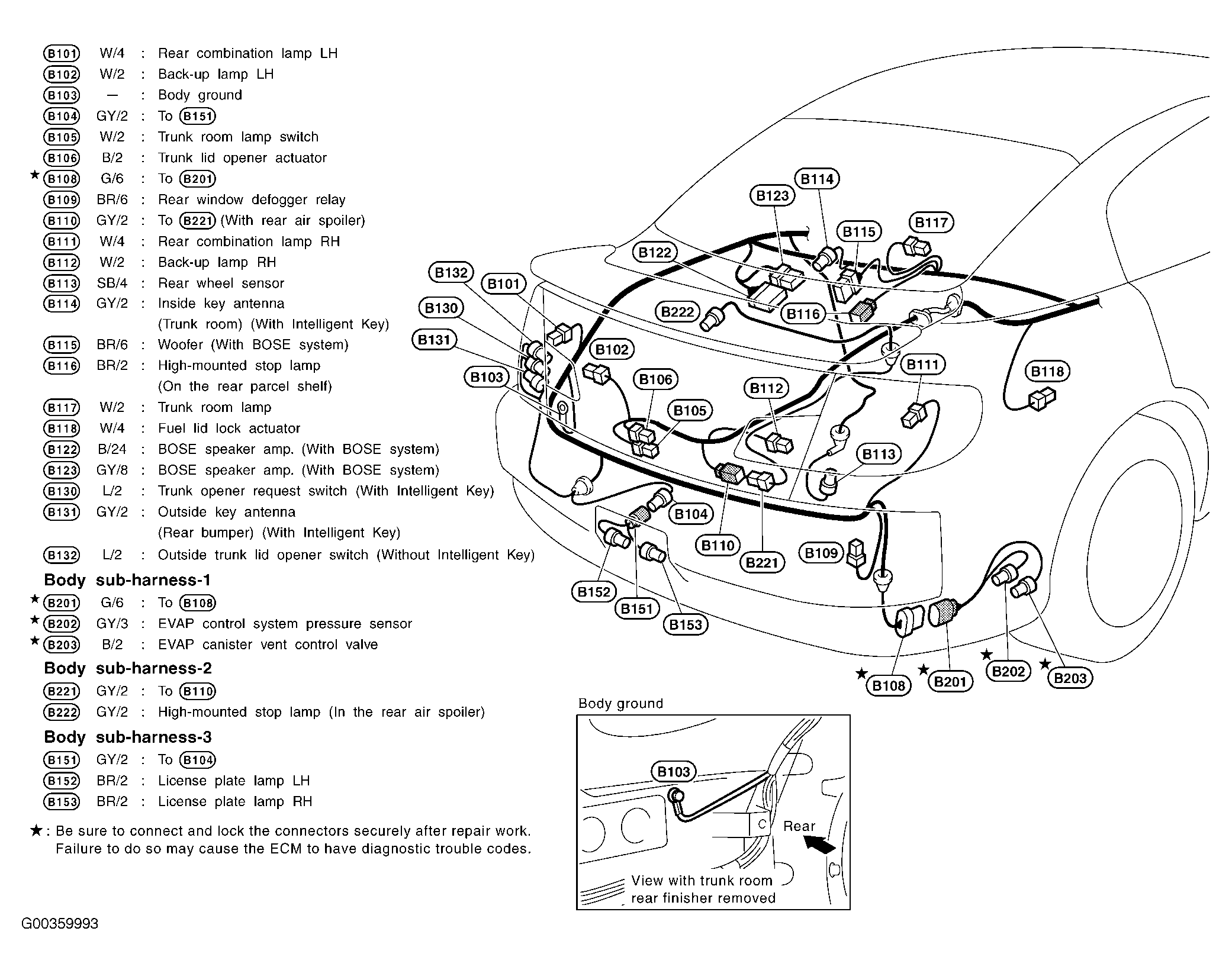

Fig 7: Rear Of Vehicle

G00359993

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Right Side Of Vehicle

G00263024

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Roof

G00263025

Courtesy of NISSAN MOTOR CO., U.S.A.

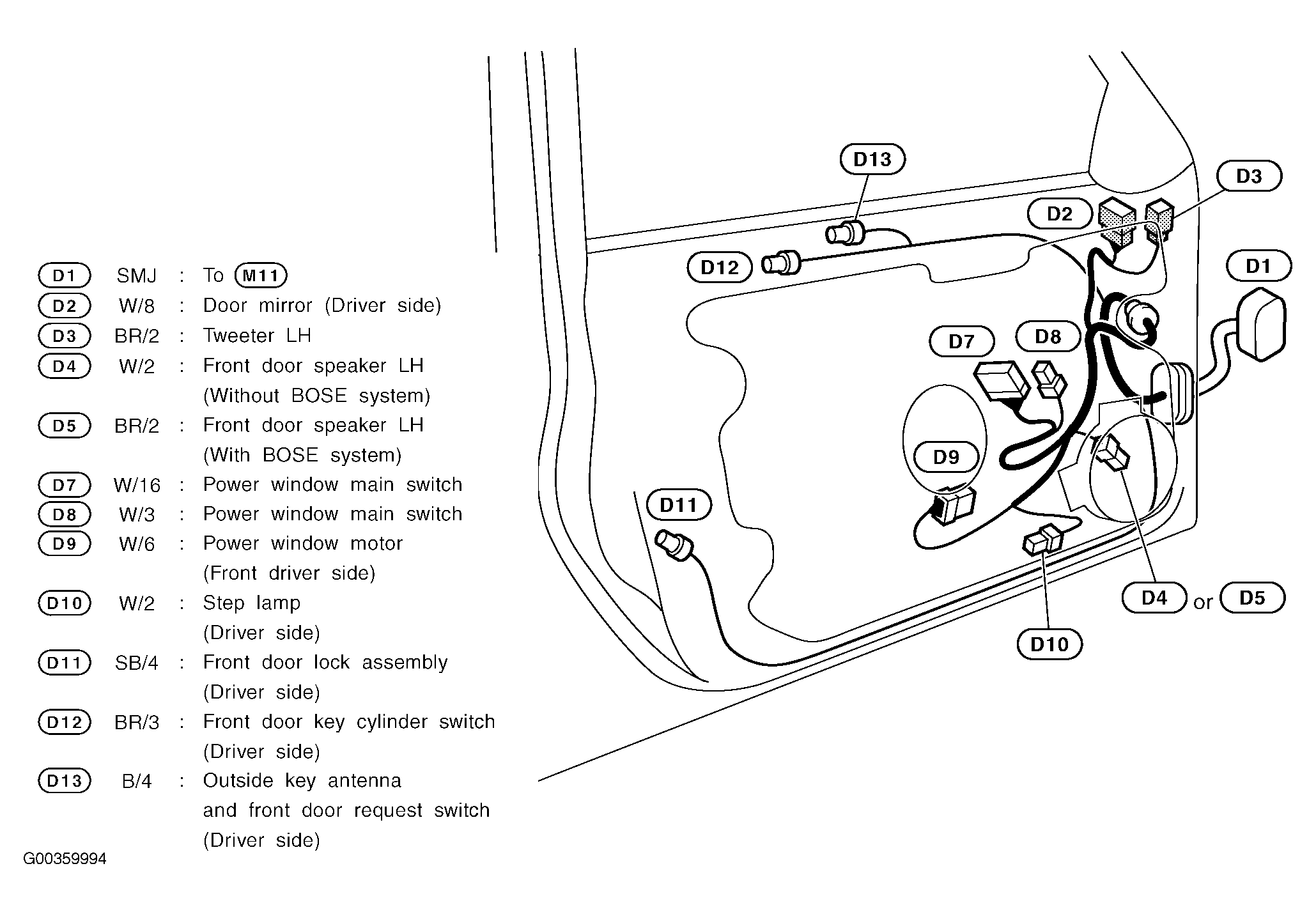

Fig 10: Driver Door

G00359994

Courtesy of NISSAN MOTOR CO., U.S.A.

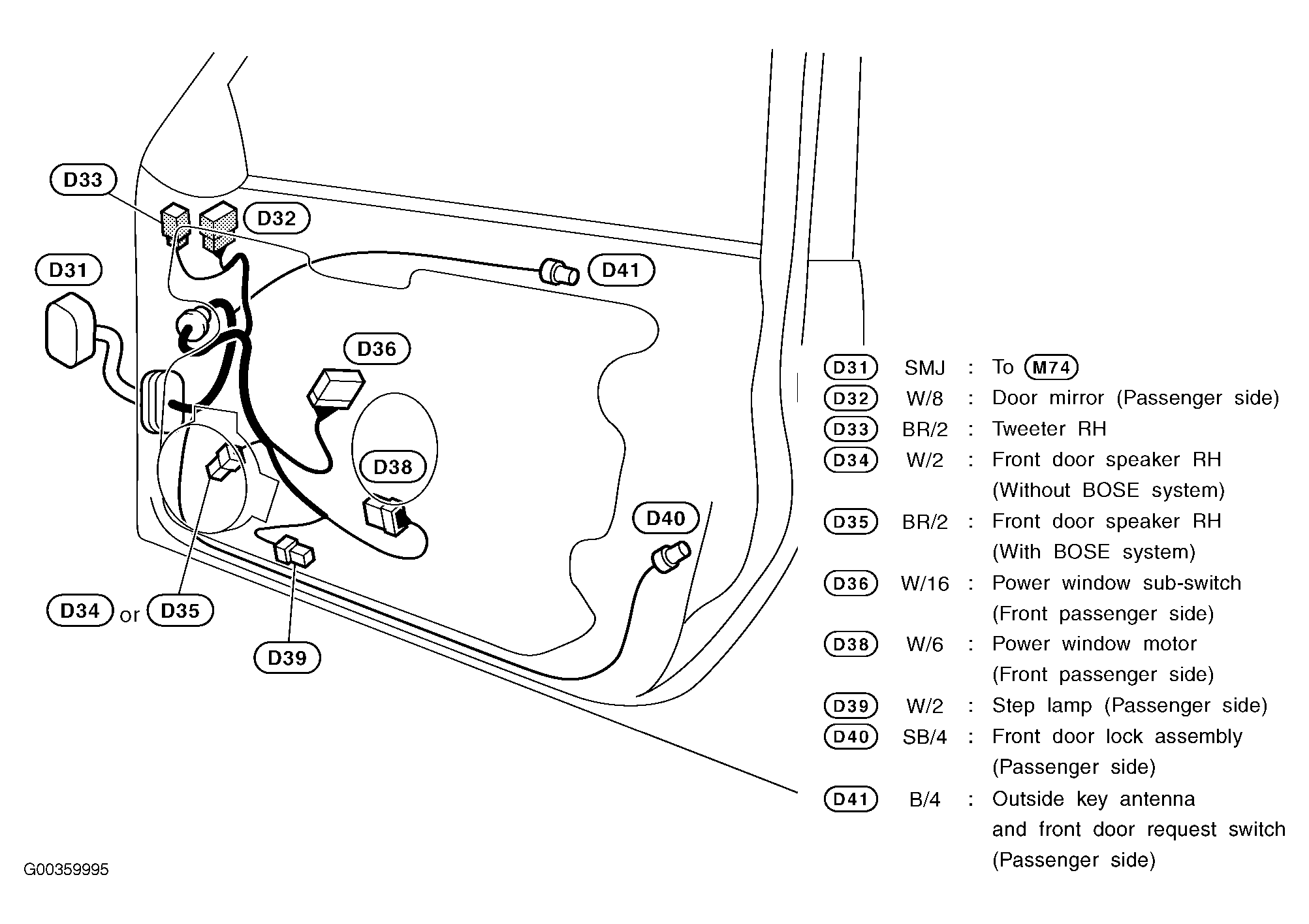

Fig 11: Front Passenger Door

G00359995

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Left Rear Door

G00263028

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Right Rear Door

G00263029

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Engine Compartment

G00359996

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Dash Views (1 Of 2)

G00359997

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Dash Views (2 Of 2)

G00359998

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Trunk

G00263033

Courtesy of NISSAN MOTOR CO., U.S.A.

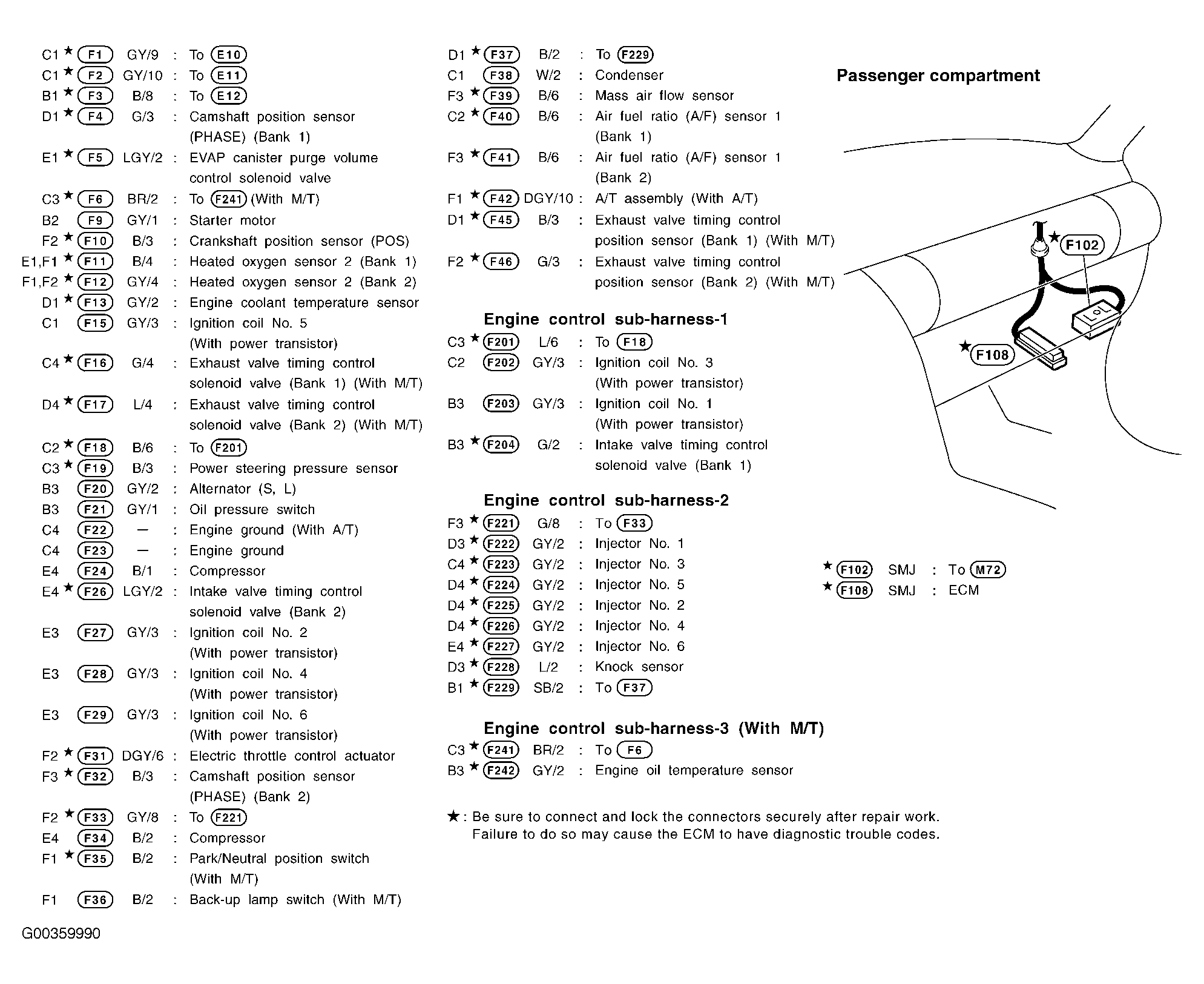

Fig 18: Right Kick Panel

G00359990

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Right Side Of Engine Compartment (AWD)

G00268746

Courtesy of NISSAN MOTOR CO., U.S.A.

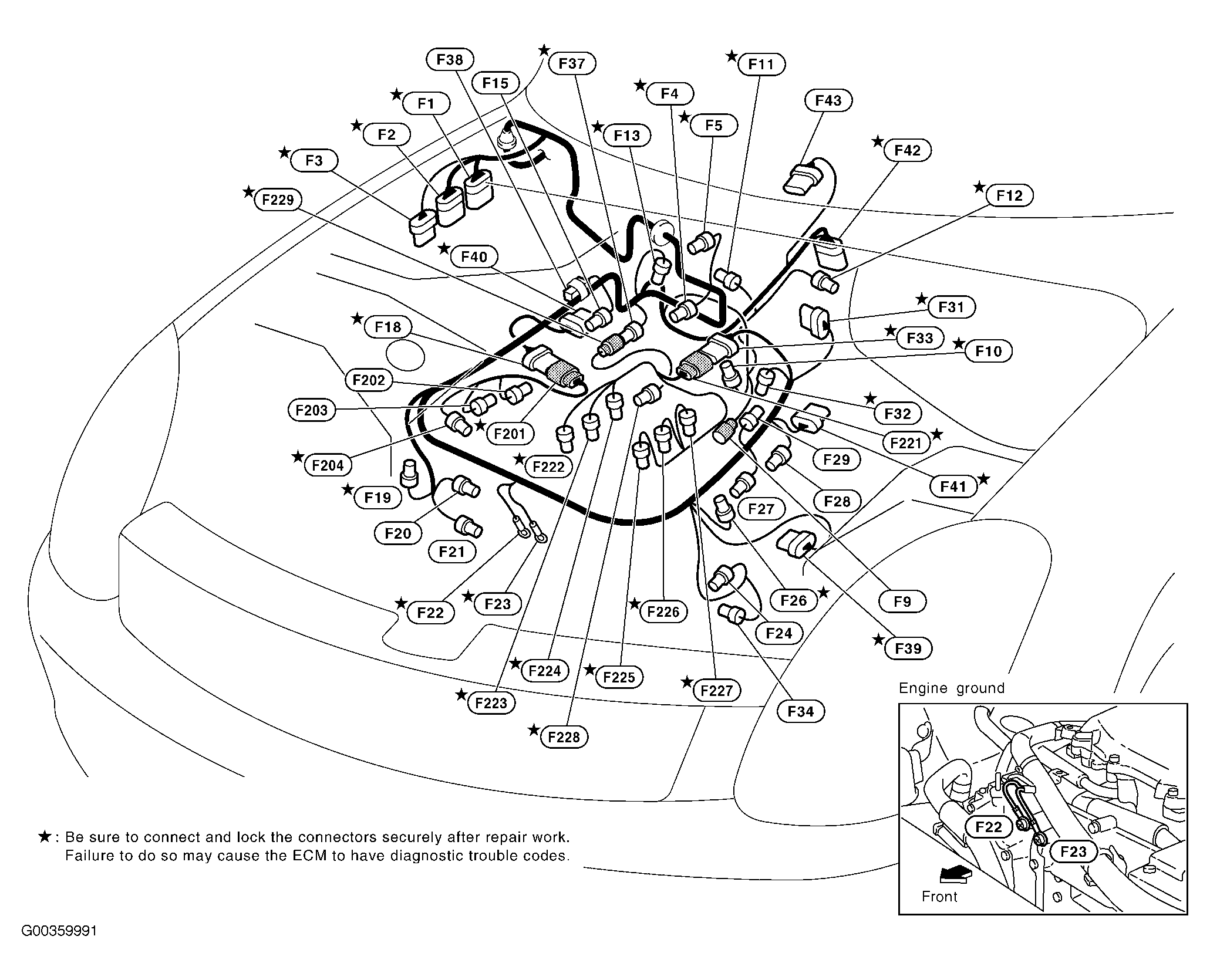

Fig 20: Engine (AWD)

G00359991

Courtesy of NISSAN MOTOR CO., U.S.A.

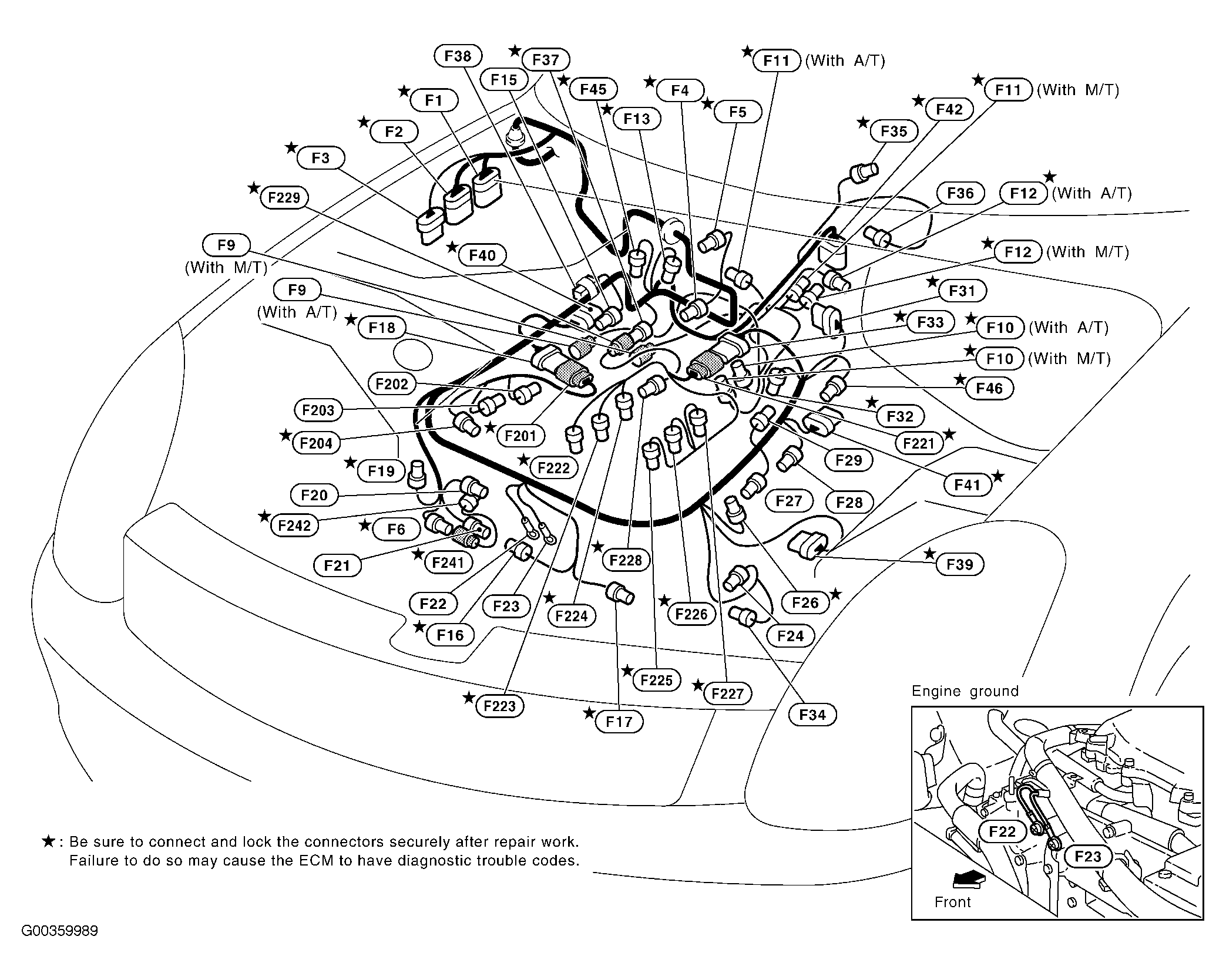

Fig 21: Engine (2WD)

G00359989

Courtesy of NISSAN MOTOR CO., U.S.A.
