Control Units

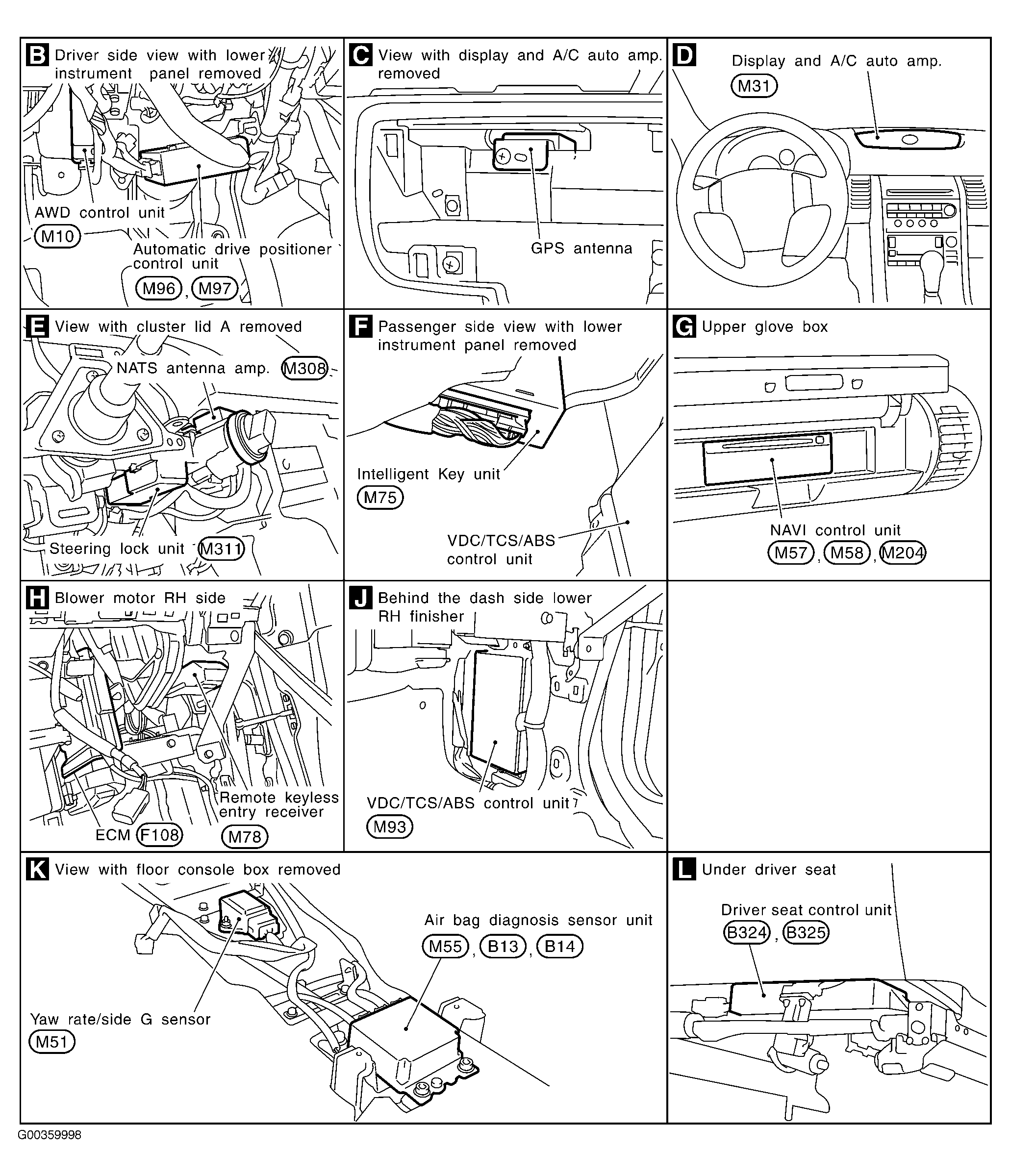

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Drive Positioner Control Unit | Under left side of dash. See Figure . |
| AWD Control Unit (AWD) | Behind right kick panel. See Figure . |
| BCM (Body Control Module) | Behind left kick panel. See Figure . |

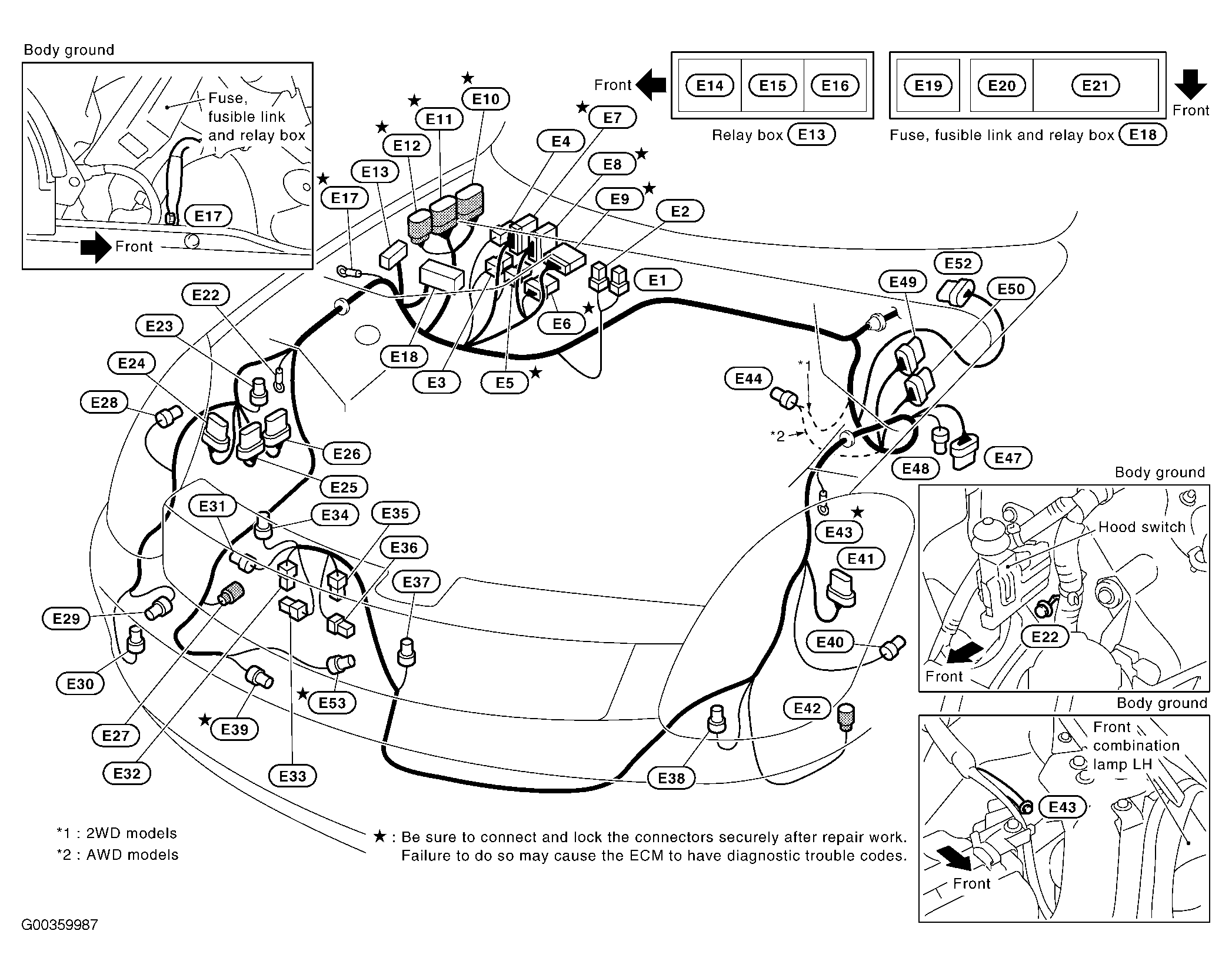

| Daytime Light Control Unit (Canada) (E25 & E26) | At right front corner of engine compartment. See Figure . |
| Driver Seat Control Unit | Under driver seat. See Figure . |
| ECM (Engine Control Module) | Behind right kick panel. See Figure . |
| Front Passenger Air Bag Module (M65) | At top right side of dash. See Figure . |
| Heater & Cooling Unit (M60) | Behind center of dash. See Figure . |
| Intelligent Key Unit | Behind right side of dash. See Figure . |
| NAVI Control Unit | Behind right side of dash. See Figure . |
| Occupant Classification System Control Unit (B45) | Under right front seat. See Figure . |
| Remote Keyless Entry Receiver | Behind right side of dash. See Figure . |
| Steering Lock Unit (With Intelligent Key) | Near steering column. See Figure . |
| VDC Actuator | At left rear corner of engine compartment. See Figure . |
| VDC/TCS/ABS Control Unit | Behind right kick panel. See Figure . |
