With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Select Service $01 with GST.
  3. Check the mass air flow sensor signal with Service $01.
  4. Check for linear mass air flow sensor signal value rise in response to increases to about 4,000 RPM in engine speed.
  5. If NG, go to "Diagnostic Procedure ".

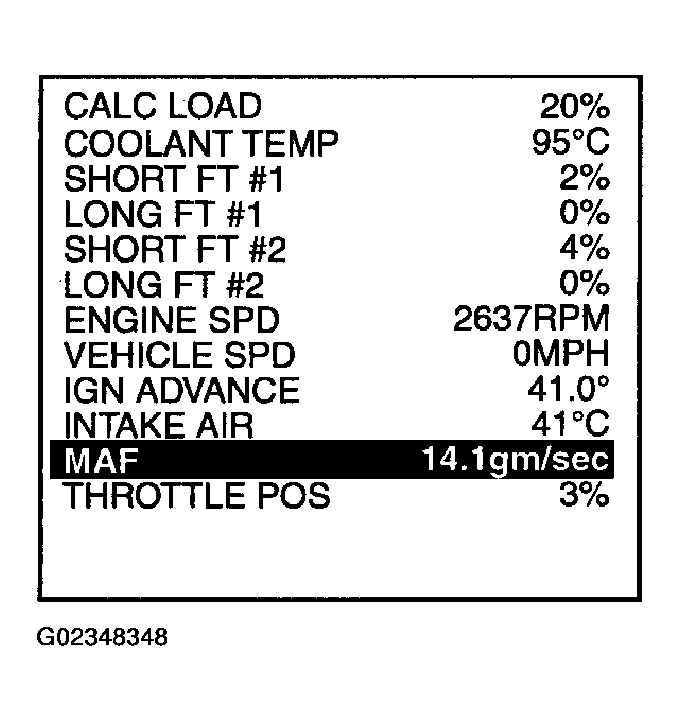

    Fig 1: Procedure For Malfunction B
    G02348348Courtesy of NISSAN MOTOR CO., U.S.A.
