CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

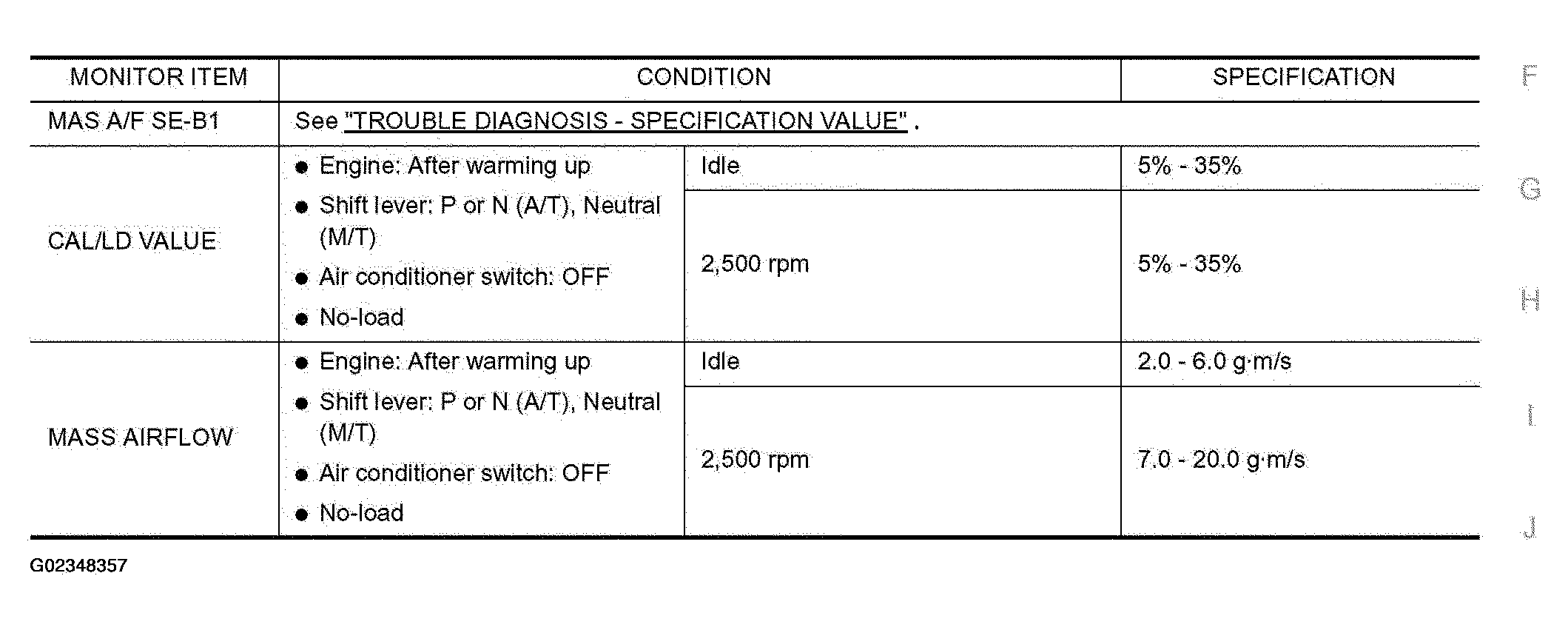

Fig 1: CONSULT-II Reference Value Table In Data Monitor Mode - DTC P0102, P0103 MAF SENSOR

Courtesy of NISSAN MOTOR CO., U.S.A.
