Diagnostic Procedure

1. Turn ignition switch OFF.

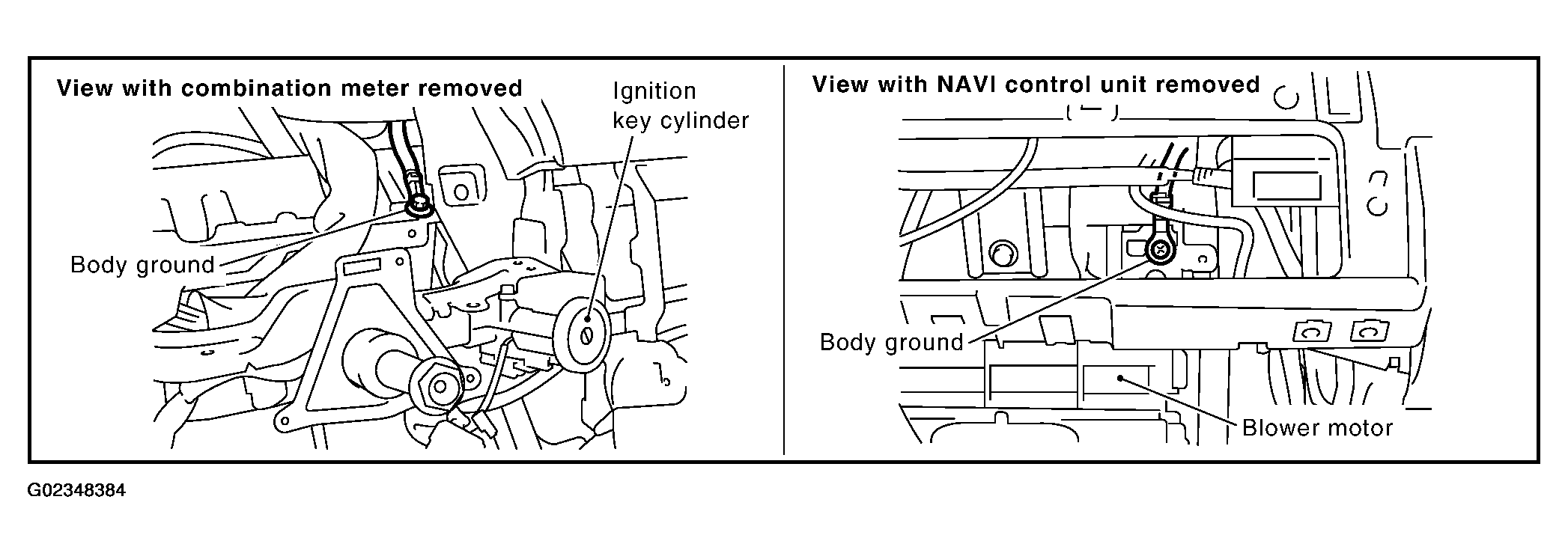

2. Loosen and retighten two ground screws on the body. Refer to "Ground Inspection ".
   Fig 1: DTC P0117, P0118 ECT Sensor Check Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace ground connections.

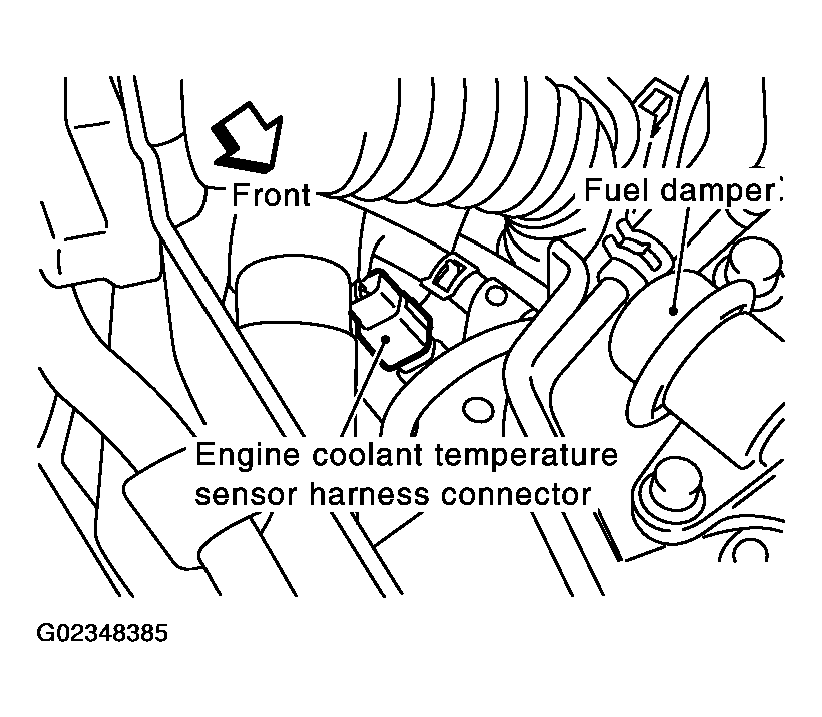

1. Disconnect engine coolant temperature (ECT) sensor harness connector.
2. Turn ignition switch ON.
   Fig 2: Check ECT Sensor Power Supply Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between ECT sensor terminal 1 and ground with CONSULT-II or tester.

   Voltage: Approximately 5V

OK or NG

1. OK: GO TO 3.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
   Fig 3: Checking Voltage Between ECT Sensor Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECT sensor terminal 2 and ECM terminal 67.

   Refer to Wiring Diagram.

   Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 4.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "Component Inspection ".

OK or NG

1. OK: GO TO 5.
2. NG: Replace engine coolant temperature sensor.

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

1. : INSPECTION END
