Repair and Diagnosis
›
Engine Performance
›
Engine Control System - Sedan
›
Trouble Diagnosis
›
CONSULT-II Function (ENGINE)
›
Active Test Mode
›
Test Item
Test Item

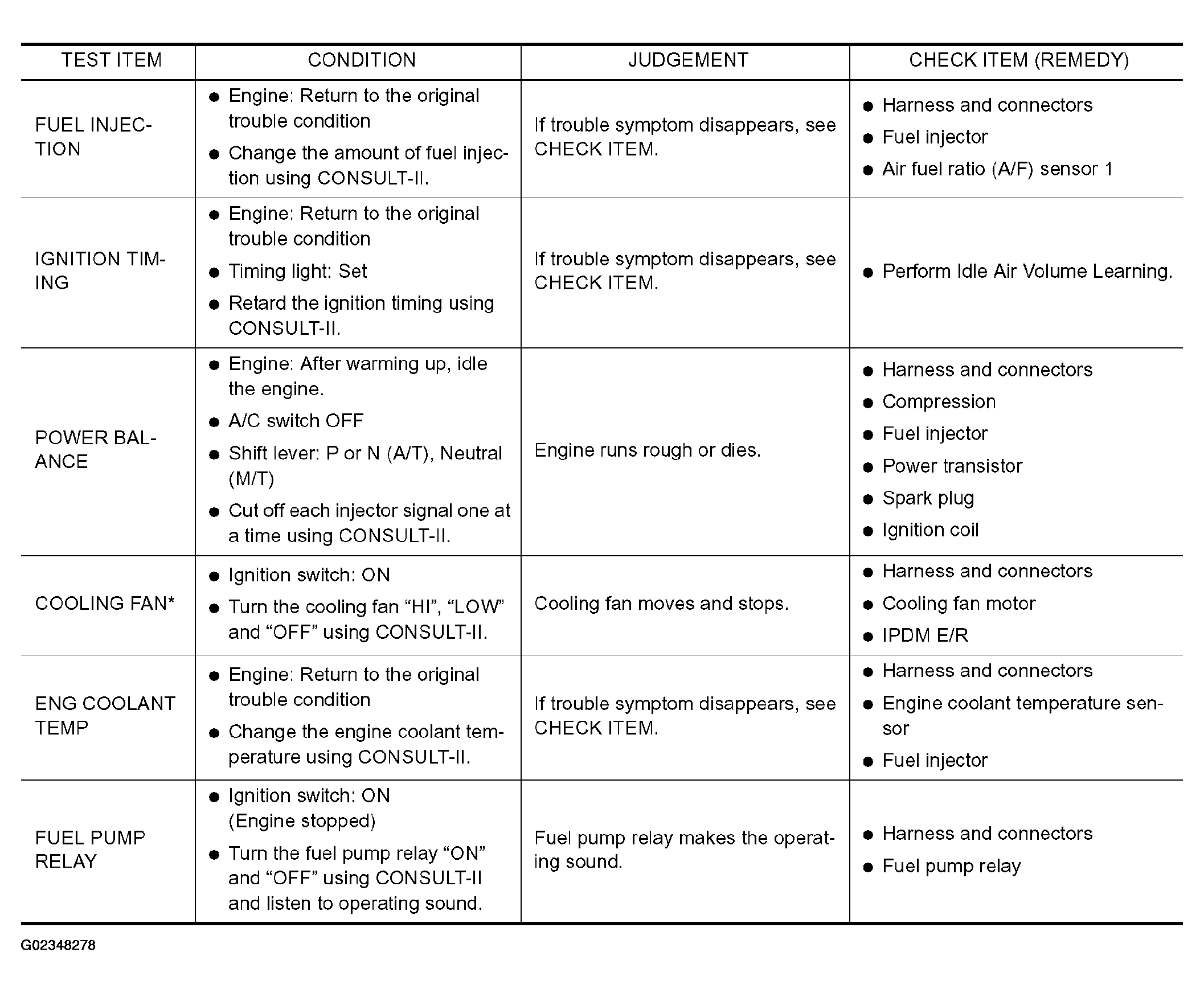

Fig 1: Active Test Mode Test Item Table - (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

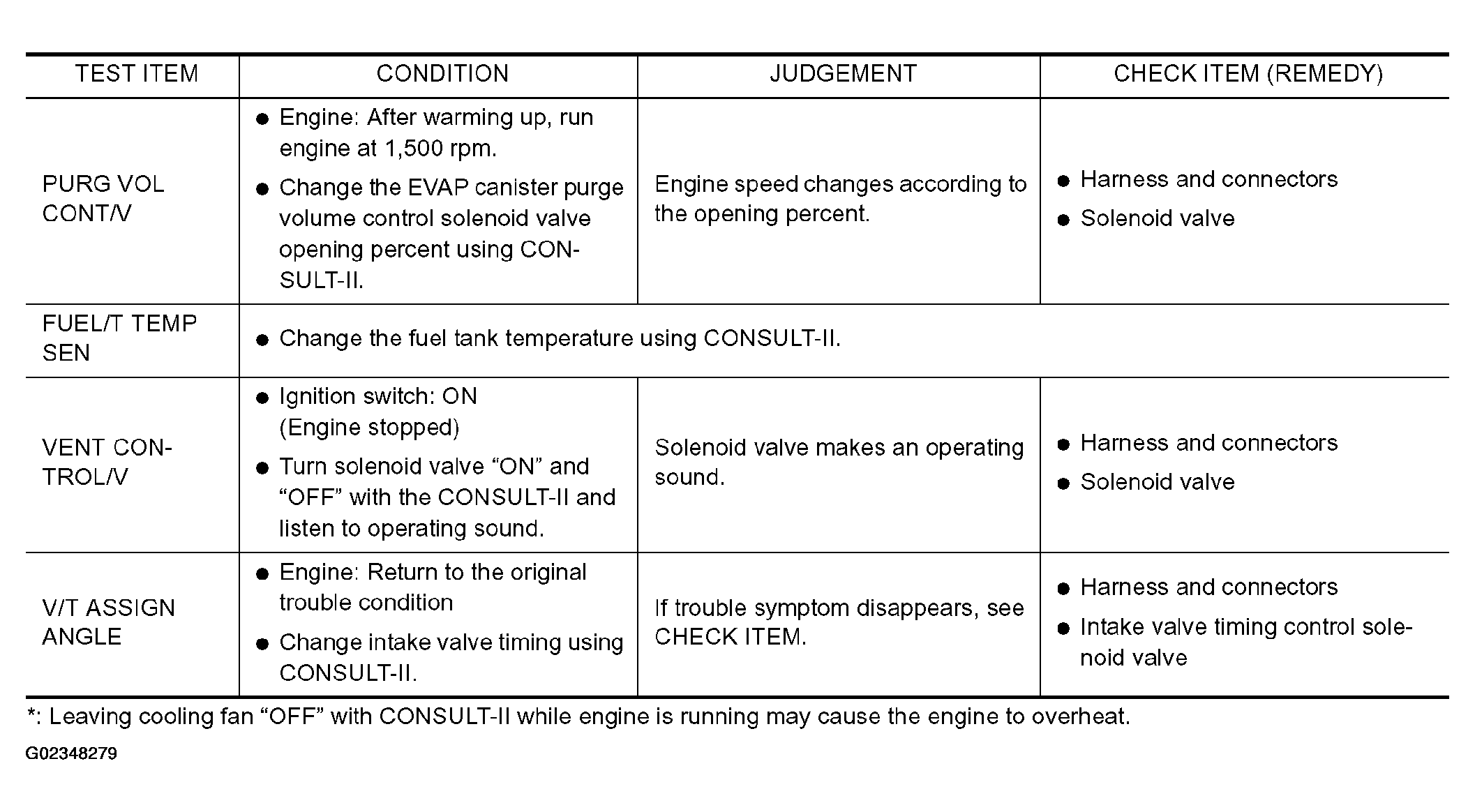

Fig 2: Active Test Mode Test Item Table - (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
