CONSULT-II Reference Value in Data Monitor Mode

WARNING: This page is about a different variant/trim than selected.

Specification data are reference values.

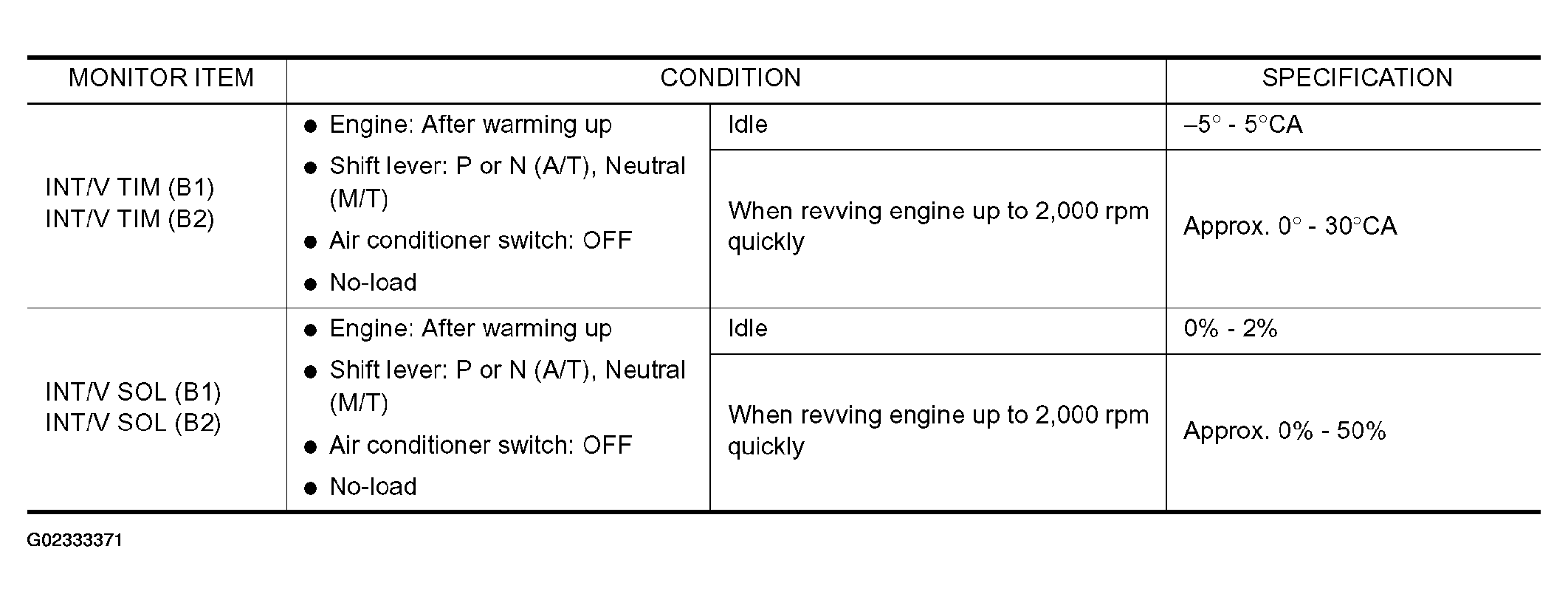

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
