Auto Cruise Control System - ICC
›
Removal And Installation
›
ICC Unit
›
Notes
ICC Unit: Notes

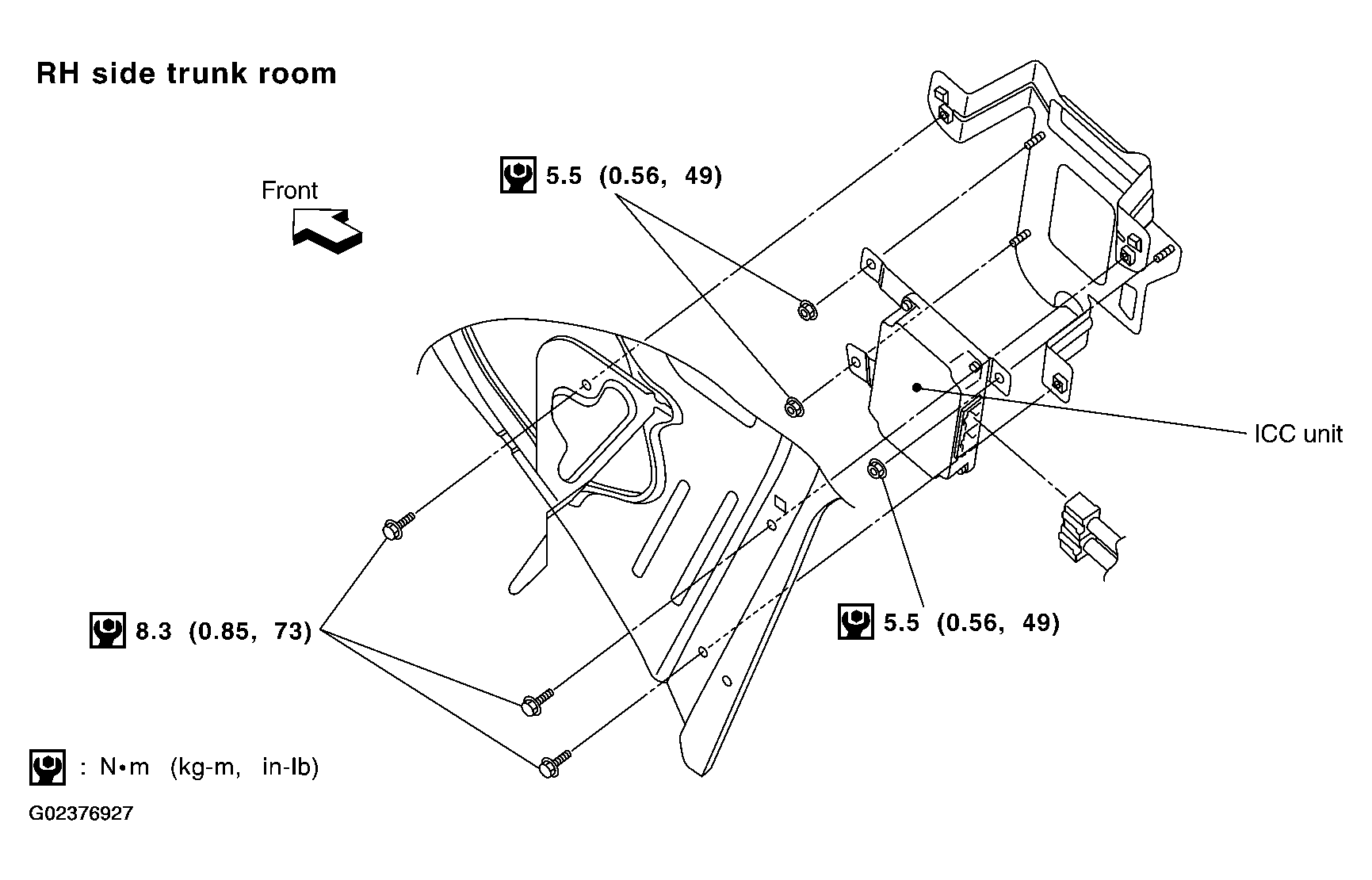

Fig 1: Exploded View Of ICC Unit With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
