Auto Cruise Control System - ICC
›
Terminals And Reference Value
›
Terminals and Reference Value for ICC Sensor
Terminals and Reference Value for ICC Sensor

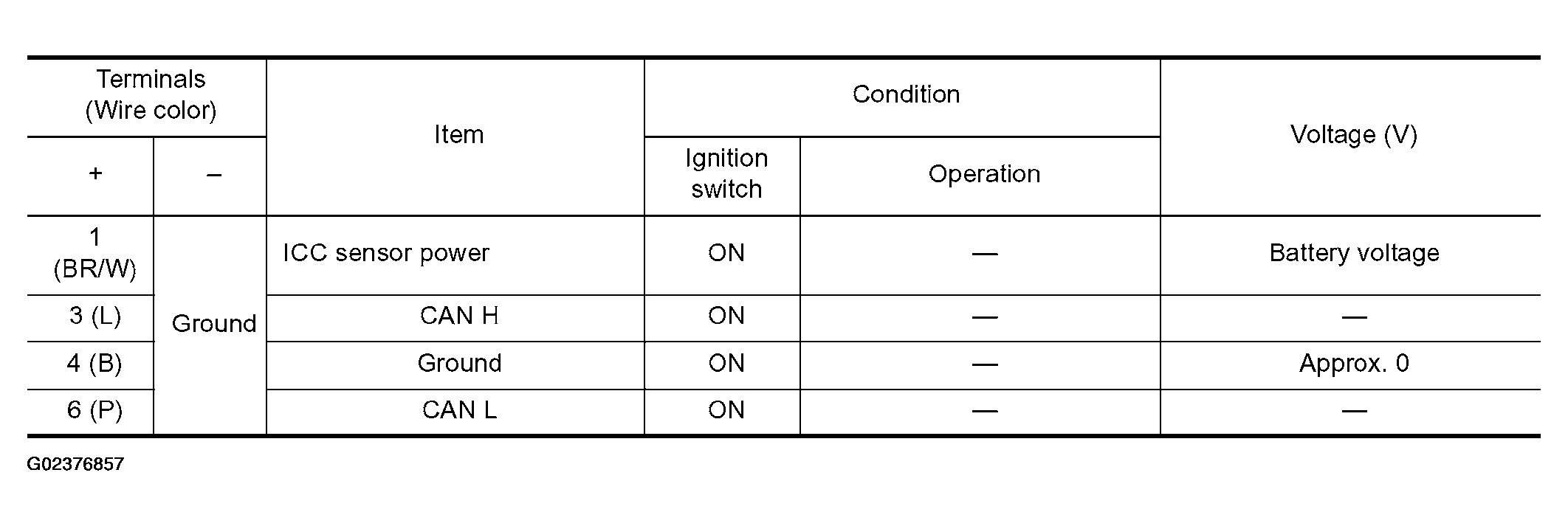

Fig 1: Terminals And Reference Value For ICC Sensor Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
