Auto Trunk System: Schematic

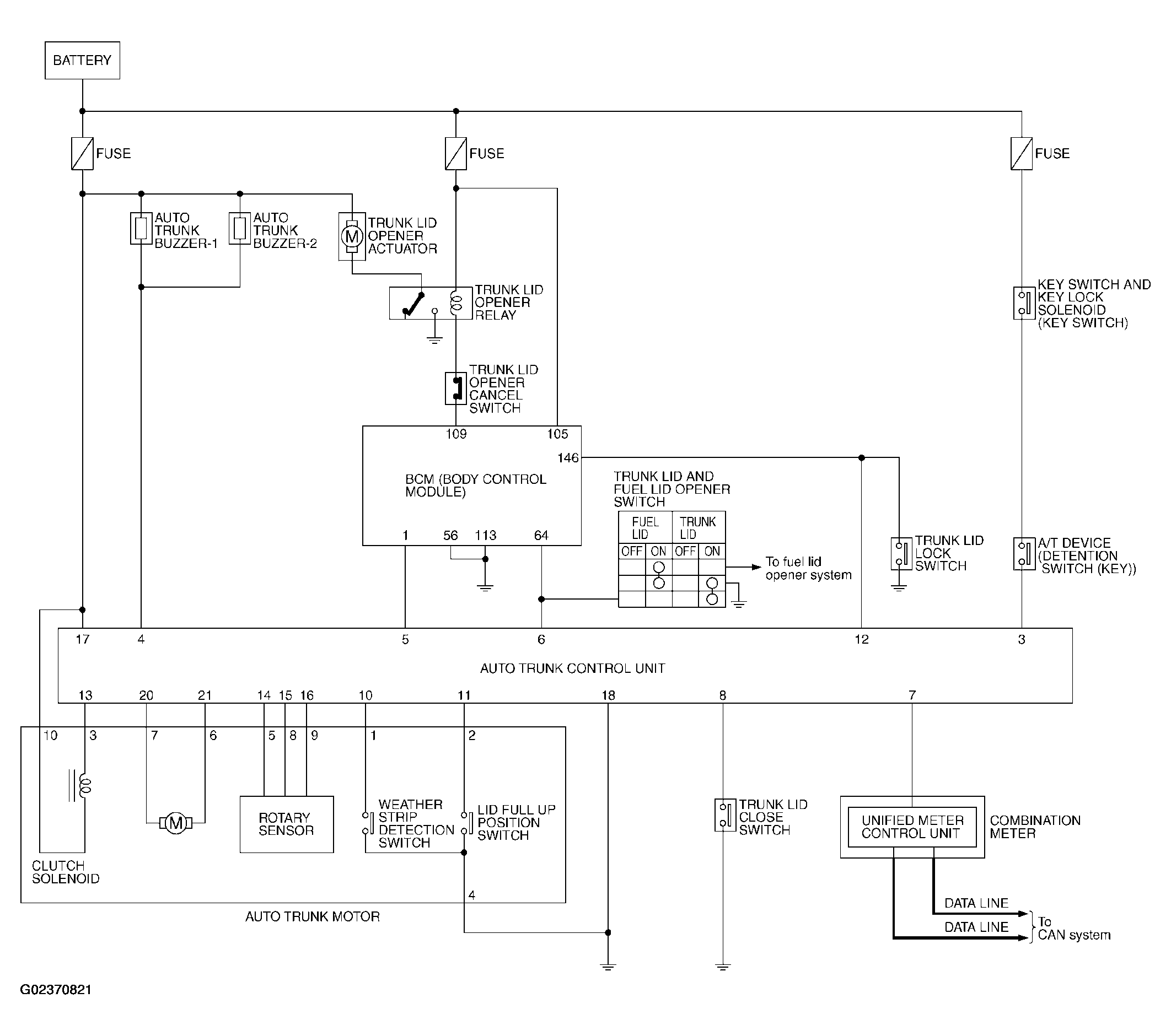

Fig 1: Auto Trunk System - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
