Engine Compartment
›
Measurement Points
Measurement Points

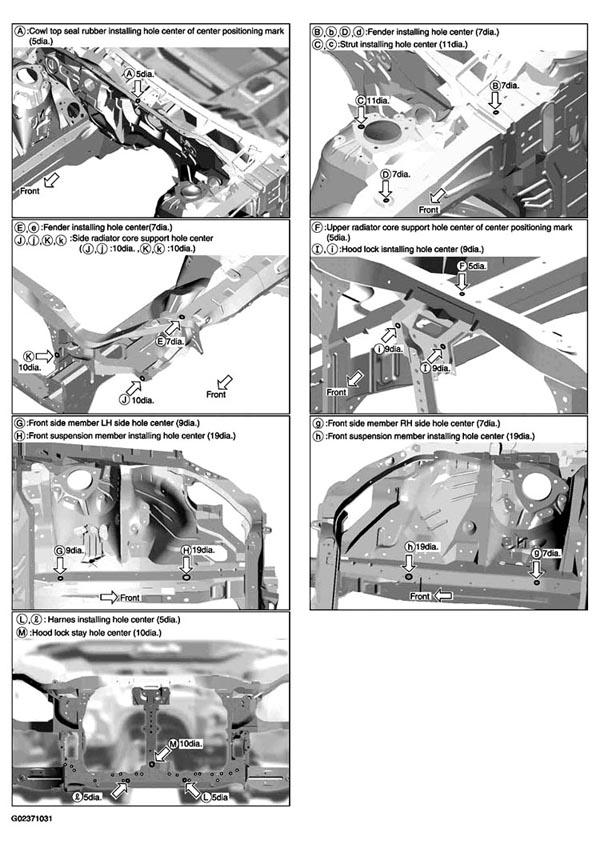

Fig 1: Identifying Engine Compartment Measurement Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
