Electronic Key System
›
Work Flow
Work Flow

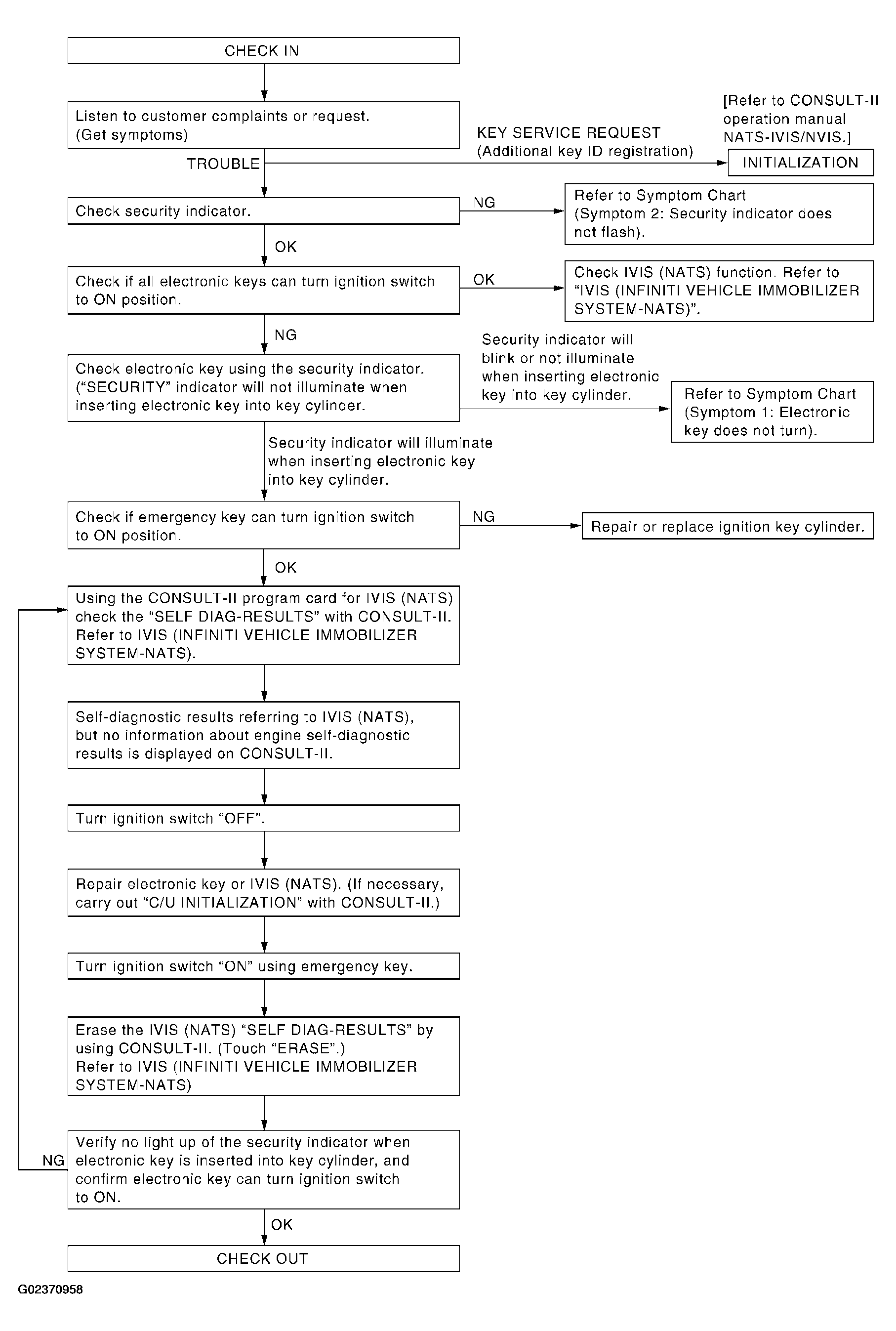

Fig 1: Electronic Key System Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
