Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Body, Lock & Security System
›
Front Door Lock
›
Component Structure
Component Structure

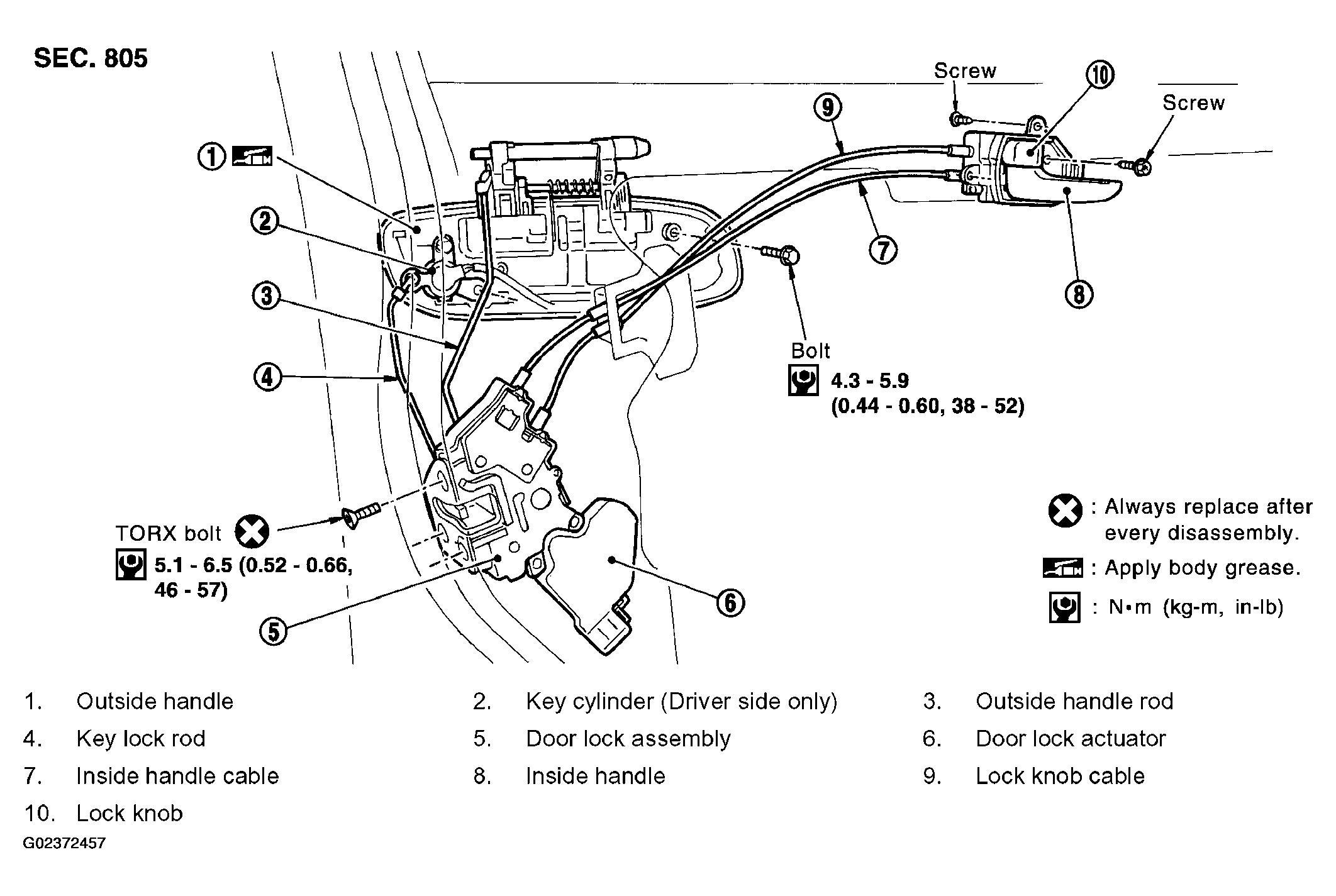

Fig 1: Front Door Lock Component Structure With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
