Check Rear Door Switch

With CONSULT-II

Check rear door switch ("DOOR SW-RR" and "DOOR SW-RL") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: Monitor Item Condition Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DATA MONITOR - CONSULT II Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check front door switch in "SWITCH MONITOR" mode. Refer to "SWITCH MONITOR ".

OK or NG

1. OK: Rear door switch is OK.
2. NG: GO TO 2

1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 1 (W) and BCM connector M4 (rear LH), B4 (rear RH) terminal 33 (W), 143 (W/L).
   1. Rear door switch LH
   2. 1 (W) - 33 (W): Continuity should exist.
   3. Rear door switch RH
   4. 1 (W) - 143 (W/L): Continuity should exist.
4. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 1(W) and ground.
   1. 1 (W) - Ground: Continuity should not exist.

OK or NG

1. OK: GO TO 3.
2. NG: Repair or replace harness.

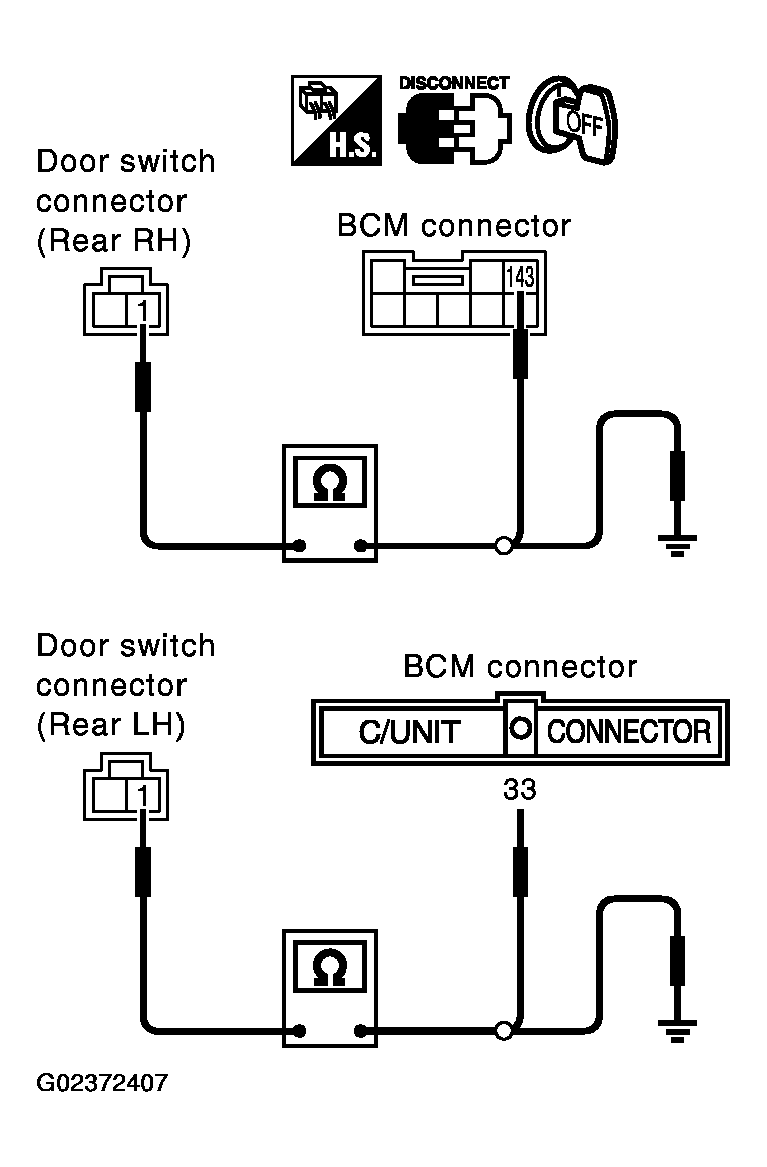

Fig 3: Checking Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 2 and ground.
   1. 2 (B) - Ground: Continuity should exist.

OK or NG

1. OK: GO TO 4.
2. NG: Repair or replace harness.

Fig 4: Checking Continuity Between Rear Door Switch Connector D62 (Rear LH), D82 (Rear RH) Terminal 2 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between rear door switch (rear LH), (rear RH) terminals 1 and 2.

Fig 5: Connector Terminals Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Checking Continuity Between Rear Door Switch (Rear LH), (Rear RH) Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Rear door switch is OK.
2. NG: Replace malfunction door lock assembly rear (door switch).
