Removal and Installation of Remote Keyless Entry Receiver: Remove

  1. Remove the rear parcel shelf finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the remote keyless entry receiver connector, mounting screw and remove the remote keyless entry receiver.

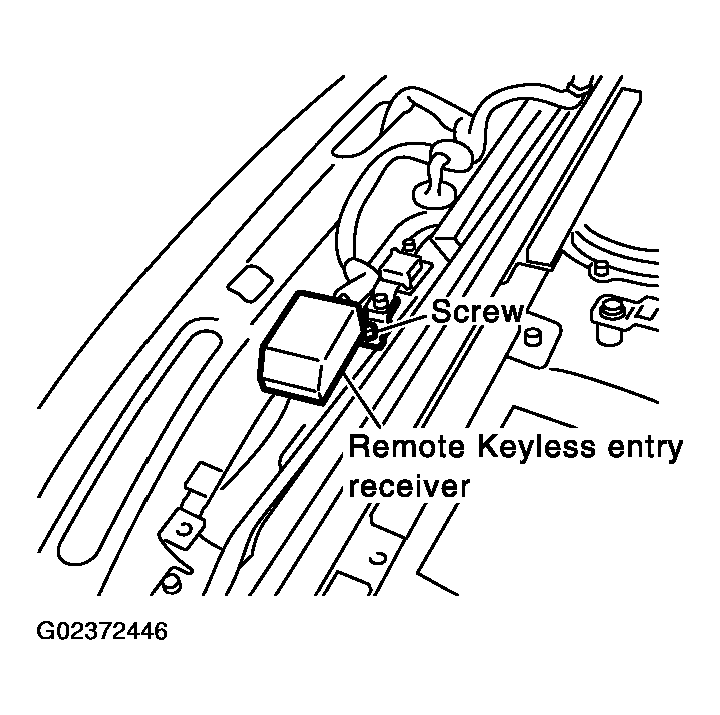

    Fig 1: Disconnecting Remote Keyless Entry Receiver Connector
    G02372446Courtesy of NISSAN MOTOR CO., U.S.A.
