Terminal and Reference Value for Driver Door Control Unit (LCU01)
Terminal and Reference Value for Driver Door Control Unit (LCU01)

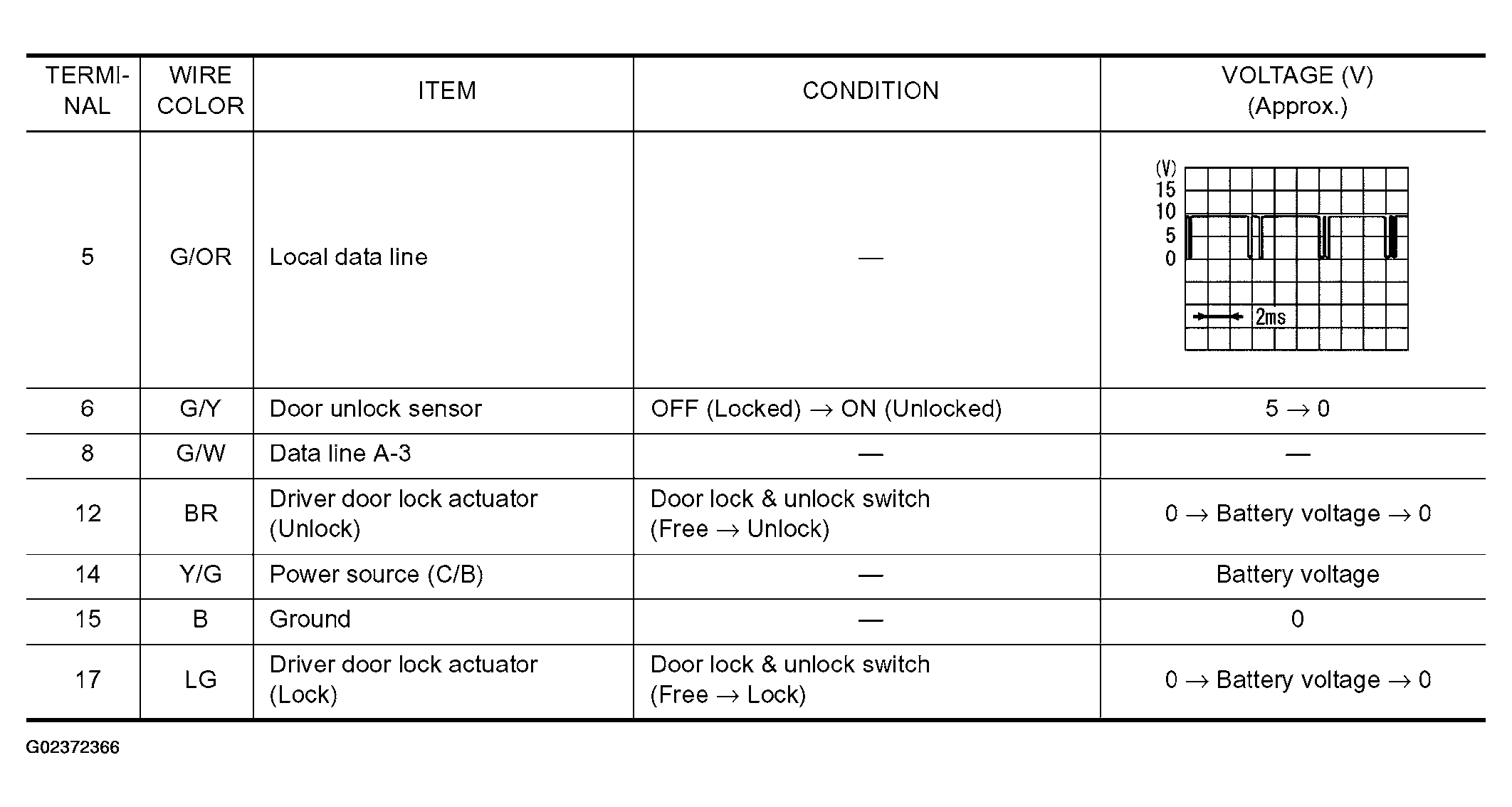

Fig 1: Driver Door Control Unit Terminal And Reference Value Chart (LCU01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
