Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
System Description
›
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

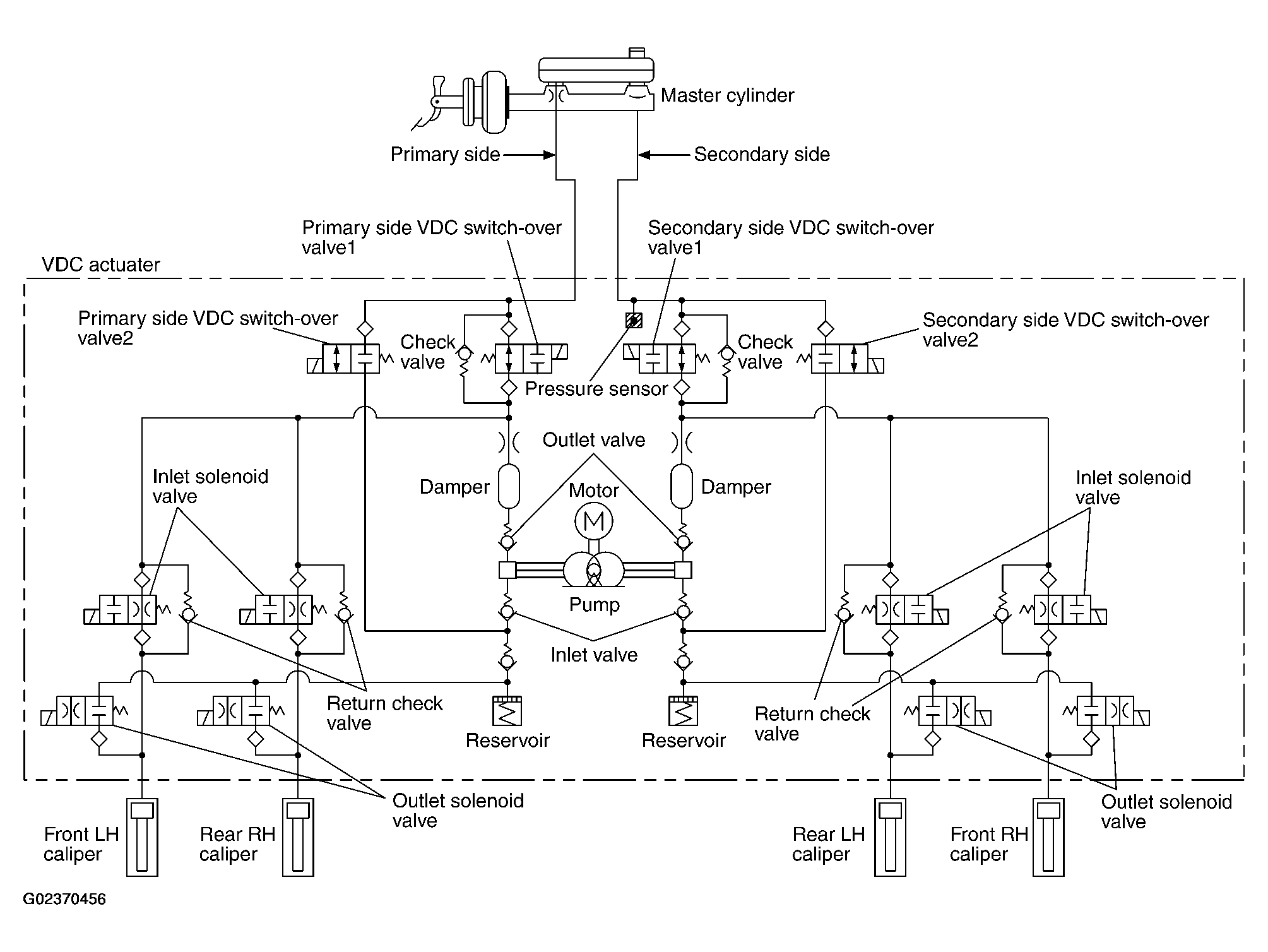

Fig 1: Brake Control System Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
