Solenoid Valve
CAUTION:
The example shown is for front right wheel. The procedure for the other wheels are the same as given below.
- To perform active test of ABS functions, select major items for each test item. To perform active test of VDC/TCS functions, select item menu for each test item.

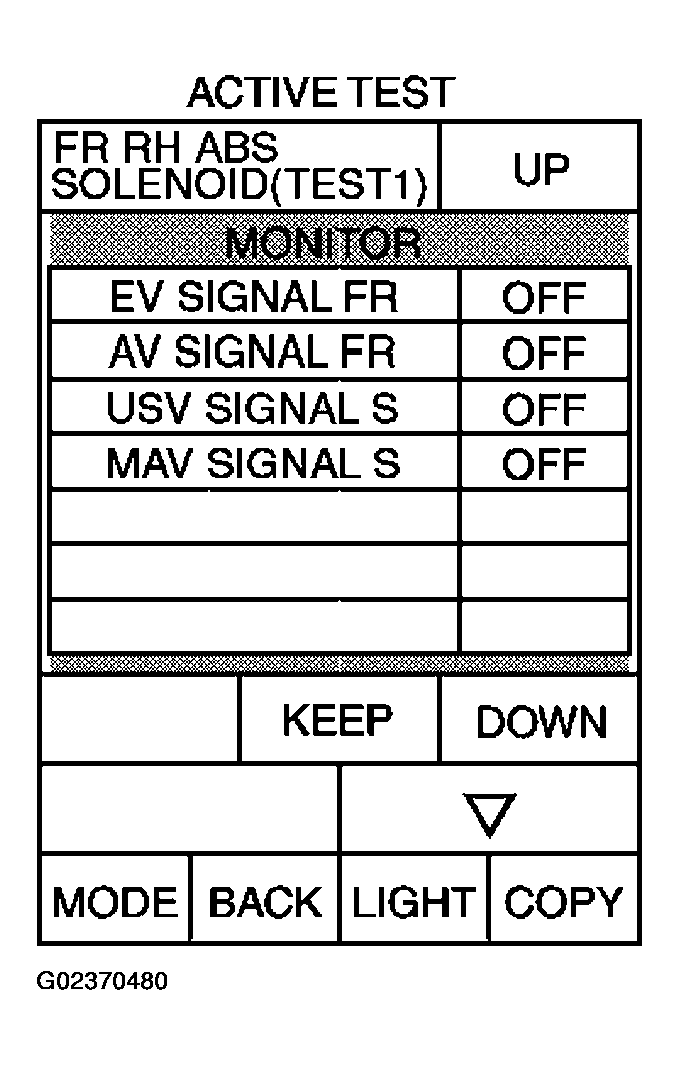

- For ABS solenoid valve, touch "UP", "KEEP", and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACT UP," and "ACT KEEP". Use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to "SOLENOID VALVE OPERATION CHART ".
