Display Item List

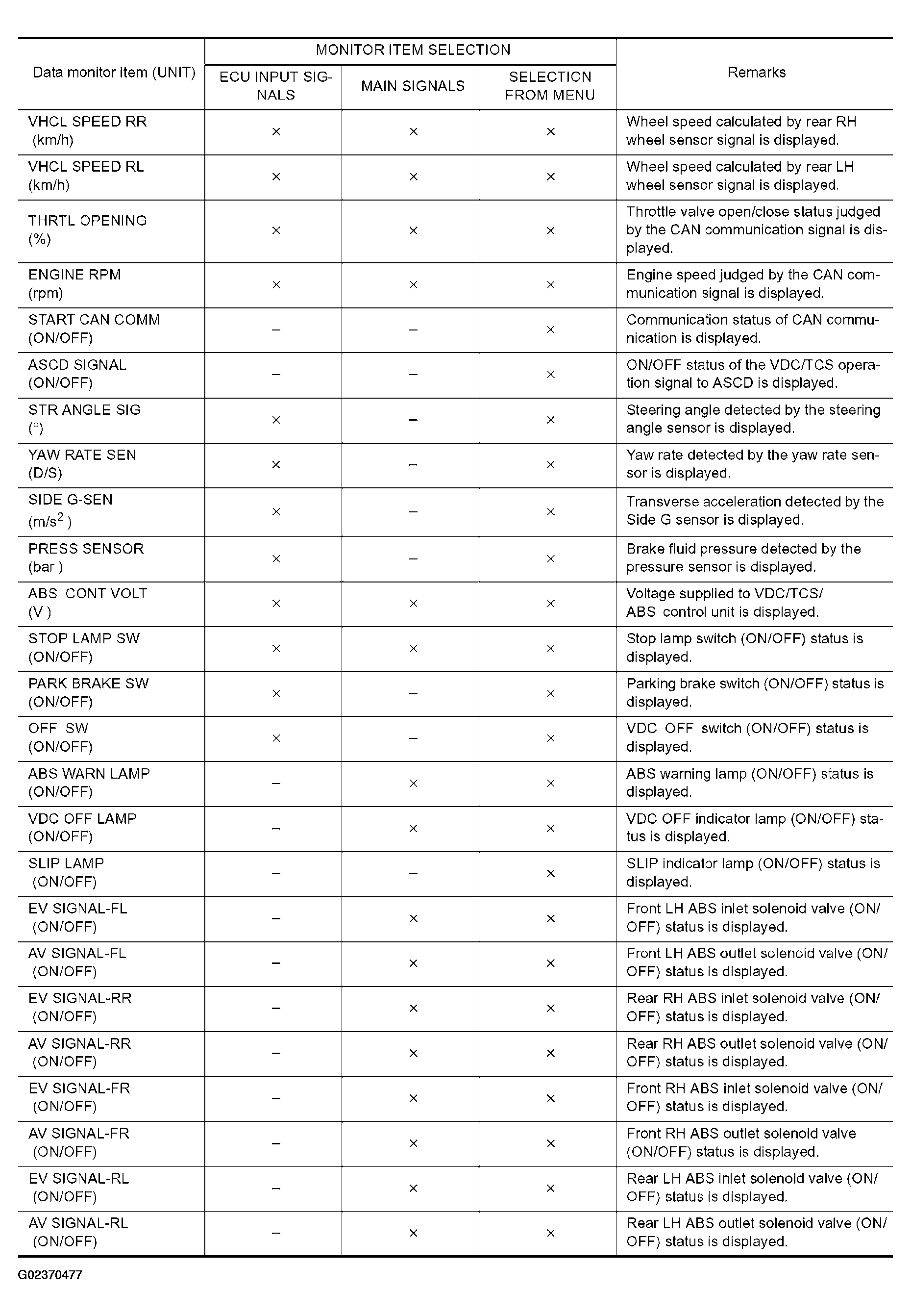

Fig 1: Display Item List (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

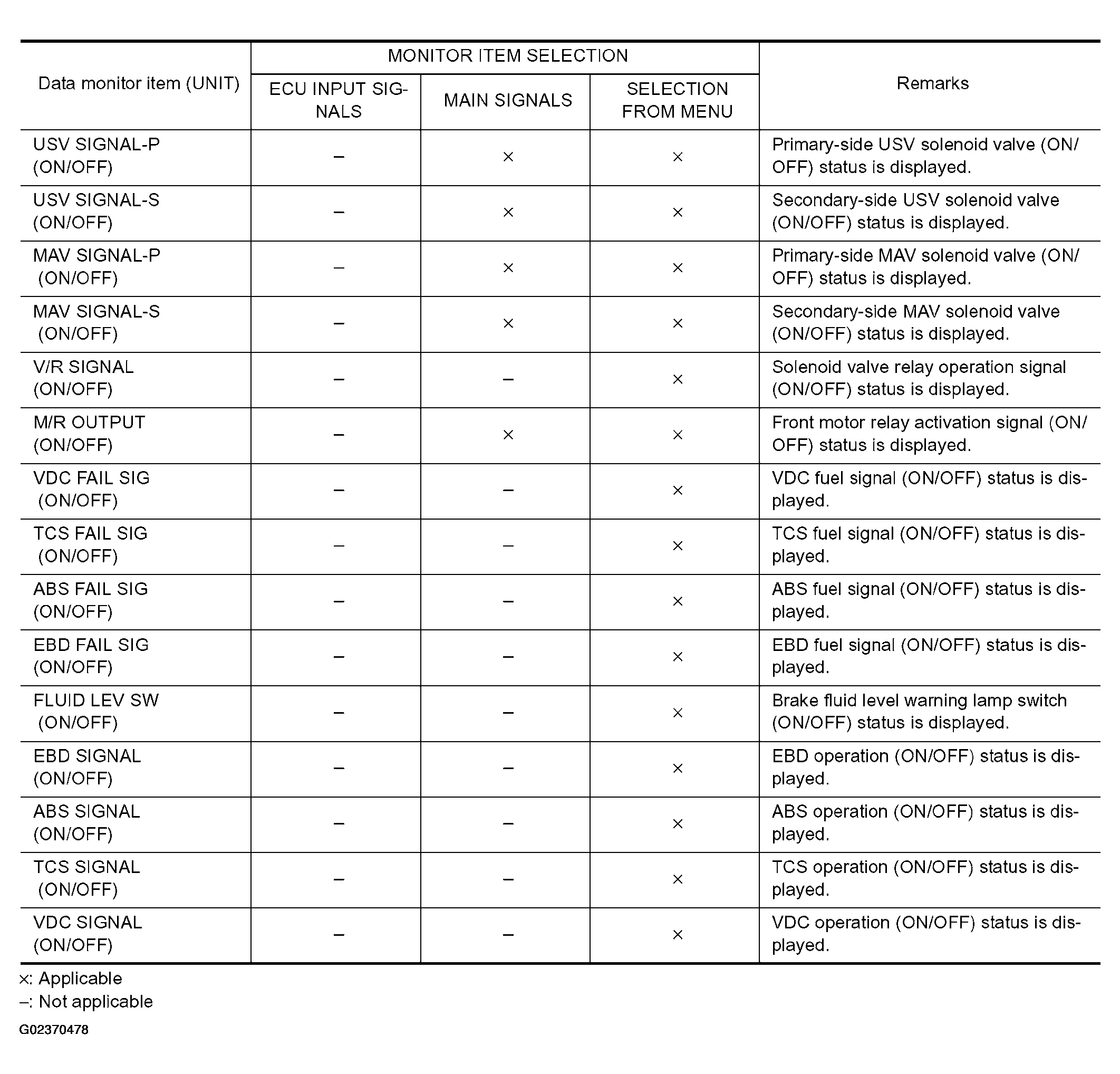

Fig 2: Display Item List (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

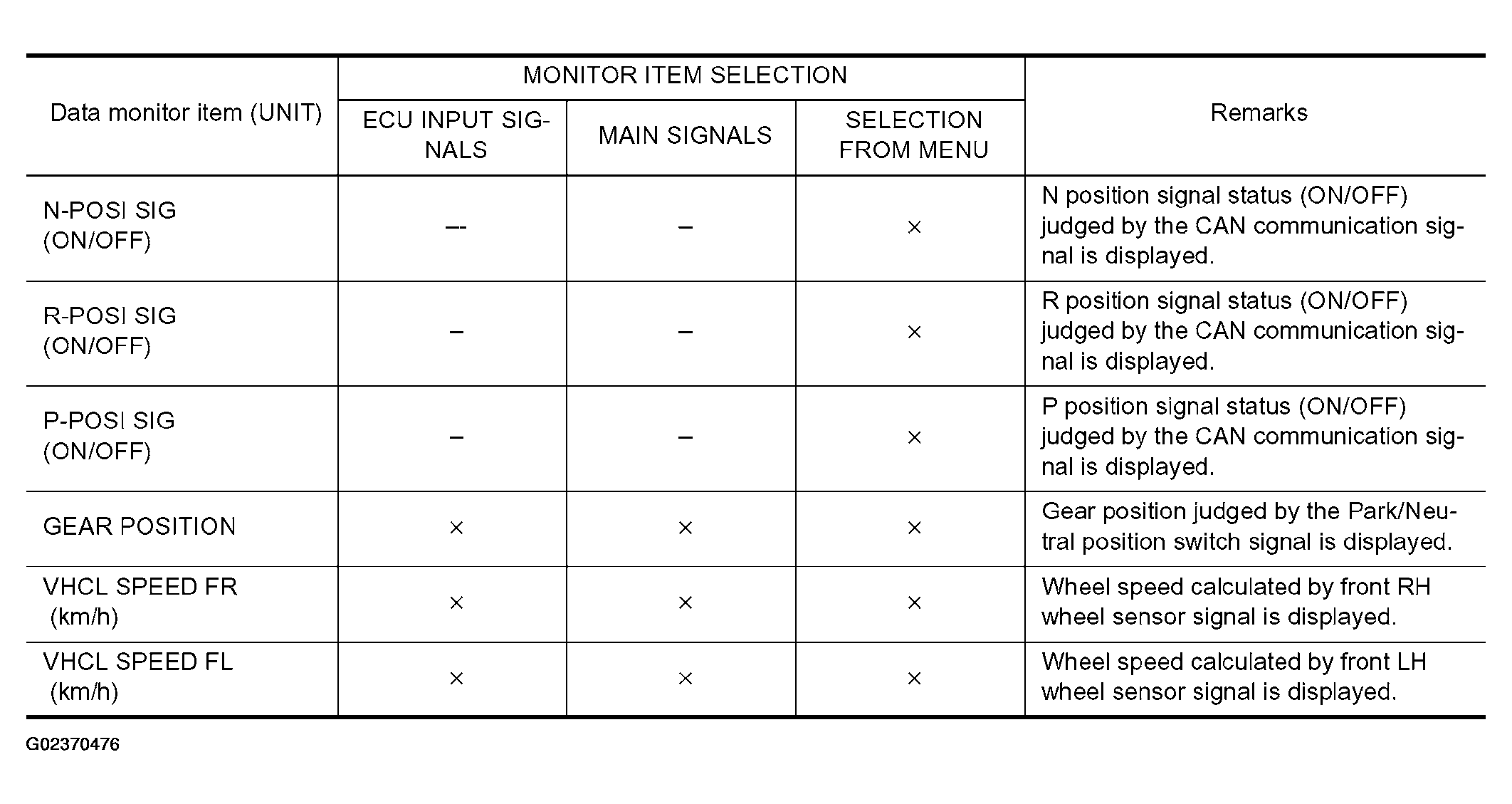

Fig 3: Display Item List (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
