Combination Meters: Schematic

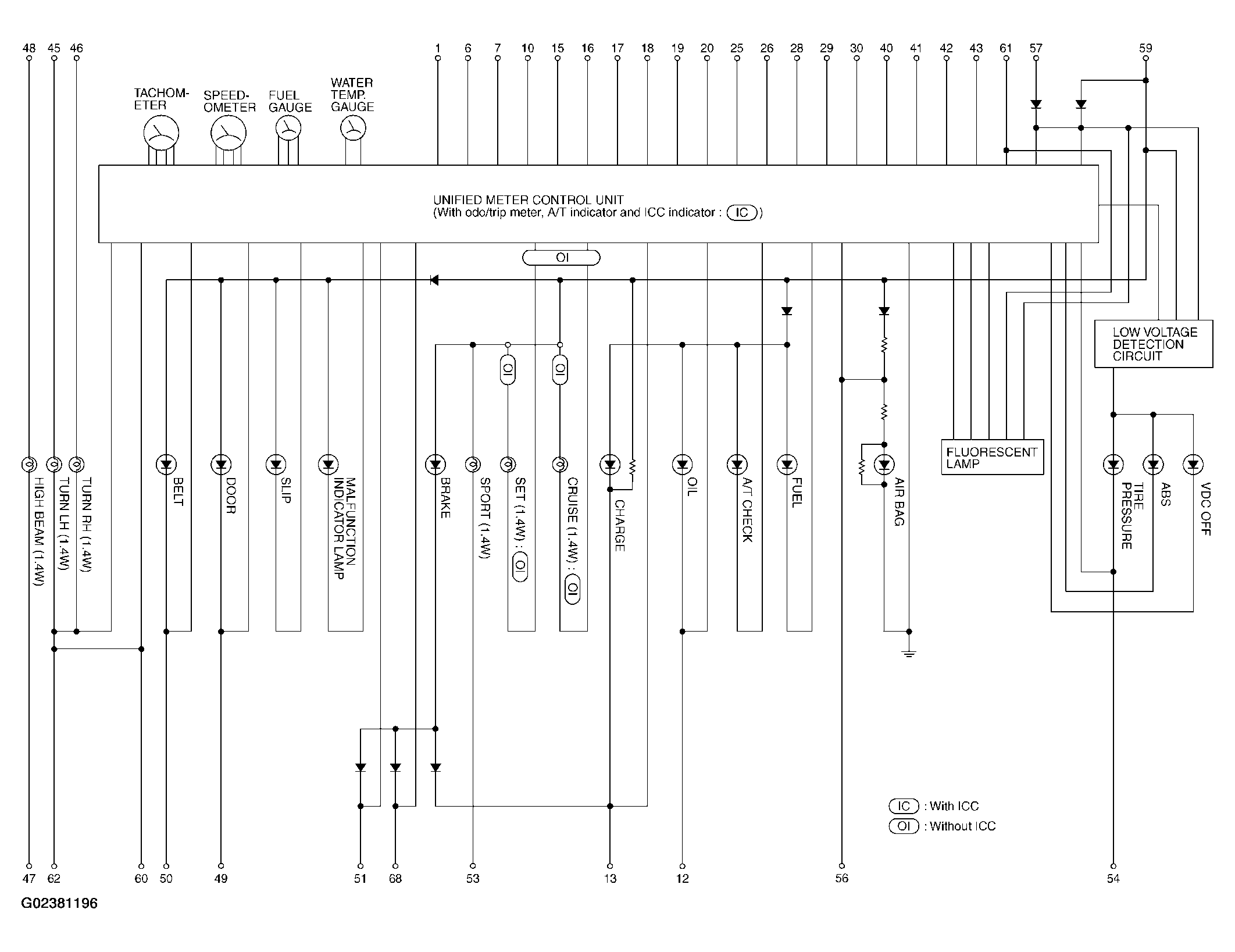

Fig 1: Combination Meter Schematic Diagram
G02381196Courtesy of NISSAN MOTOR CO., U.S.A.
