Warning Indications

Combination meter sends warning signal to AV and NAVI control unit to display warning indications on the screen.

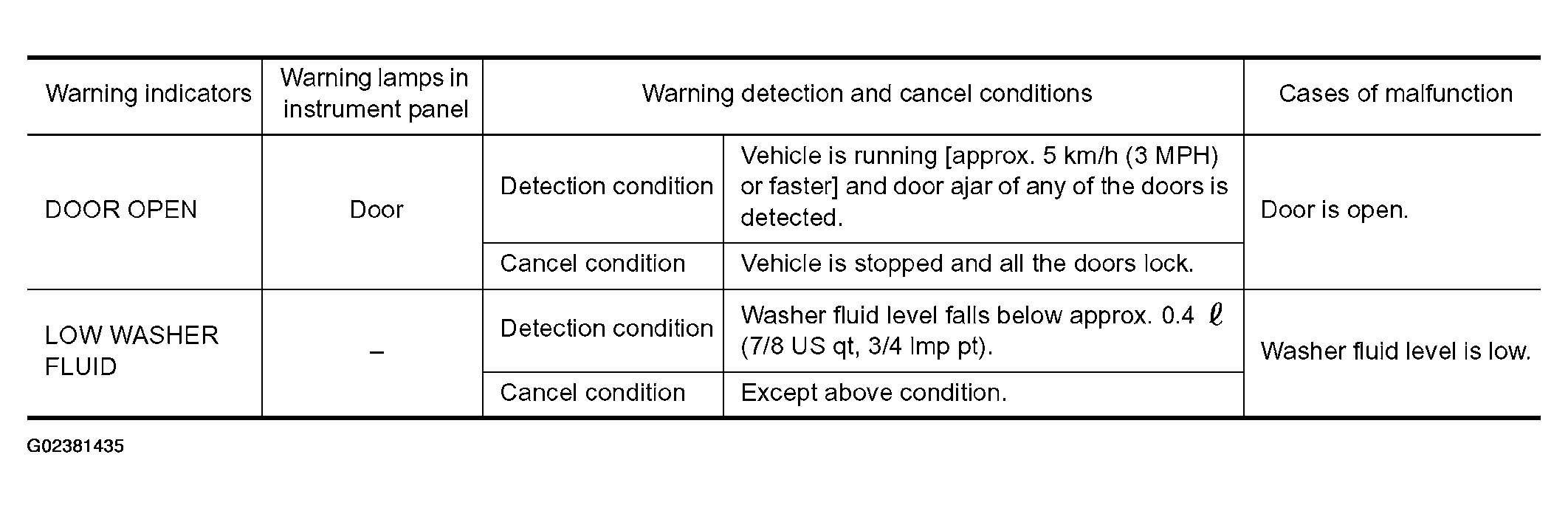

Fig 1: Combination Meter Sends Warning Signal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
