Terminals and Reference Values for Voice Activated Control Module
Terminals and Reference Values for Voice Activated Control Module

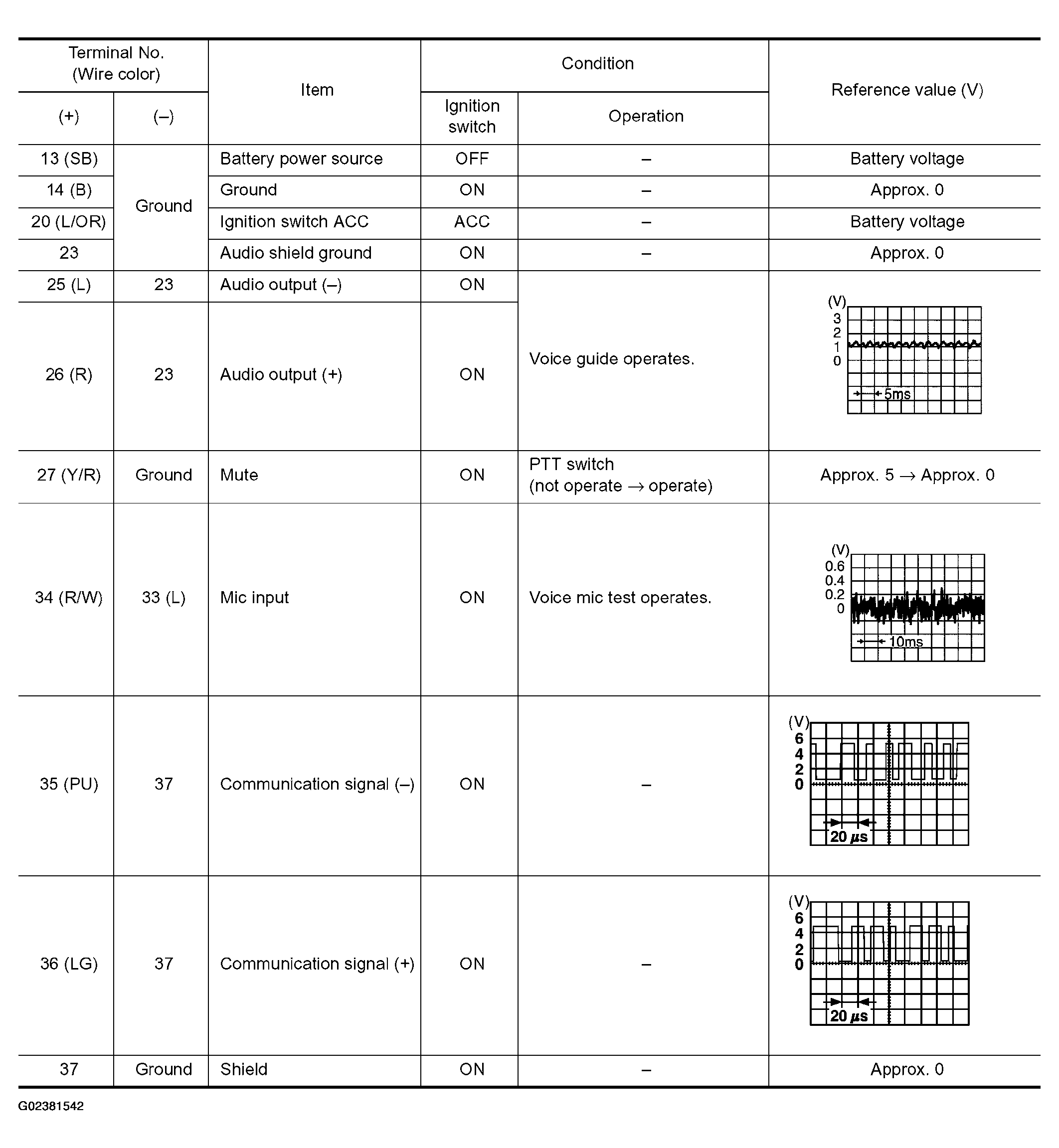

Fig 1: Terminals And Reference Values For Voice Activated Control Module Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
