Terminals and Reference Value Chart for BCM

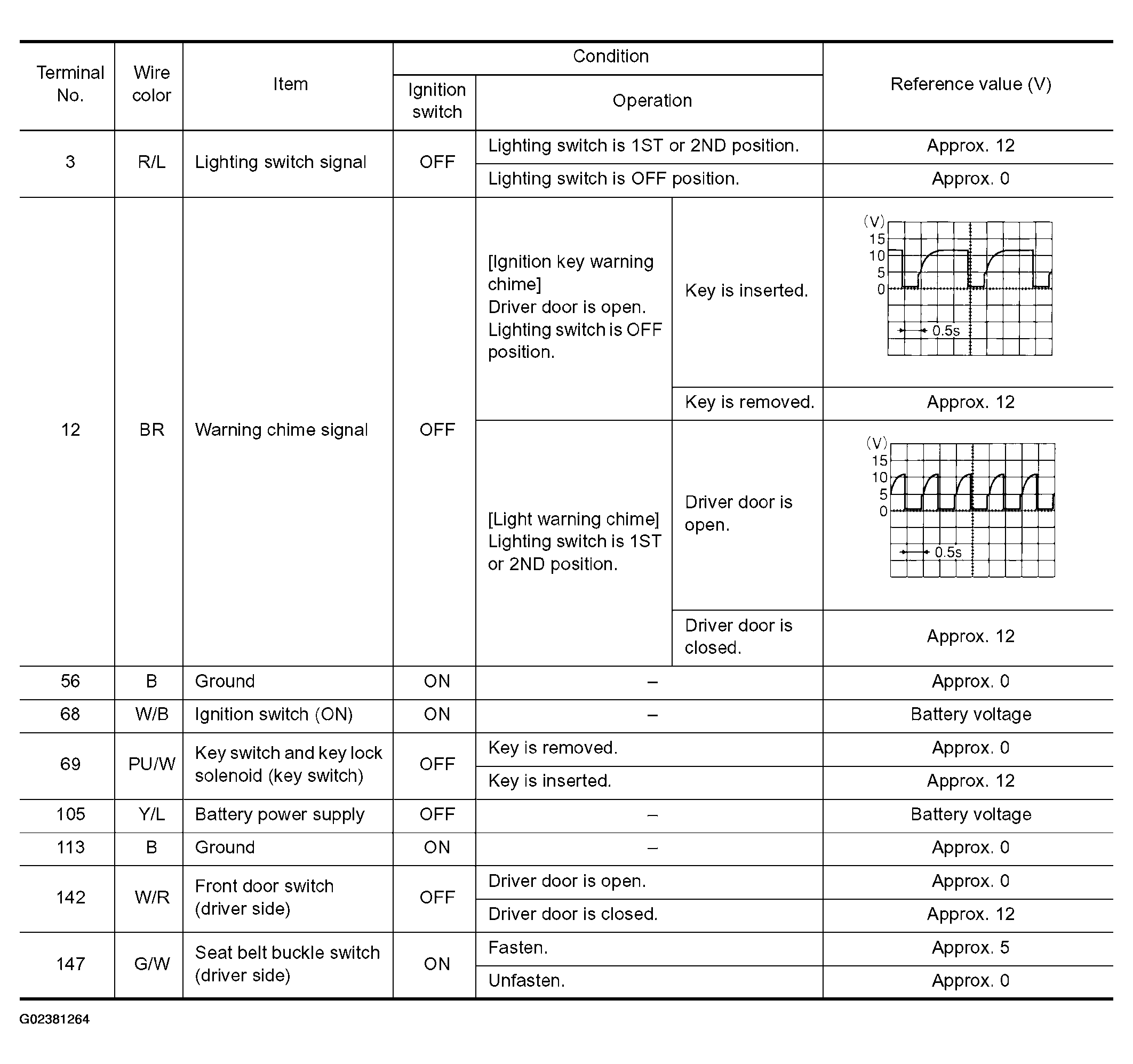

Fig 1: Terminals And Reference Value Chart For BCM Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
