Console Box Assembly
›
Notes
Console Box Assembly: Notes

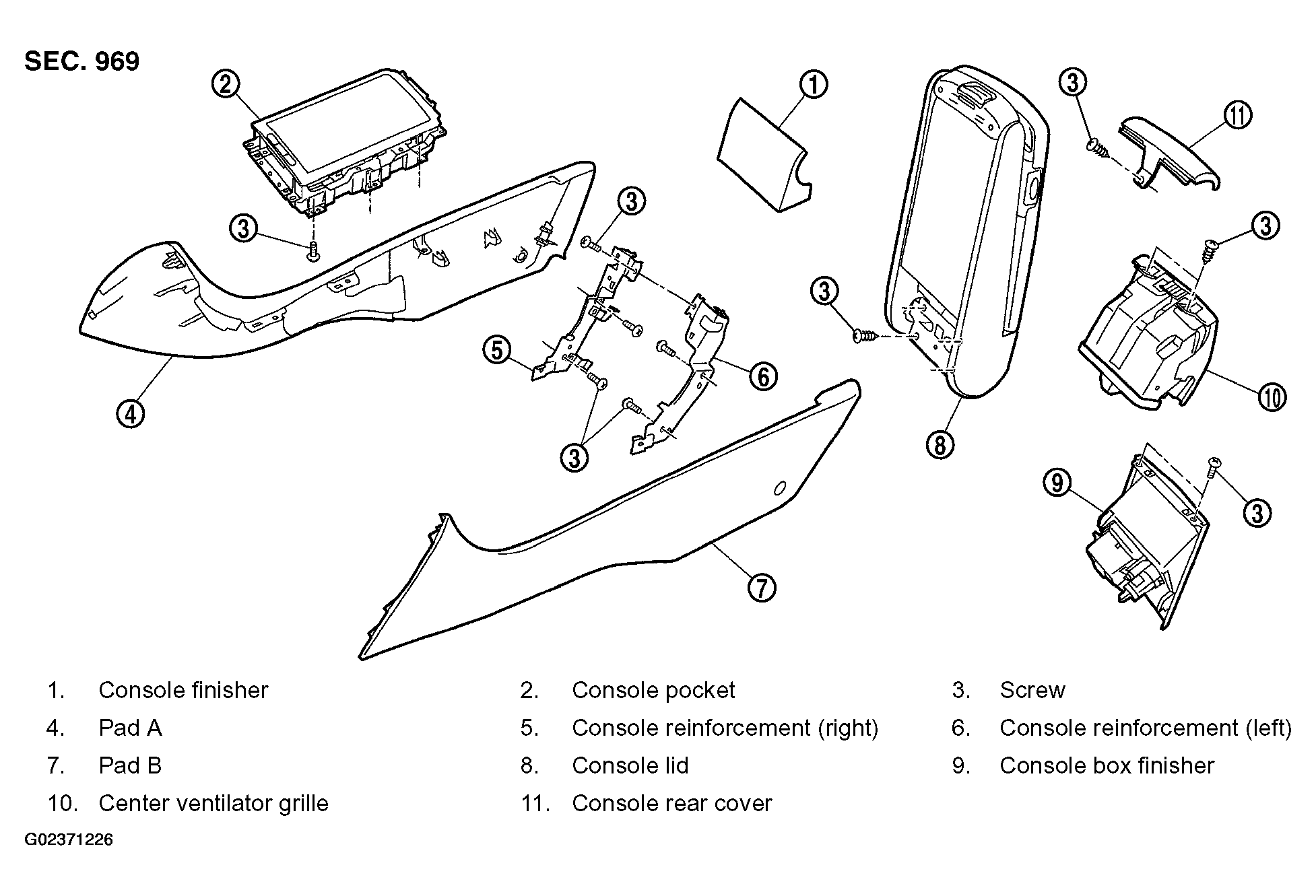

Fig 1: Exploded View Of Console Box Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
