Removal And Installation: Notes

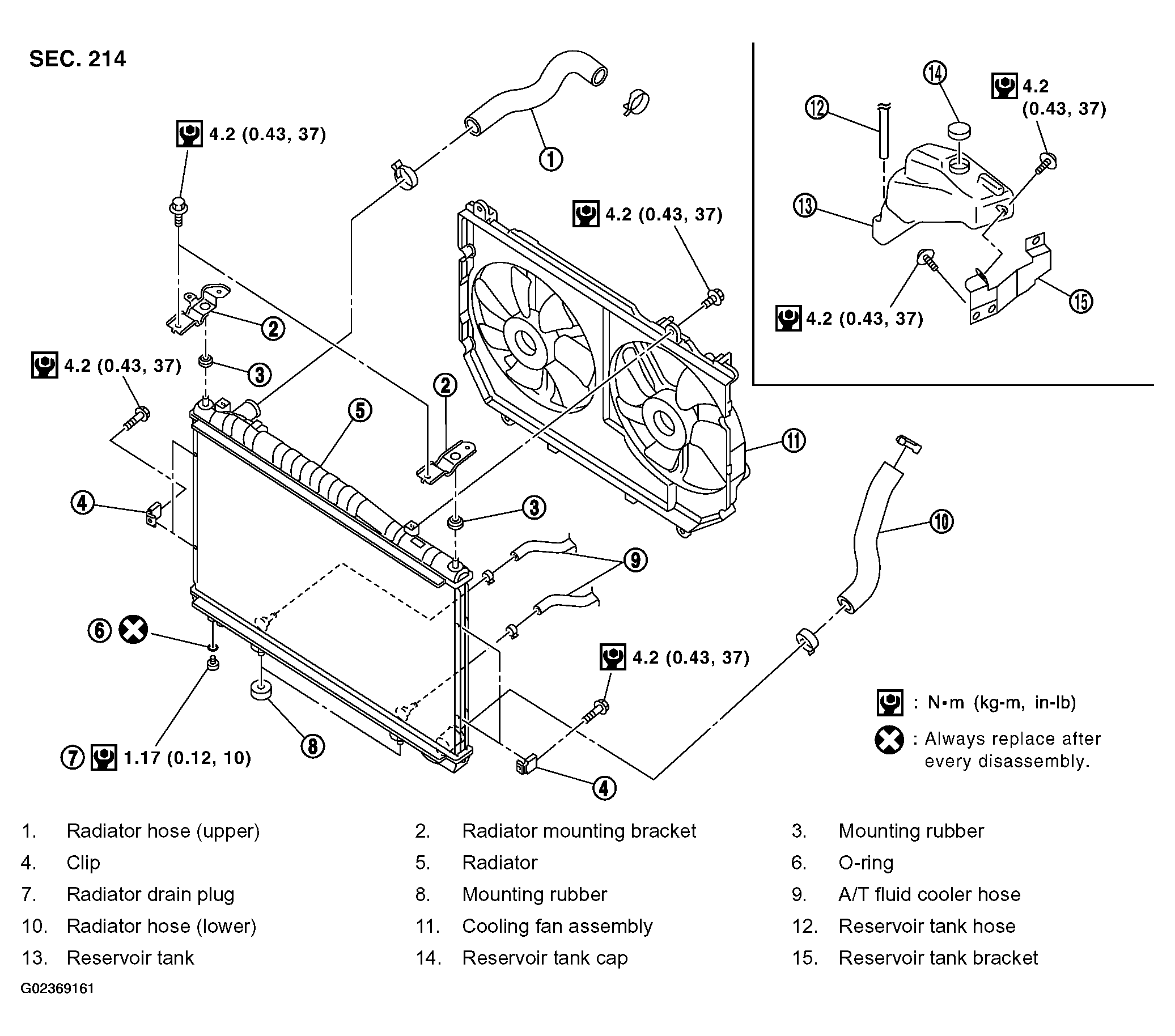

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Do not remove radiator cap when engine is hot. Serious burns could occur from high pressure engine coolant escaping from thermostat housing.
