DTC P0452: EVAP Control System Pressure Sensor
›
On Board Diagnosis Logic
On Board Diagnosis Logic
NOTE:
If DTC P0452 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to
DTC P1229 SENSOR POWER SUPPLY
.

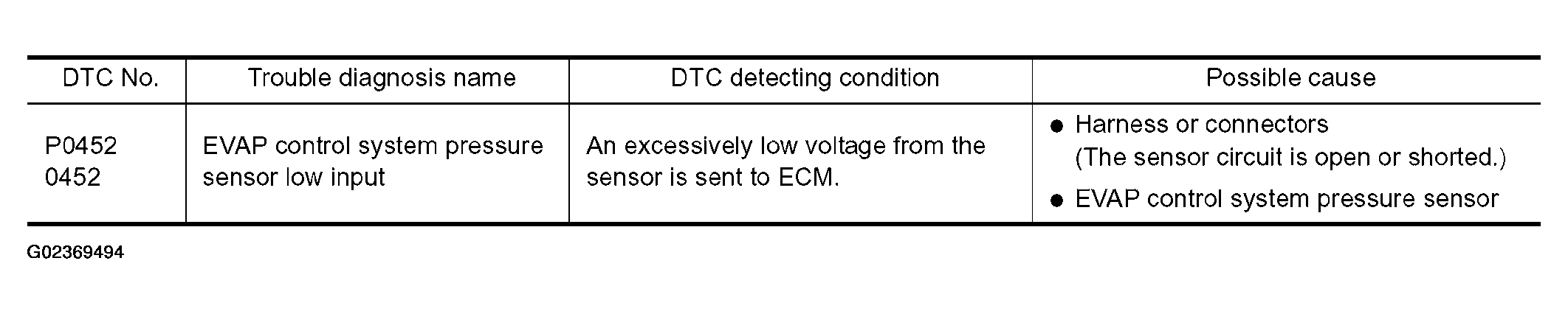

Fig 1: DTC Detecting Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
