On Board Diagnosis Logic

The MIL will not light up for this diagnosis.

NOTE: If DTC P0550 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.

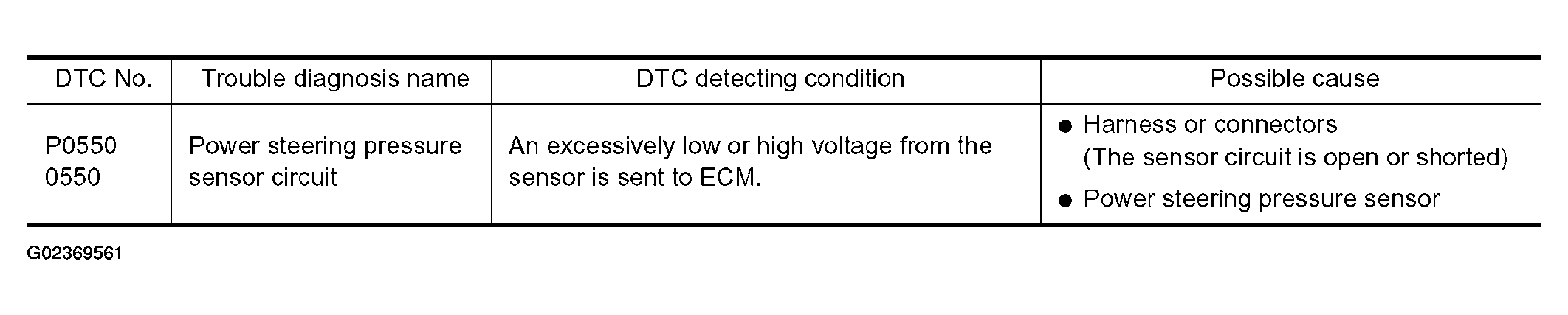

Fig 1: DTC Detecting Condition

Courtesy of NISSAN MOTOR CO., U.S.A.
