With CONSULT-II

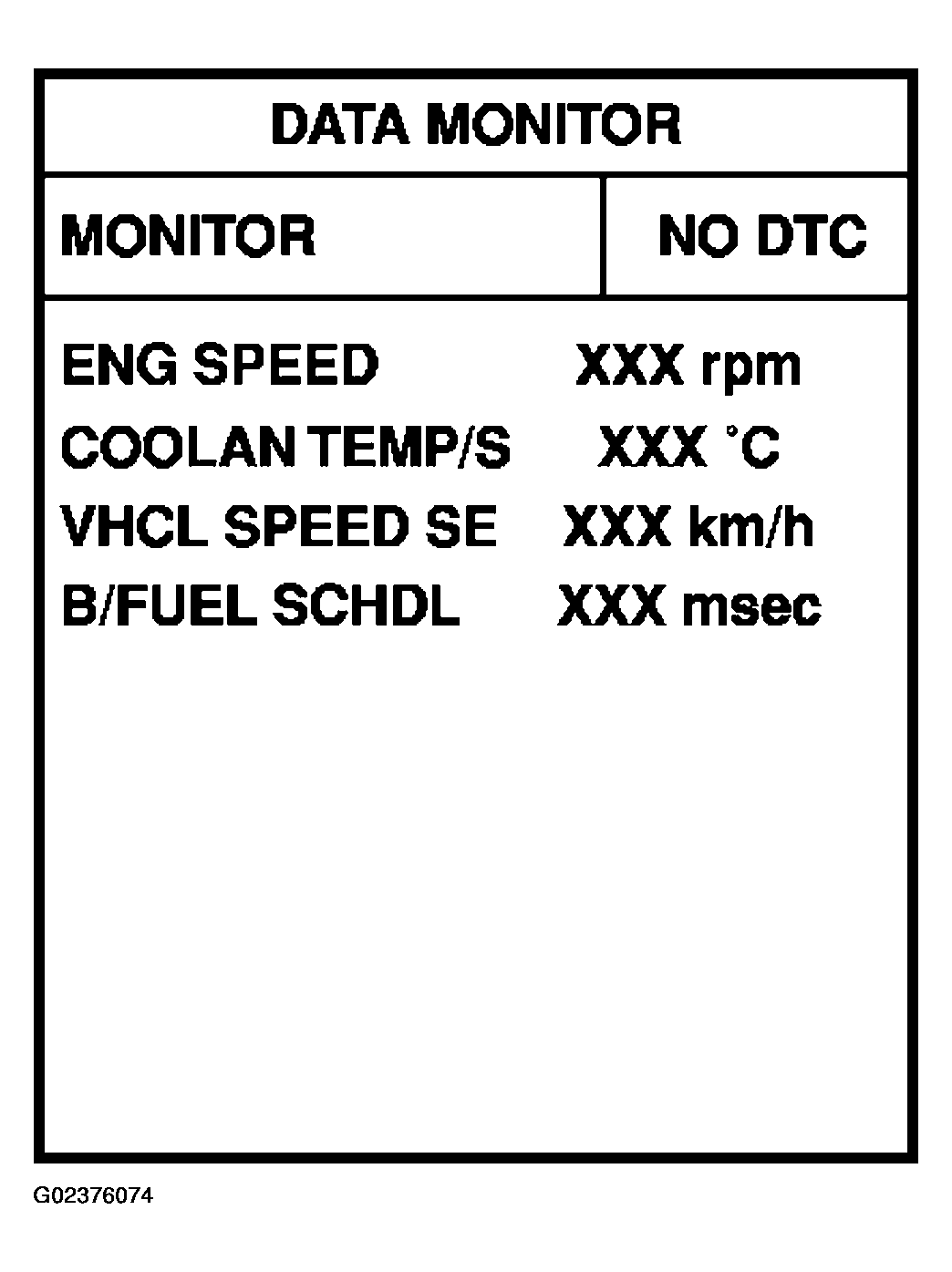

- Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
- Make sure that "COOLAN TEMP/S" indicates less than 70°C (158°F). If not, cool down the engine.
- Start engine.
- Hold vehicle at the following conditions for 12 seconds.VEHICLE CONDITIONS
ENG SPEED 1, 100 - 2, 450 rpm VHCL SPEED SE More than 70 km/h (43 MPH) B/FUEL SCHDL 1 - 10 msec Selector lever Suitable position - If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
