With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Select "Service $01" with GST.
  3. Check the mass air flow sensor signal with "Service $01".
  4. Check for linear mass air flow sensor signal value rise in response to increases to about 4, 000 rpm in engine speed.
  5. If NG, go to  " DIAGNOSTIC PROCEDURE  ".

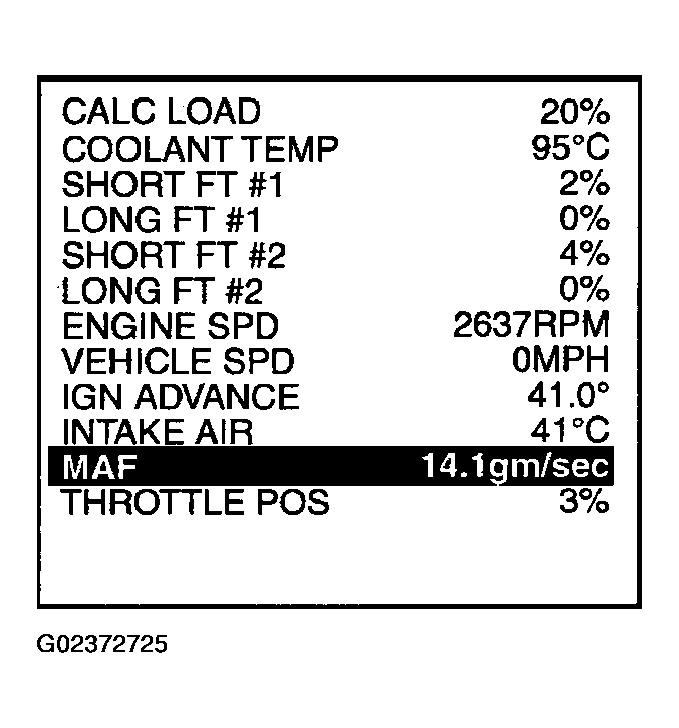

    Fig 1: Function Display
    G02372725Courtesy of NISSAN MOTOR CO., U.S.A.
