Engine Control System - Introduction
›
Air Conditioning Cut Control
›
Input/Output Signal Chart
Input/Output Signal Chart

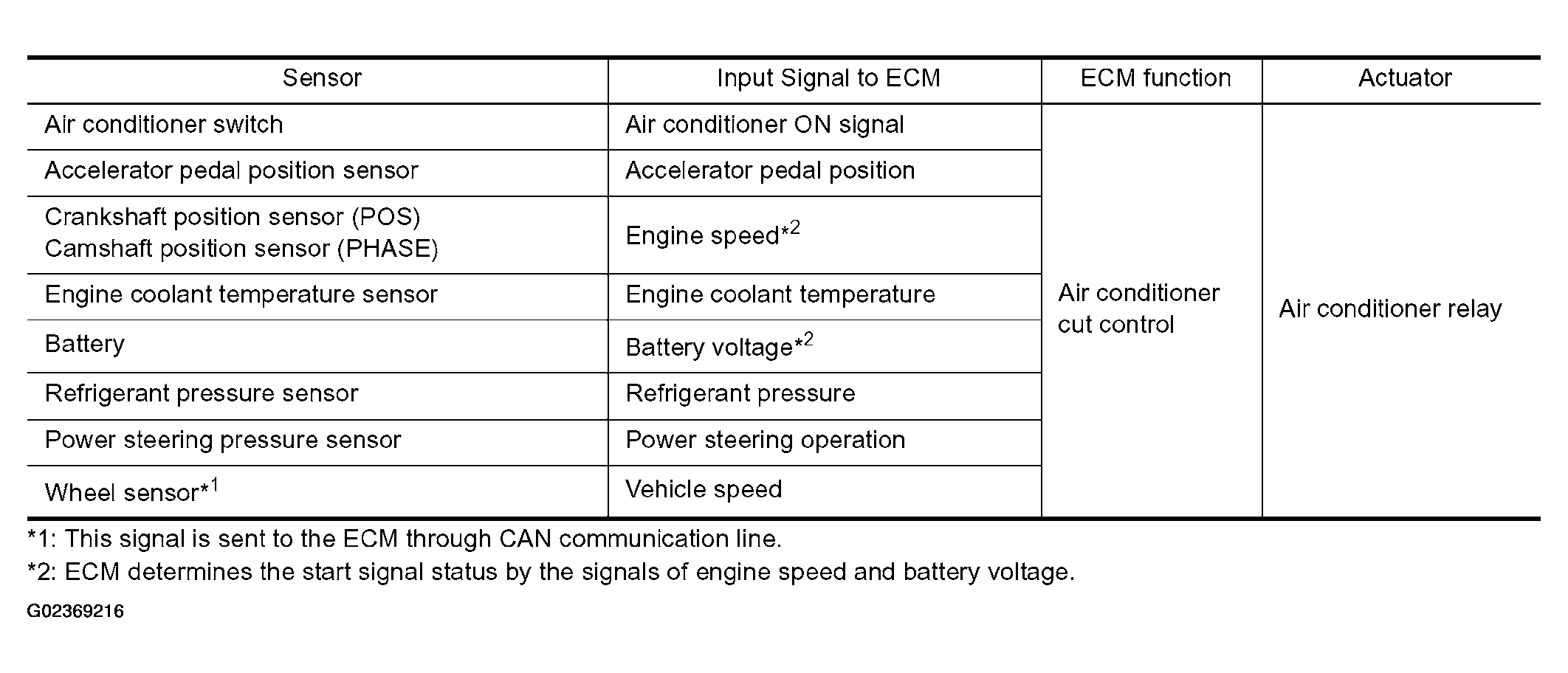

Fig 1: Air Conditioning Cut Control - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
