Method A

  1. Attach timing light to loop wire as shown.
  2. Check ignition timing.

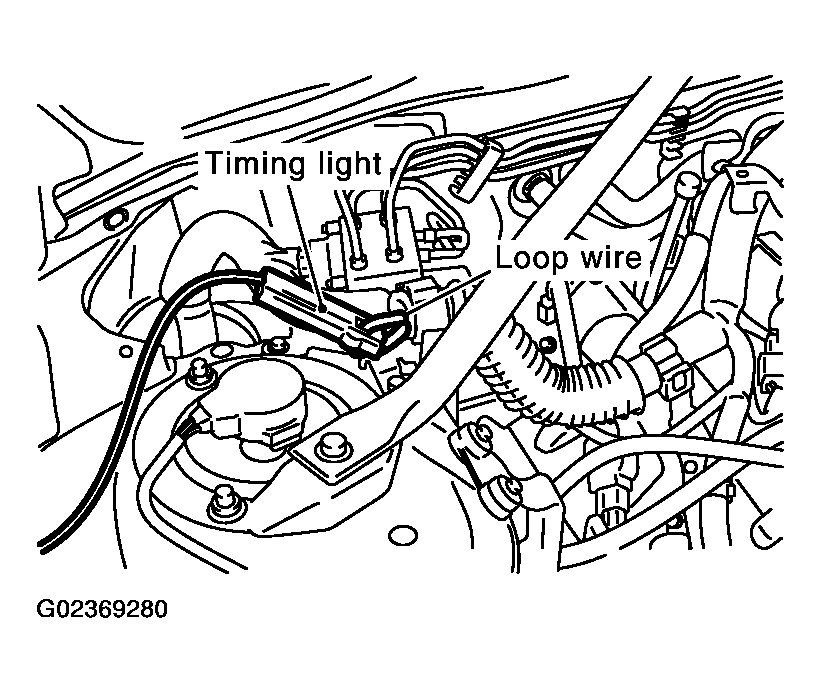

    Fig 1: Attaching Timing Light To Loop Wire
    G02369280Courtesy of NISSAN MOTOR CO., U.S.A.
