Method B
Method B
Remove ignition coil No. 1.

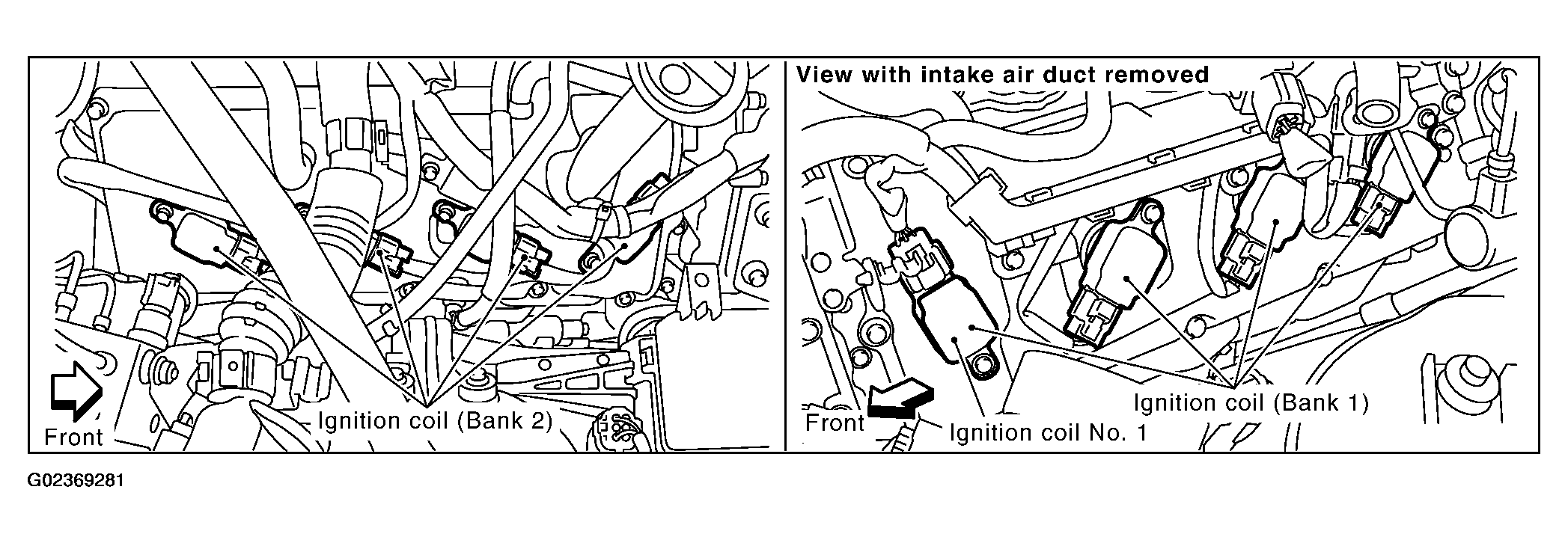

Fig 1: Removing Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect ignition coil No. 1 and spark plug No. 1 with suitable high-tension wire as shown, and attach timing light clamp to this wire.

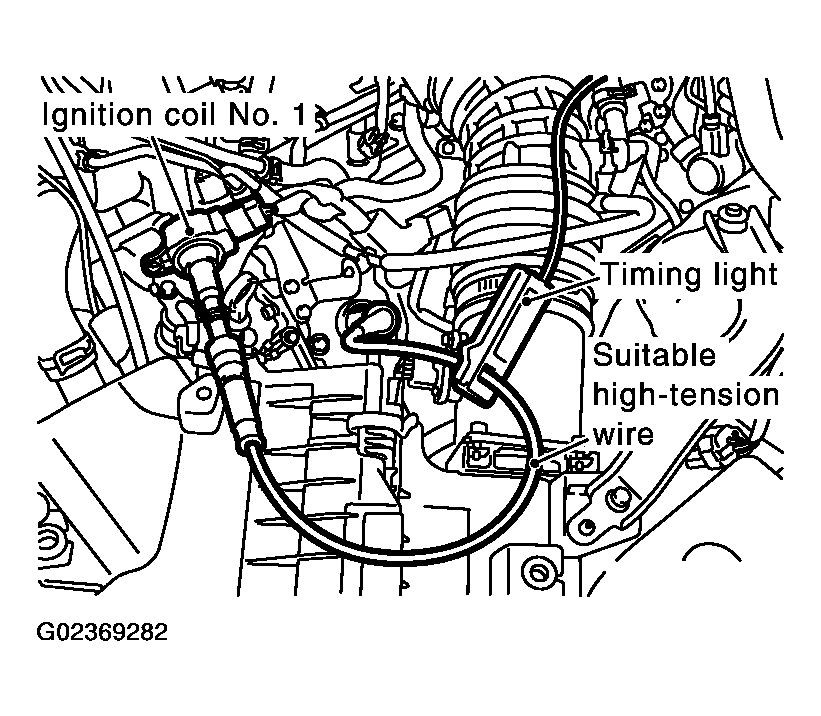

Fig 2: Connecting Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.

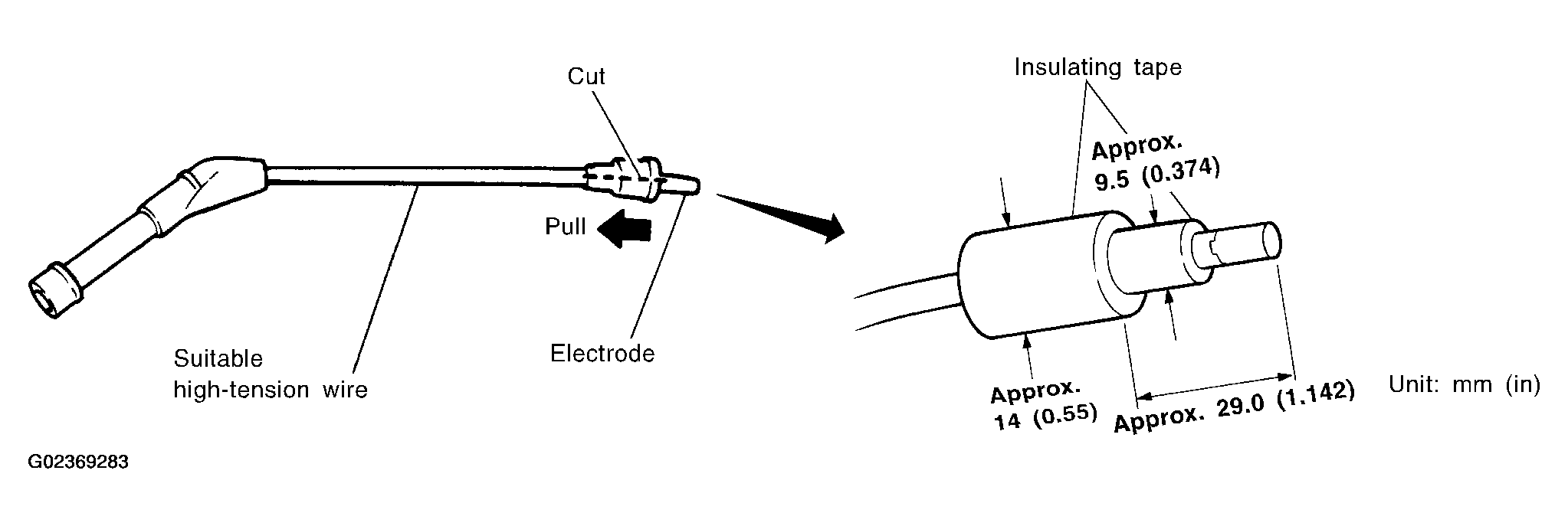

Fig 3: Identifying Suitable High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.

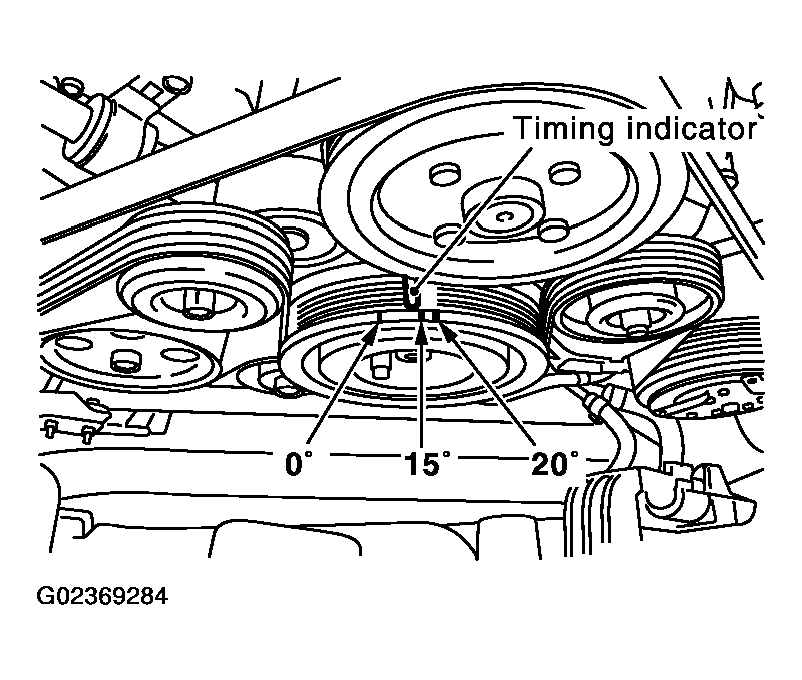

Fig 4: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
