Engine Control System
›
Electronic Ignition (El) System
›
Input/Output Signal Chart
Input/Output Signal Chart

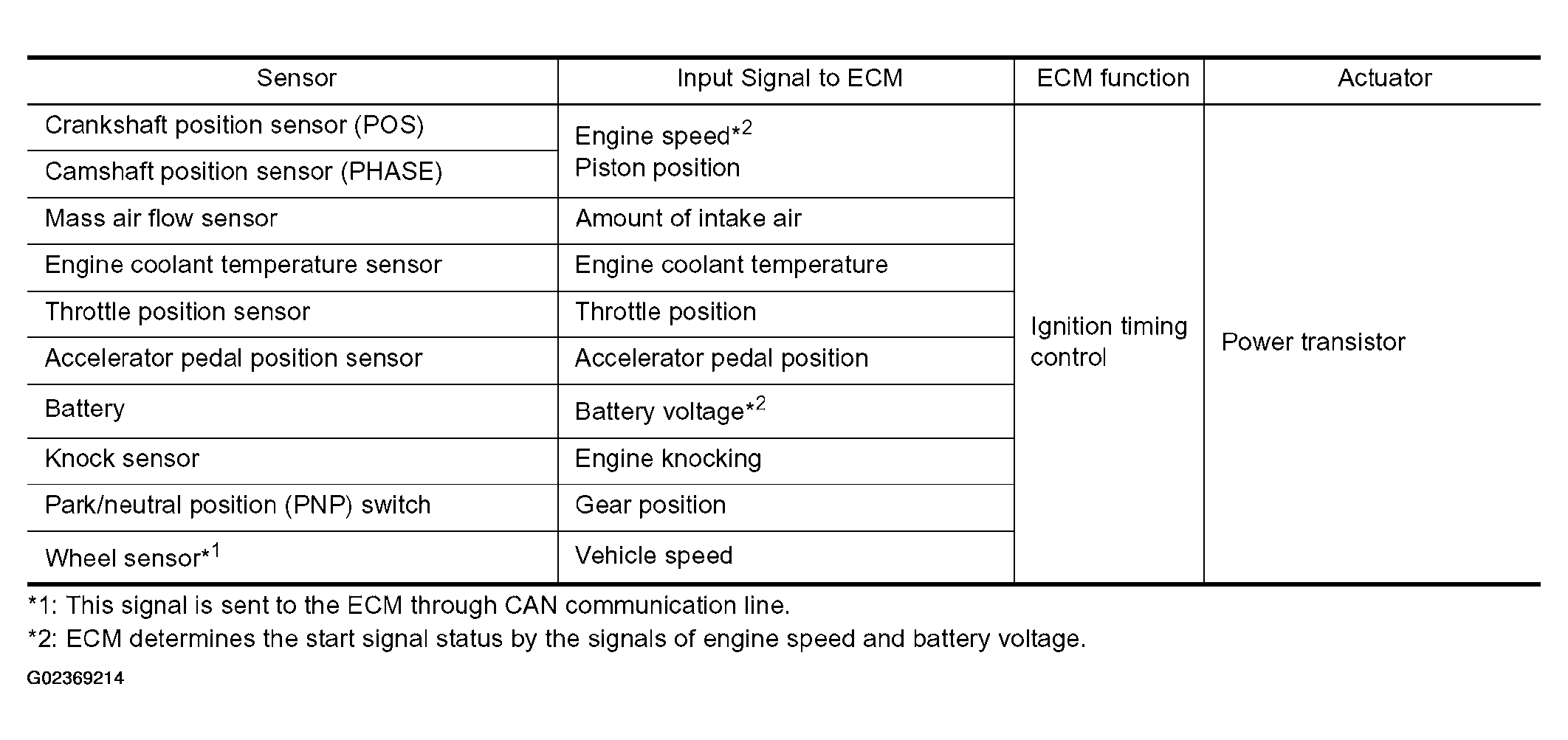

Fig 1: Electronic Ignition (El) System - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
