System - Engine Mechanical & Other

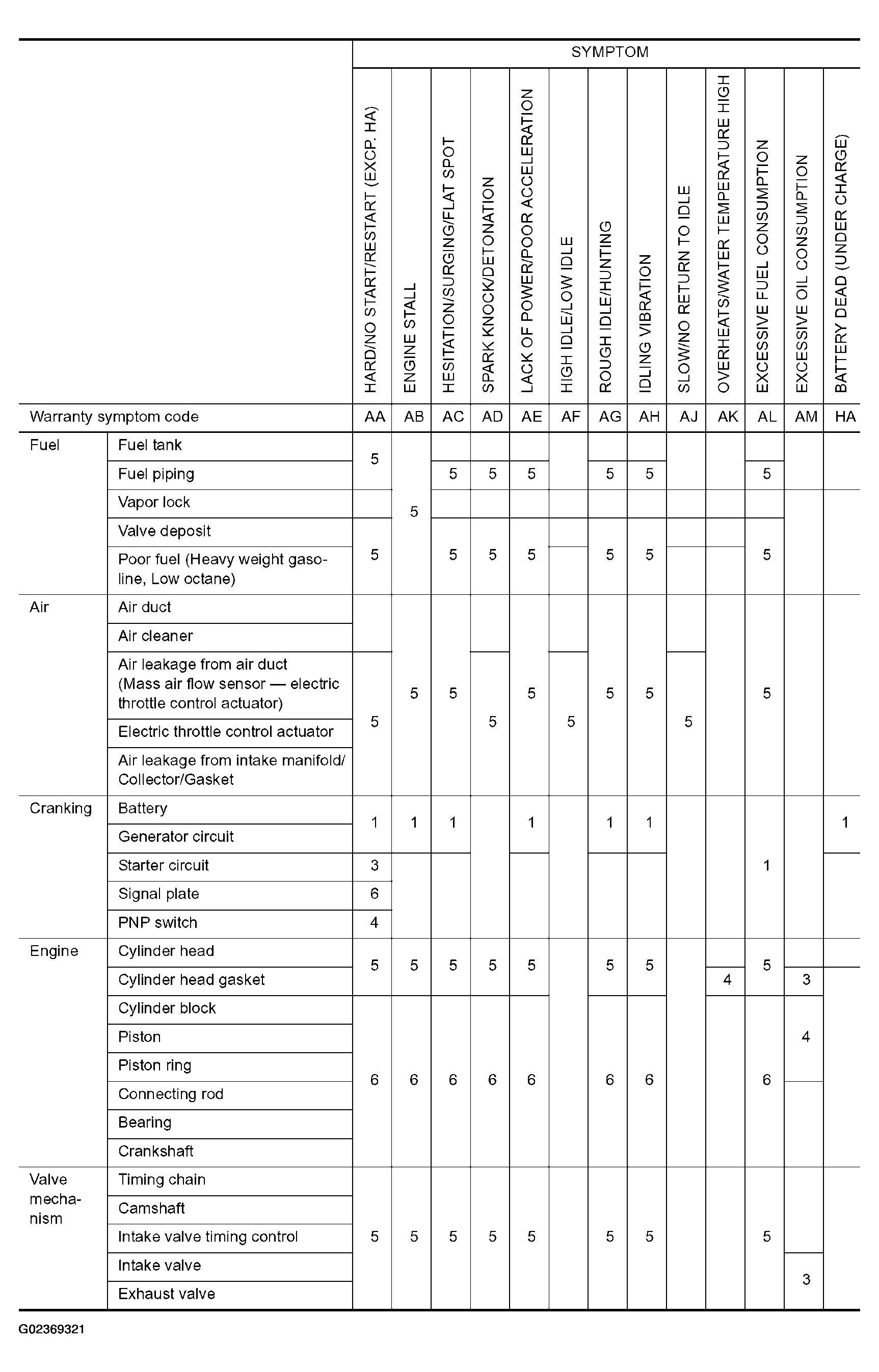

Fig 1: DTC Troubleshooting - Engine Mechanical (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

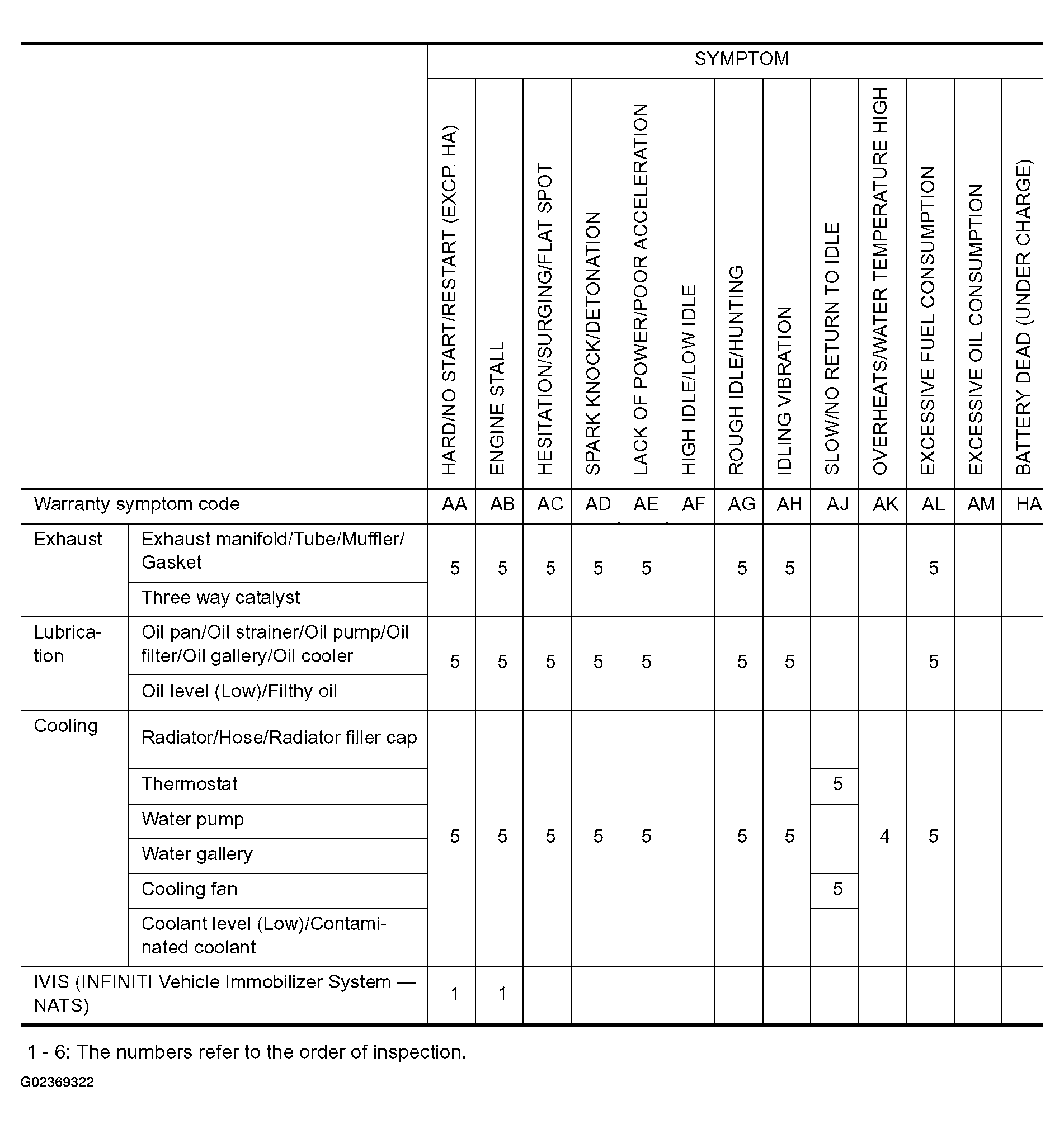

Fig 2: DTC Troubleshooting - Engine Mechanical (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
