Hydraulic Line: Components

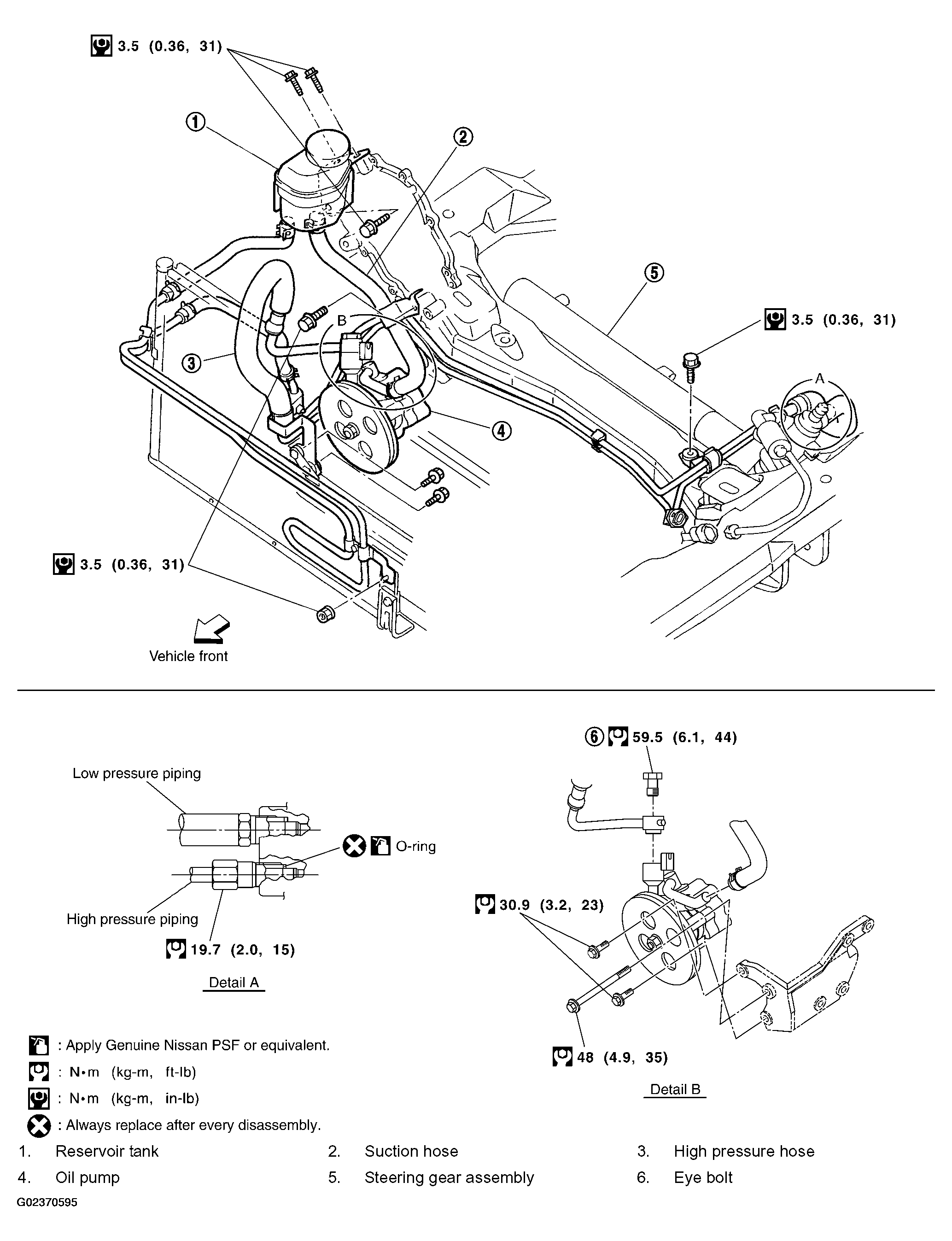

Fig 1: Hydraulic Lines Components With Torque Specification
G02370595Courtesy of NISSAN MOTOR CO., U.S.A.
