Removal and Installation: Component

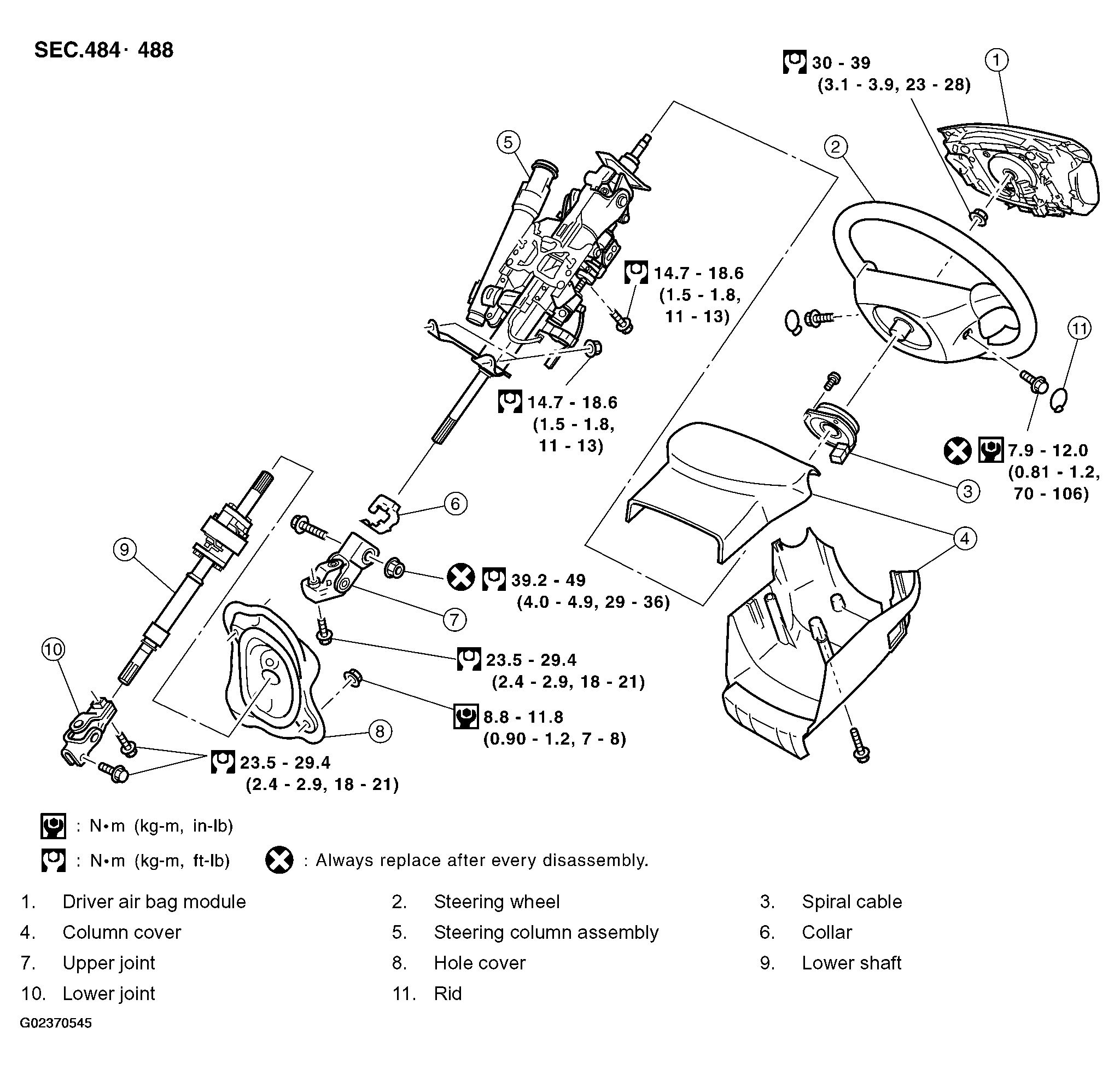

Fig 1: Exploded View Of Steering Column Component With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

• Care must be taken not to give axial impact to steering column assembly during removal and installation.
• Care must be taken not to move steering gear during removal of steering column assembly.
