Oil Channel
Oil Channel

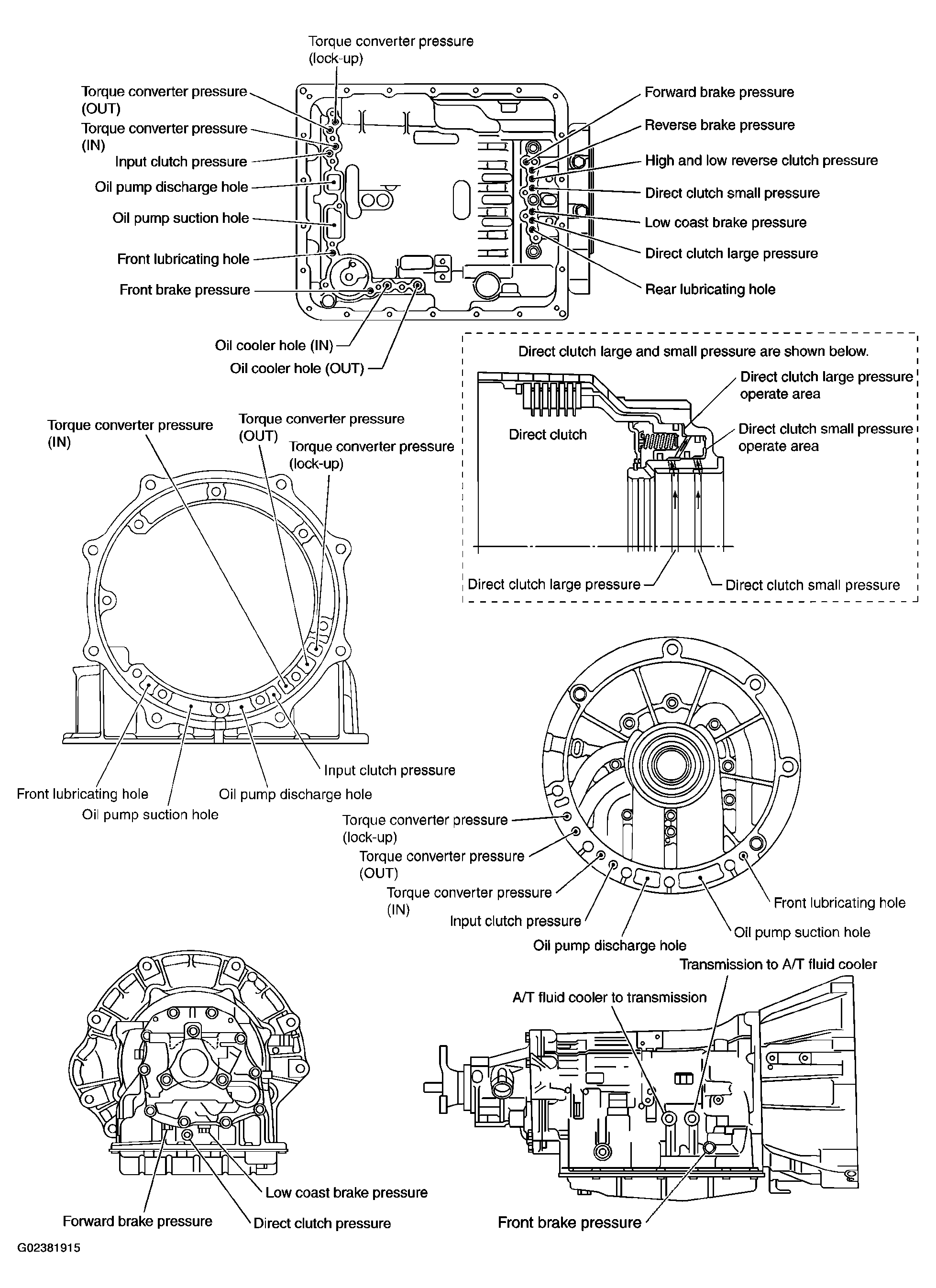

Fig 1: [Oil Channel Chart]
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
