Limit Switch Circuit Check Front RH

  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window motor RH connector D105 terminal 15 and ground.

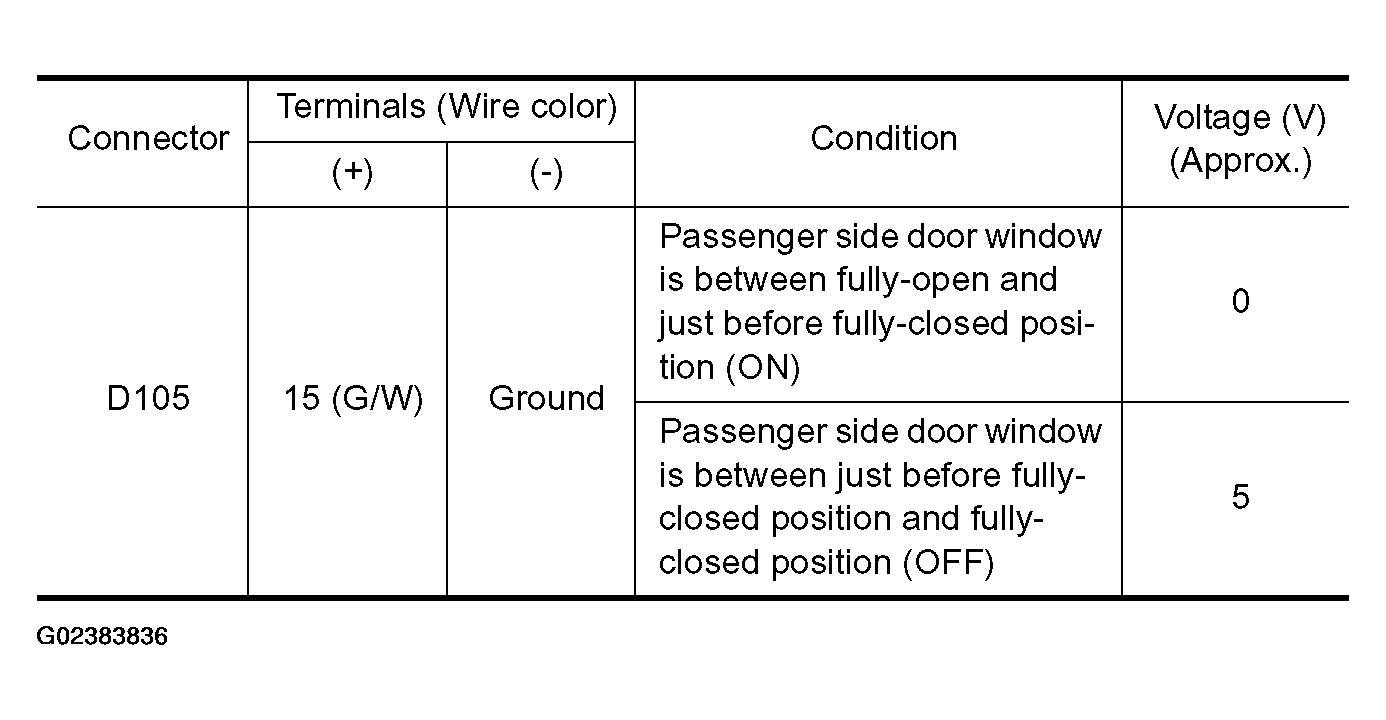

      Fig 1: Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 15 Voltage Specification
      G02383836Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 2: Checking Voltage Between Power Window Motor RH Connector D105 Terminal 15 And Ground
      G02383837Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Limit switch circuit is OK.
    2. NG: GO TO 2.
  2. CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Turn ignition switch ON.
    4. Check voltage between front power window motor RH connector D104 terminal 5 and ground.
      1. 5 (G/W) - Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 3.
    2. NG: GO TO 5.
    Fig 3: Checking Voltage Between Front Power Window Motor RH Connector D104 Terminal 5 And Ground
    G02383838Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Check continuity between front power window motor RH connector D104 terminal 6 and ground.
      1. 6 (W/B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace front power window motor RH.
    2. NG: GO TO 4.
    Fig 4: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 6 And Ground
    G02383839Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS CONTINUITY
    1. Disconnect power window and door lock/unlock switch RH.
    2. Check continuity between front power window motor RH connector D104 terminal 6 and power window and door lock/unlock switch RH connector D105 terminal 3.
      1. 6 (W/B) - 3 (W/B): Continuity should exist.

    OK or NG

    1. OK: Replace power window and door lock/unlock switch RH.
    2. NG: Repair or replace harness.
    Fig 5: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 6 And Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 3
    G02383840Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminal 15 and front power window motor RH connector D104 terminal 5.
      1. 15 (G/W) - 5 (G/W): Continuity should exist.

    OK or NG

    1. OK: Replace power window and door lock/unlock switch RH.
    2. NG: Repair or replace harness.
    Fig 6: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 15 And Front Power Window Motor RH Connector D104 Terminal 5
    G02383841Courtesy of NISSAN MOTOR CO., U.S.A.
