Power Window System: Schematic

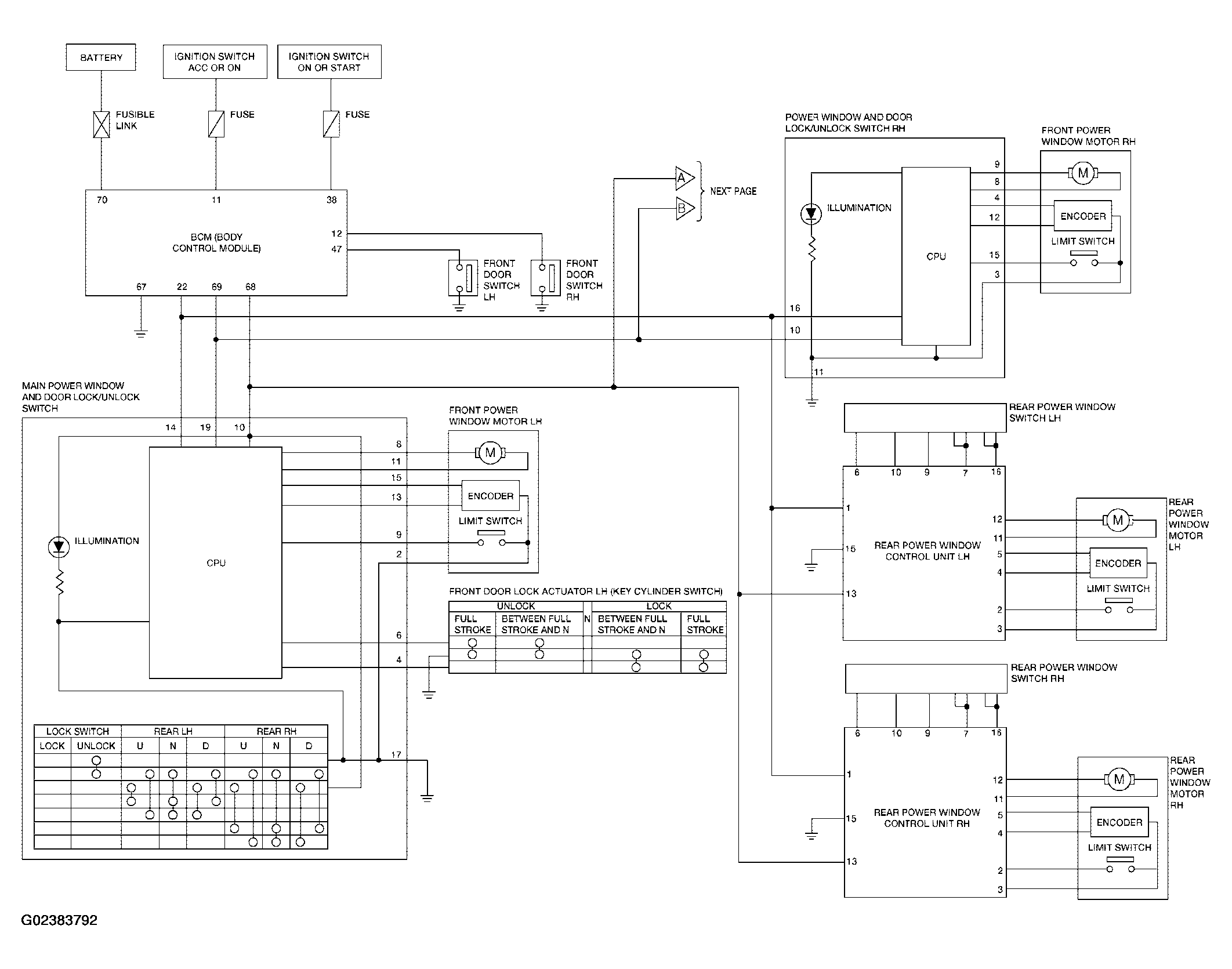

Fig 1: Power Window System Schematic - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

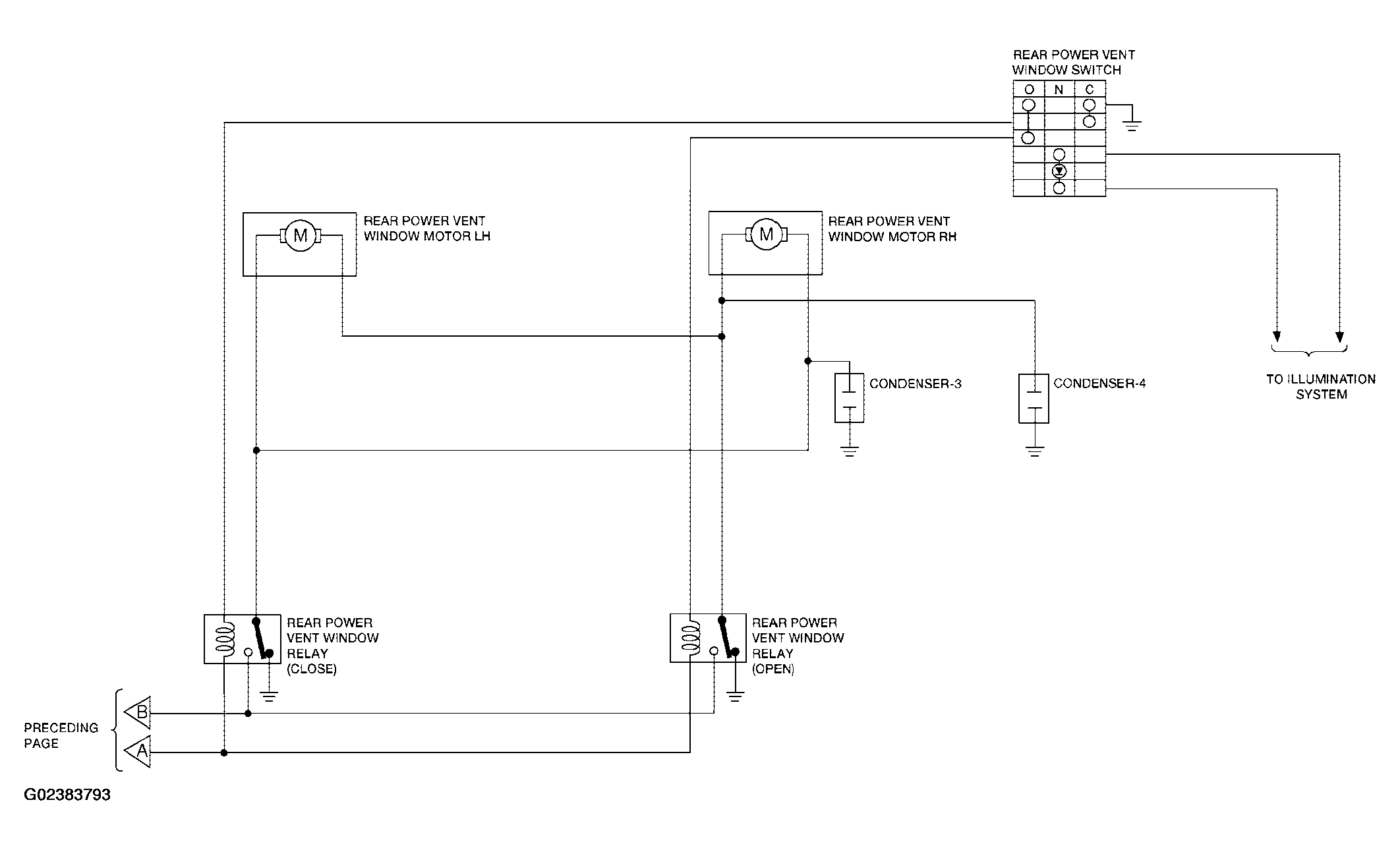

Fig 2: Power Window System Schematic - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
