Service Data And Specification (SDS): Generator

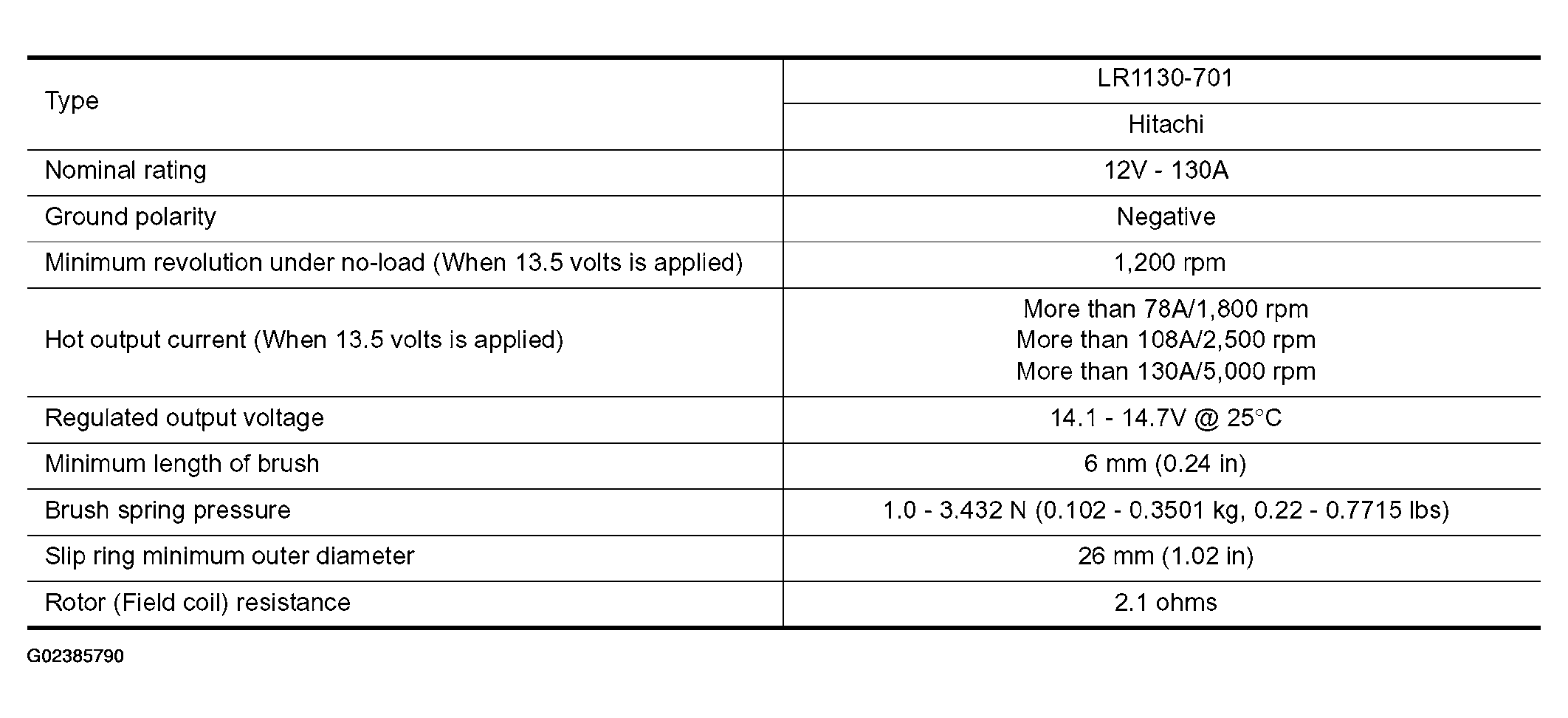

Fig 1: Generator Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
