Terminals And Reference Value For Sonar Control Unit
Terminals And Reference Value For Sonar Control Unit

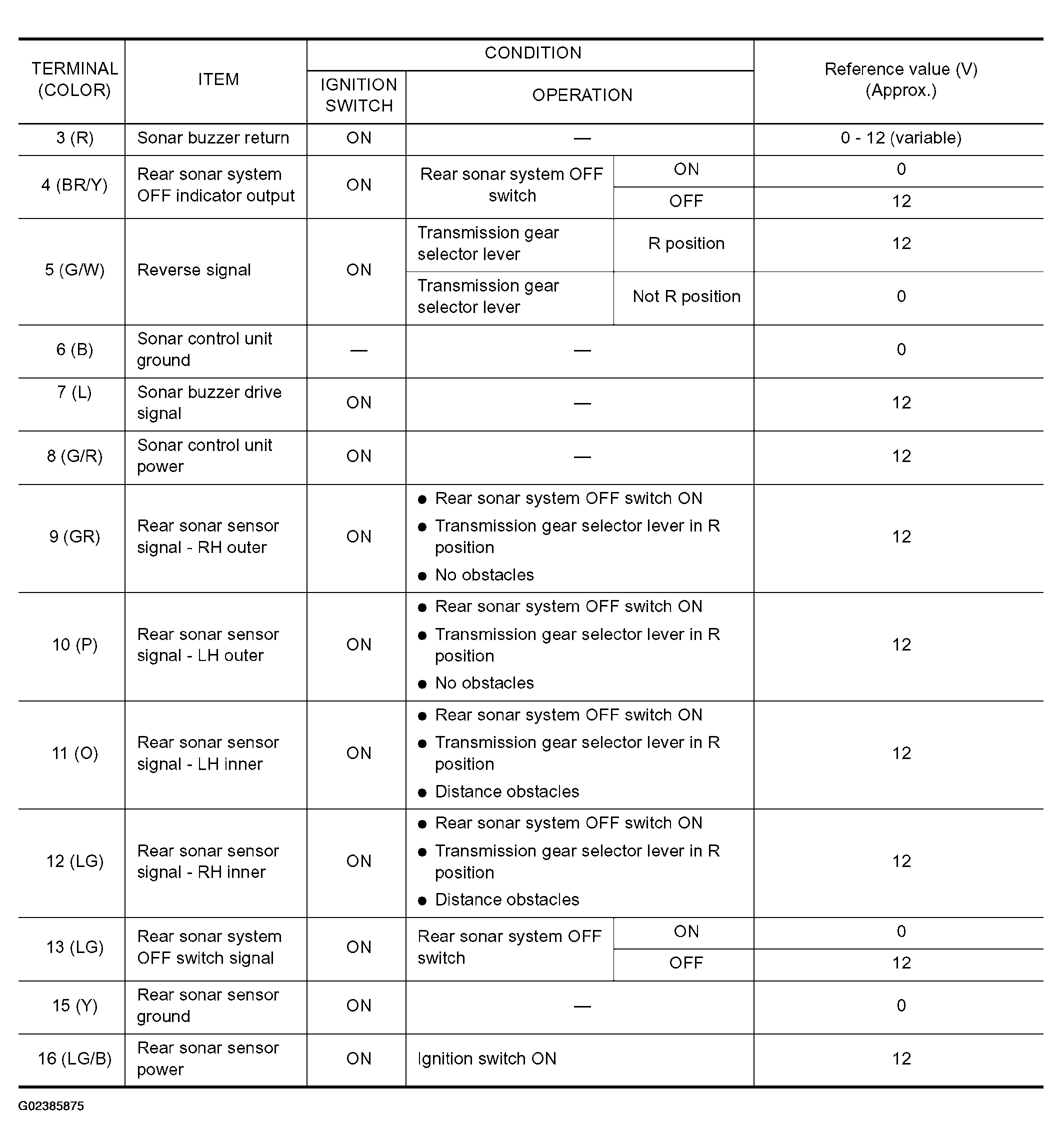

Fig 1: Sonar Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
