On Board Diagnosis Logic

NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".
If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer to "DTC P0500 VSS ".
If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to "DTC P0605 ECM ".

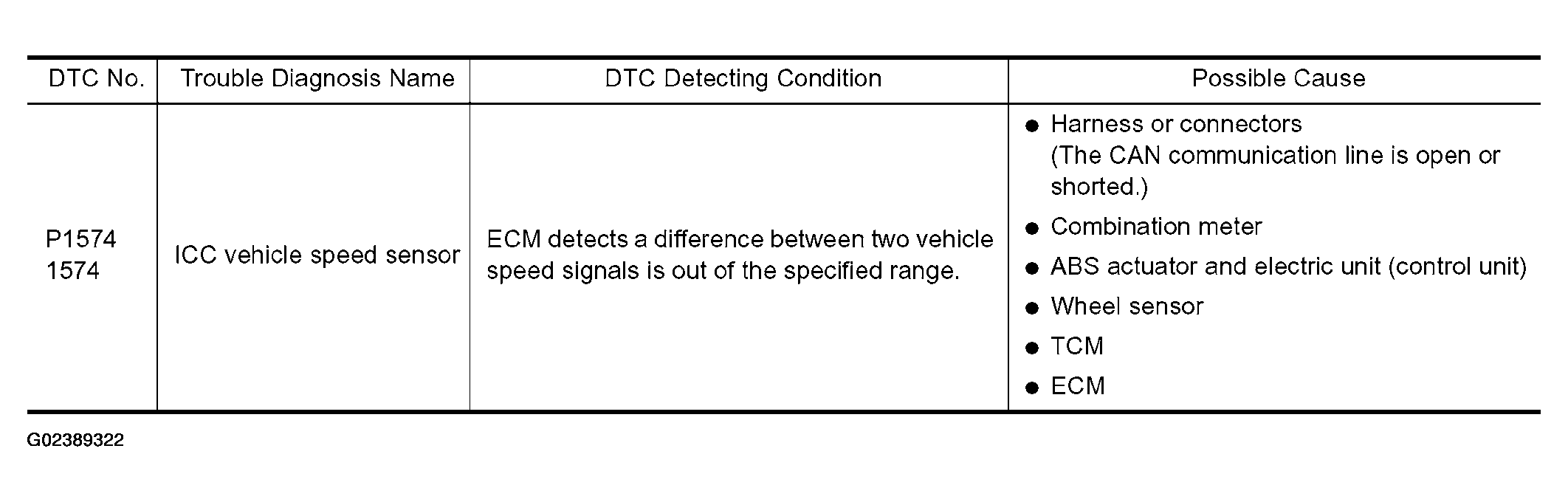

Fig 1: DTC P1574 - On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
