Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
Trouble Diagnosis - Specification Value
›
Diagnostic Procedure
›
Overall Sequence
Overall Sequence

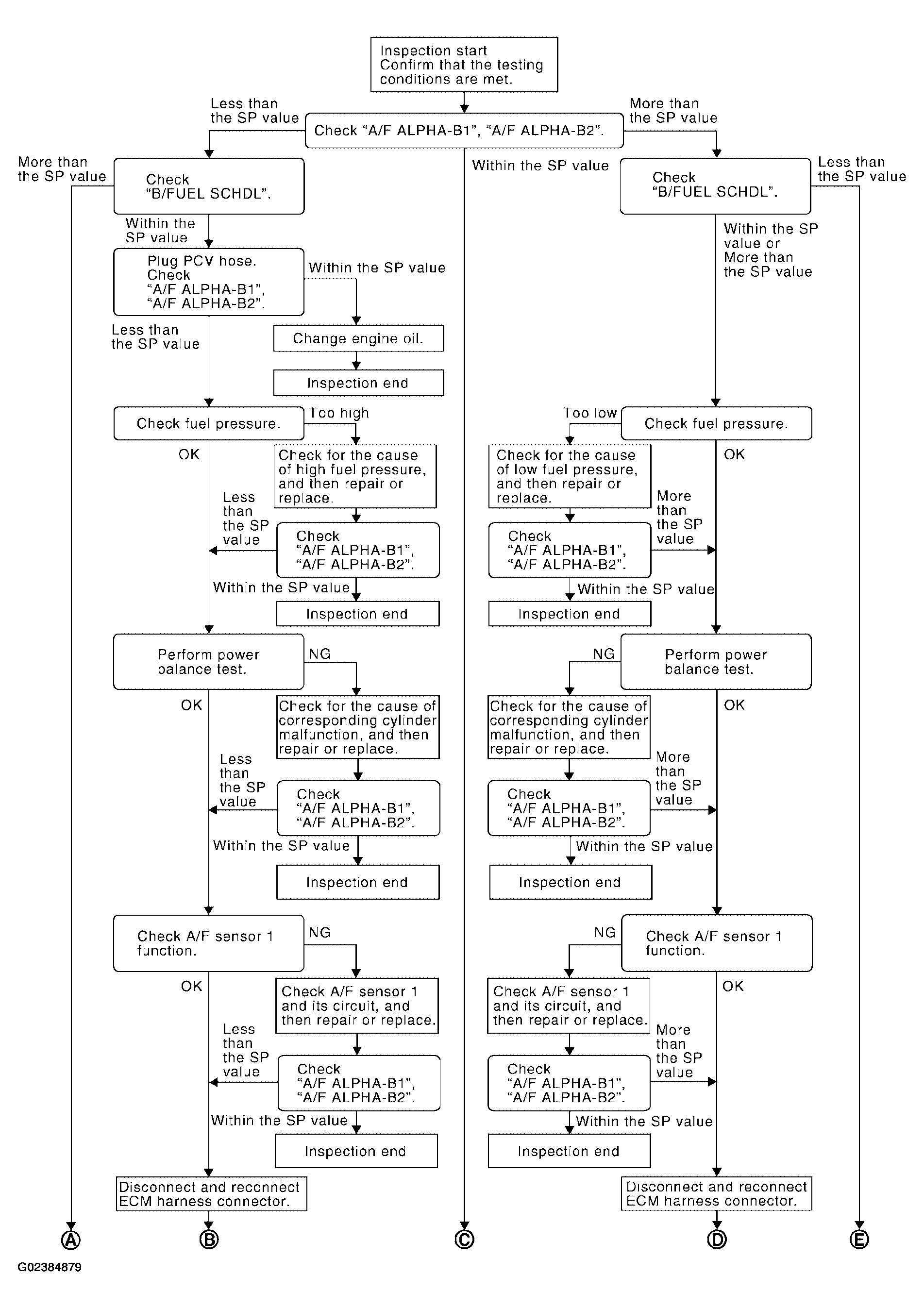

Fig 1: Overall Sequence Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

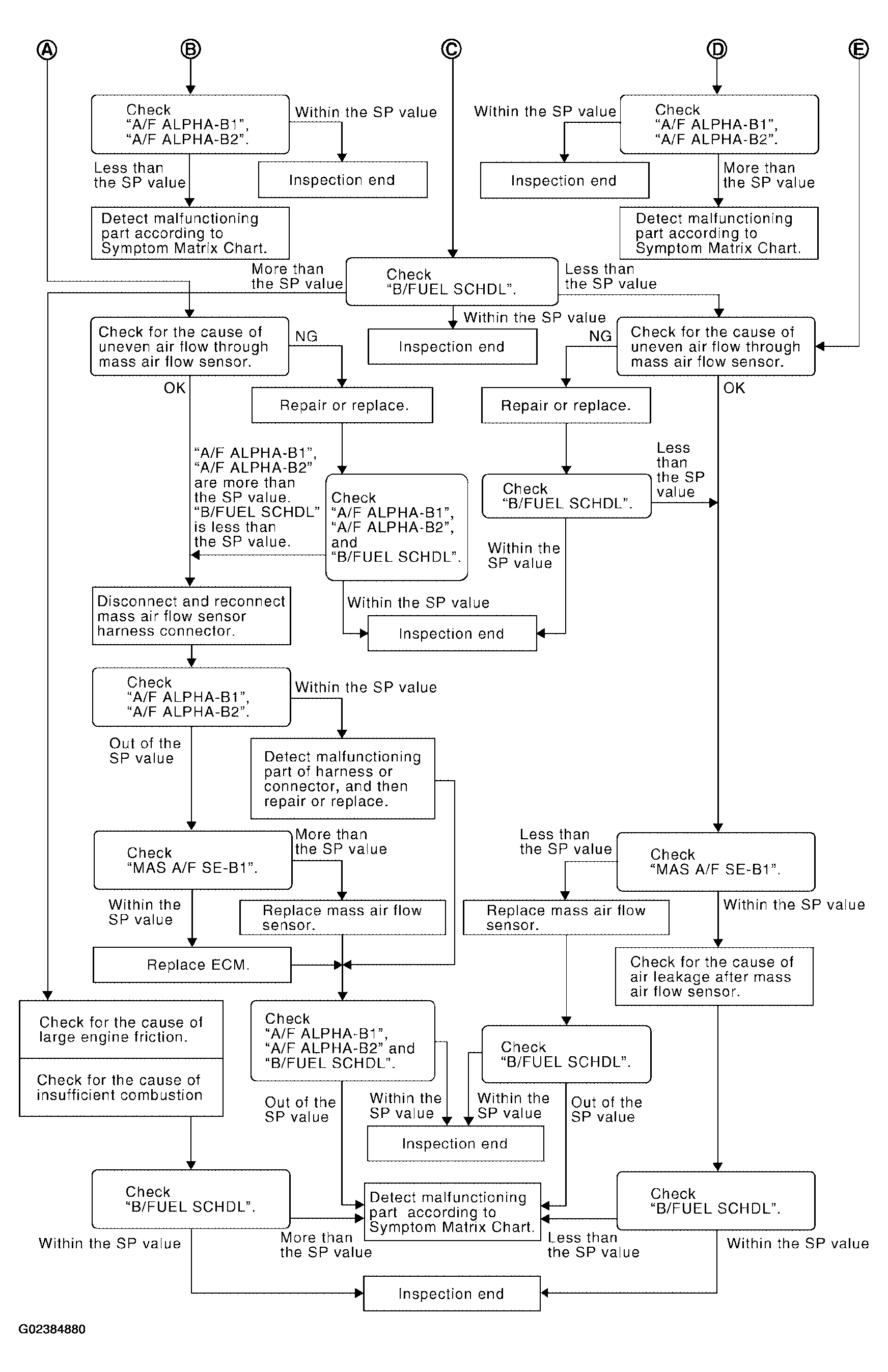

Fig 2: Overall Sequence Flow Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
